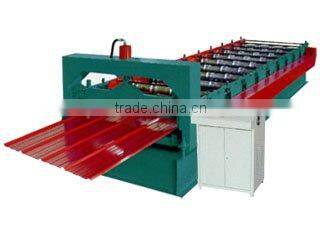

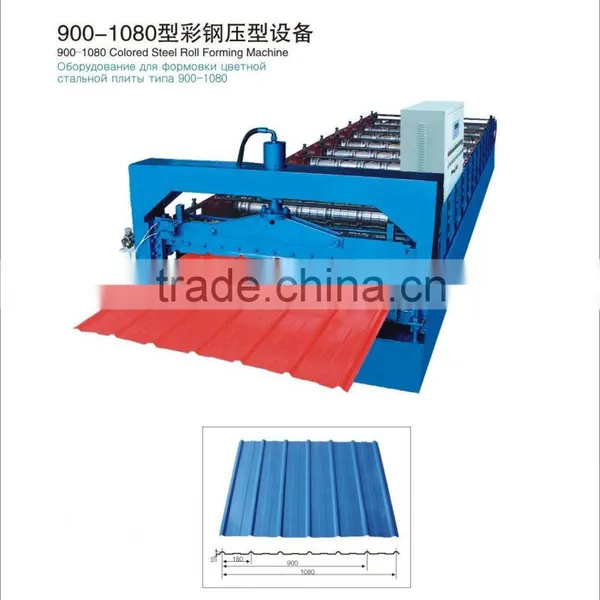

Steel Plate Tile Making Machinery

Steel Plate Tile Making Machinery thumbnail-1
Steel Plate Tile Making Machinery photo-1
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Contact Supplier Request Quote Chat Now
Botou Golden Integrity Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tjianjin newport
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Colored Steel
Use Roof
Production Capacity 8m--12m/min
Place of Origin Hebei, China
Brand Name JCX
Model Number 900
Power(W) 3kw 4kw /7.5 kw
Voltage 220v/380v
Dimension(L*W*H) 6m*1.2m*1.3m
Weight 4t
Certification TUV
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

our product has been exported to many countries and we are able to design and produce all kinds of roll forming machine.

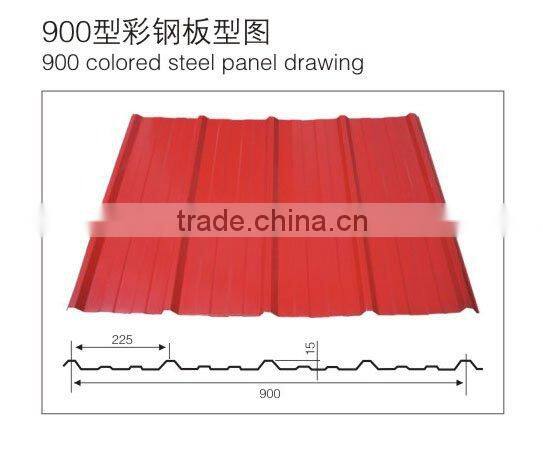

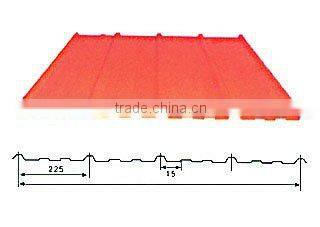

Cover width

Coil width

Wave height

Wave length

usage

900(mm)

1000(mm)

10(mm)

150(mm)

Roof and wall

Main technical parameters:

1. Passive leak: manual up tight, passive leak

2. Leak rack load: 4T

3. Rack: The 250 channel steel welding

4. Forming Machine-driven feeding frame Type: Side roller

5. Forming Machine Type: wall-type chain drive

6. Shaft Diameter:  70 mm

7. Chain: 0.6-inch single-row

8. Forming Motor Power: 3K reducer

9. Forming Machine speed: 10m/min

10. Forming Machine Road Number: 9

11. Roll Material: high quality steel Duan playing pieces

12. Hydraulic station motor: 3kw

13. Hydraulic Pump Station: Gear pump

14. Cutting method: hydraulic shear

15. Scissors film forming material: Cr12

16. Shearing blade Heat treatment: HRC58 ° -60 °

17. Rolling thickness :0.3-0 .8 mm

18. Material Expand Width: 1000mm

19. Length Length Accuracy: ± 2mm

20. The computer use of PLC, Taiwan Delta

21. Computer Operator



Equipment manufacturing cycle: 3 days
