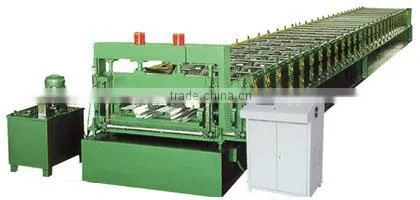

Help CenterDeduction Trough Roll Forming Machine
Related Products
Specifications
floor decking forming machine:1.Beautiful appearance;
2. a reasonable price;
3. complete service
Our floor deck roll forming machine :
Pressed Steel Type |
688 |
usage |
||
Effective coverage width |
688mm |
|||
Expand Width (mm) |
1000(mm) |
steel bearing plate floor |
||
Thickness (mm) |
0.8 |
1.0 |
1.2 |
|
Cross-section from the inertia (cm4 / m) |
91.62 |
119.38 |
142.01 |
|
Cross-section to withstand the distance (cm3 / m) |
23.46 |
30.58 |
36.98 |
|
Specifications
1. auto-tensioning coil inside the machine
a. mounted roll diameter
b. Maximum width 1000mm mounted volumes
c. Maximum load weight: 6000kg
d. Hydraulic Power: 3kw
e. Motor Power: 3kw
f. Cylinder diameter: 120mm
g. Working Pressure: 10Mpa
2 forming the host
a. Rack row floor: 24 rows: 24 steps
b. Spindle material 45 # steel modulation processing, diameter 80mm. Material 15GCR roller bearing steel processing HRC58-60 °.
d. Main motor power: 22kw
e. rolling speed :9-12m / min
f. stent 350 # steel welding jobs
g. Roll the surface of hard chromium plating thickness of 0.05mm.
3 Hydraulic Cutter
a. Blade material: Cr12 quenched
b. cut off system: the use of advanced hydraulic drive, forming automatically feet cut off, no deformation, no waste, a higher safety factor (host stop off)
4 Electronic Control System
a. OSD: The Taiwan and Taiwan reached 5.7-inch touch screen
b. the host computer (PLC): use of Taiwan and Taiwan reached DVP14ES
c. encoder: The South Korean Autonics ENC-1-1-1t-24

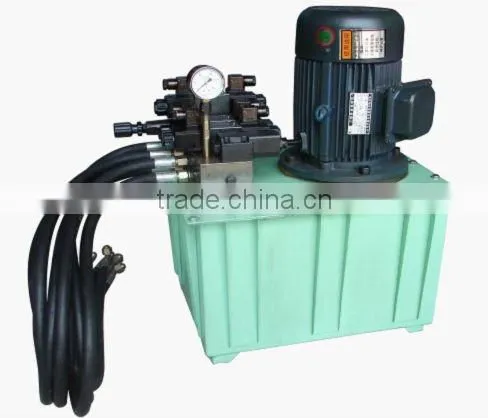

5 hydraulic system
a. use of Taiwan's advanced hydraulic system
b. Power: 4KW
