Hot sale double layer roll forming machine Customize Machine
All the informations here including the specifications and the product pictures are based on the machine that we've export lately
Please have a look for the reference.

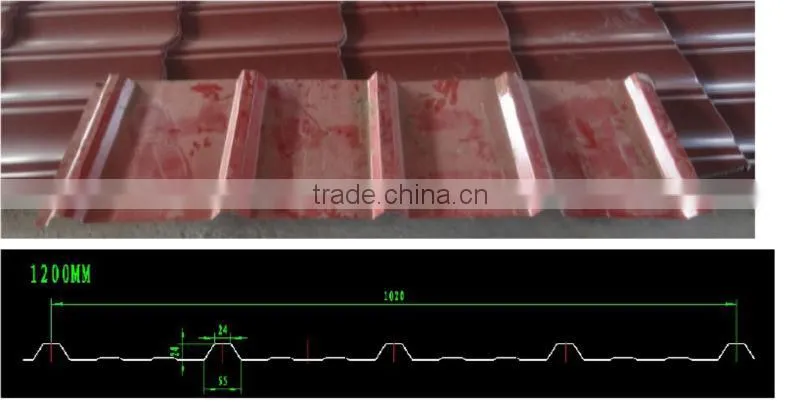

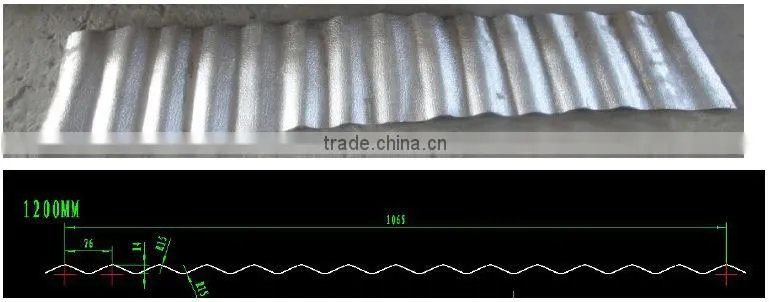

1. Commonly Used Drawings
We are not only offer customers a wonderful machine for making, but also the abundant experience, precision making, stable automatic manufacture by hydraulic power, hi-tech control system, and our enthusiasm.
2.Machine parameters
1. Rack: Using 300H steel welding
2. Forming Machine-driven feeding frame forms: lateral slide-style
3. Forming Machine Type: wall-type chain drive. Wall thickness of 16 mm.
4. Shaft Diameter: 75 mm
5. Chains: 1.5 inch single-row
6. Forming Motor Power: 5.5KW
7. Forming Machine speed: 8-15m/min
8. Forming Machine Road Number: 13 stations/14 stations
9. Roll Material: high quality 45 # steel Duan playing pieces
10. Hydraulic station motor: 4kw
11. Rolling thickness :0.3-1 .0 MM
12. Materials Expand Width: 1220mm
13. The computer use of PLC, Taiwan and Taiwan reached
14. The machine weighs about 4 tons, length of 7 meters wide and 1.45 meters, 1.2 meters high.
. The forming rollers are the key of roll forming machine. We use CAD to design and manufacture the rollers. After CNC lathe, the forming rollers will be harden by vacuum heat treatment and finished the profiles again. These processes make the more accurate forming rollers, avoid the deformation during heat treatment and ensure the rollers preciseness and wear-resisting ability.
3.Components of the processing line
Manual Decoiler------------------------------1 set(free)
Roll Forming Main Station----------------1 set(customer designed)
Oil Pump----------------------------------------1 set(customer designed)
Control Box-------------------------------------1 set(Panasonic PLC or customer designed)
Simple Receiving Table--------------------2 sets(free)
4.Working Process

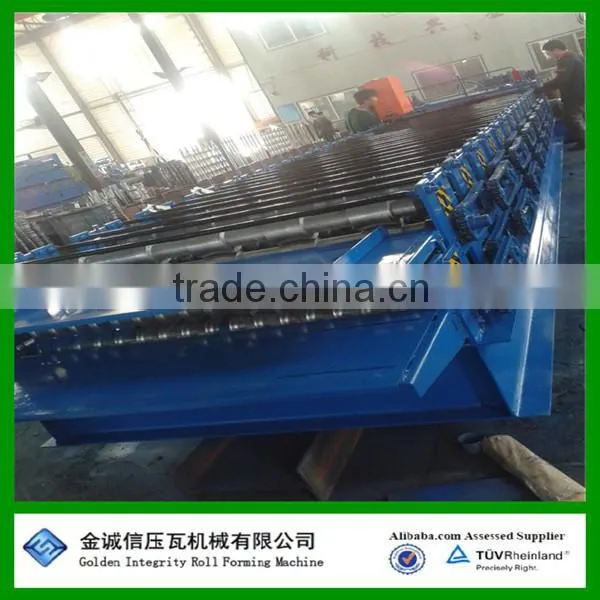

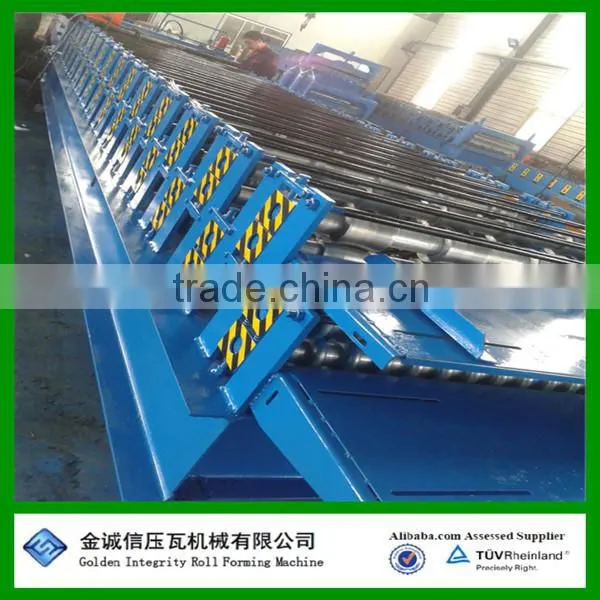

5.Pictures Show

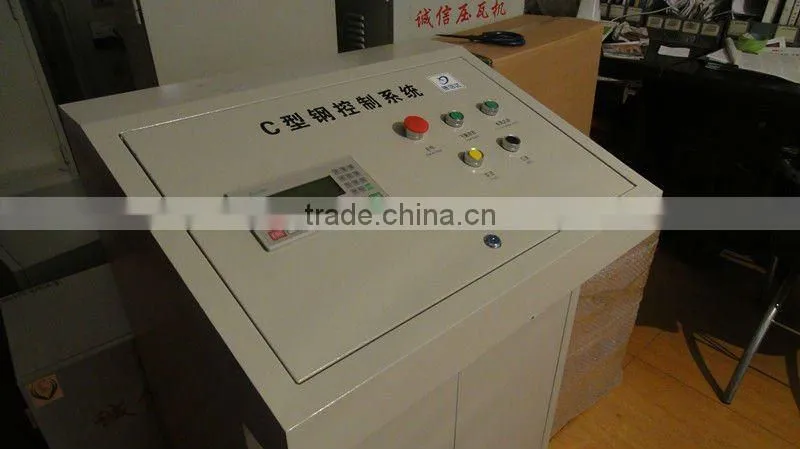

Control Box
Hydraulic system
6.Spare Parts(Free)

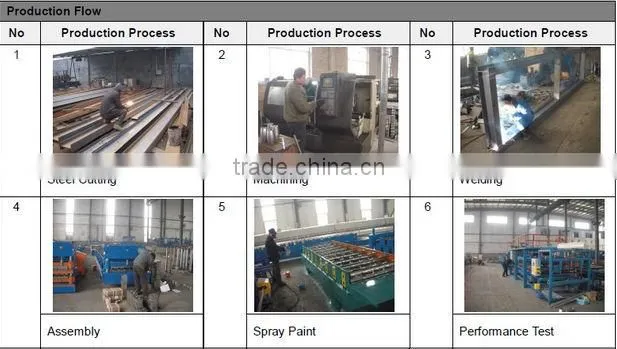

7.Production flow

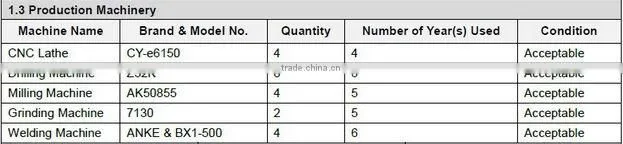

8.Production Machinry
9.Procurement Aspects
Procurement Aspects |
Detailed Rule |
Payment Terms |
The payment shall be made by L/C or T/T ( 30% down-payment and the balance for 70% shall be paid before container loading at the seller`s factory when the buyer confirms the quality is up to the contracted requirements. |
packaging |
Suitable for sea transportation.Usually one High precision Grape stake roller formed facility loads in one container.Depends on the machine's size and weight. |
Delivery Time |
30-65days. Depends on the machine type. |
After-sales Service |
Warranty: 1 year warranty from date of shipment. |
Purchasing Process |
fistly, send us the product profile. If it needs punching, please also send us the drawing of holes. |
If you are tired of those Chinese bad machines, and want to buy high quality machines in China, Just stop searching!we are your best choice!We offer you quality machine with good price!
Our main products include roll forming machines, guardrail roll forming machines, steel deck forming machines, door & window frame roll forming equipment, steel metal door making lines, guide rail rollforming machines, upright post roll formers, pipe and tube roll formers, purlin cold roll forming machines, T-bar forming machines, grape trellis roll forming machines, roof tile forming machines, steel metal panel roll forming machines, stud and track forming machines, cable tray roll forming machines, shelf rack making machines, gutter roll forming machines, roller shutter manufacturing lines, car bumper forming machines, car door forming machines, distribution cabinet making machines, channel roll forming machines and so on.
