10kw home solar power system , Pitched PV system
Using SunRack,Enjoy Sunshine
1.Specification of pv solar roof mounting
| Mounts Type | pv roof mount structure |
| Installation Site | pitched roof |
| Applicable Roof Cladding | Suitable for mounttypes of cladding |
| Roof Slope | Up to 60° |
| Max.Building Height | Up to 20m |
| Wind Load | 130mph(60m/s) |
| Snow Load | 30ps(1.4 kn/m2) |
| Applicable Module | Framed or framelss |
| Module Orientation | Landscape or portrait |
| Design Standard | AS/NZS1170 |
| Material | Aluminum,stainless steel |
| Warranty |
10 years warranty and 25 years service time |

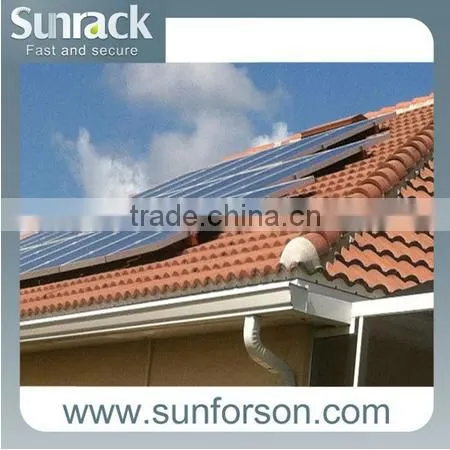

2.Photo of solar panel pv roof mounting

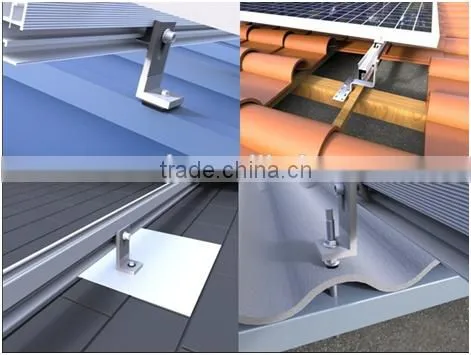

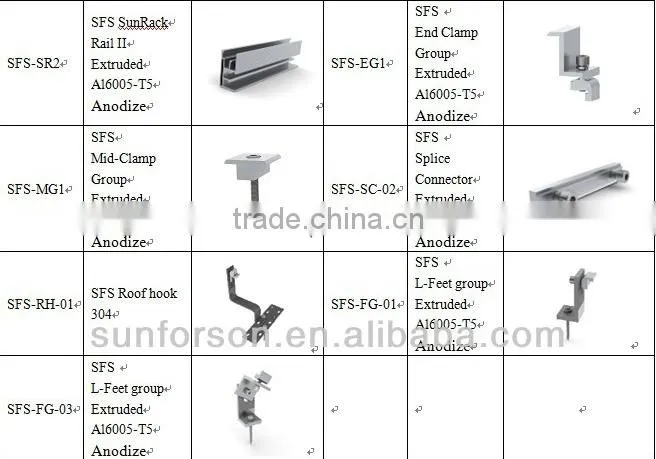

3.Components of stand alone solar kit for tin roof
4.Why choose Sunforson rack?
1.Easy Installation: The innovative Sunforson solar rail and G-Screw modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kit.The SolarRoof system is aided by a very high level of pressembly.The G-Screw module and unique rail extension method allow greatly reduced installation times.
2.Great Flexbilitity: With the Sunforson Solar Roof mounting,frammed photovoltaic modules can be easily mounted on pitched roofs.The Solar Roof system has mounting accessories designed for use on almost every roof cladding available wiht unique rail .Excellent Compatibility.Designed as a unversal racking system,framed modules from all the popular manufacturers can be used.
3.High Accuracy: Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.
4.Excellent Adaptability: The height adjustment of the rails from Sunforson allows a level PV array to be established,no matter how uneven the roof.Engineered To High Standard Sunforson SolarRoof is made to the highest standard,safe and strong its designed to Comply with AS/NZS 1170.
5.Maximum Lifespan: All components are made of quality extruded aluminium and stainless steel.The high corrosion resistance guarantees the maximun possible lifespan and is also completely recyclable.
6.Guaranteed Durability: Sunforson roof mounting provides a guarantee of 10 years on the durability of all components used.
5. Necessary info. for us to design and quote
- What is your pv panels dimension?_____mm Length x_____mm Width x____mm Thickness
- How many panel are you going to mount? _______Nos.
- What kind of roof do you have?__________(Tin/metal/tile/slate/shingle roof/flat roof)
- What is your planned pv assmebly block? ________Nos. in a row
- How is weather there,such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load
6.Recommend Sunforson other solar mounting products
A)SunRack pitch roof mounting system

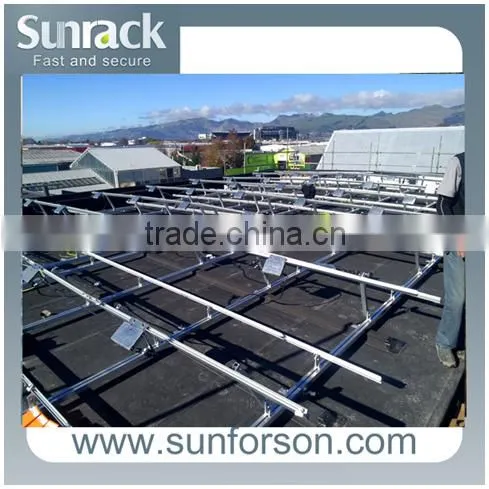

B) SunRack Flat Roof Mounting Structures

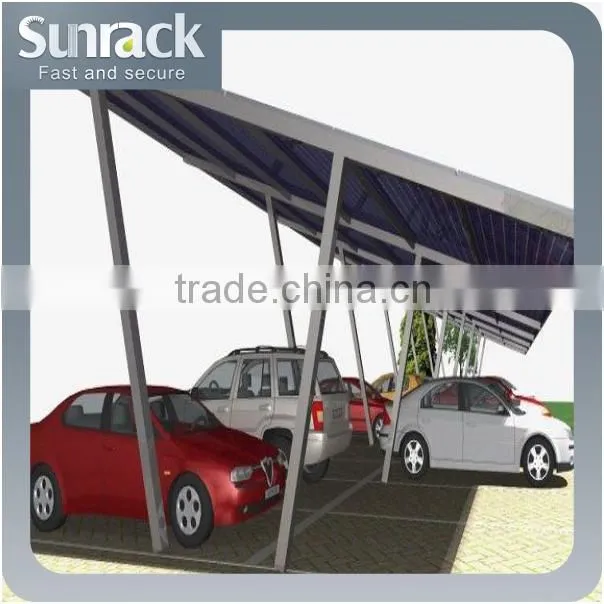

C) SunRack Full Aluminum PV Solar Carport Mounting

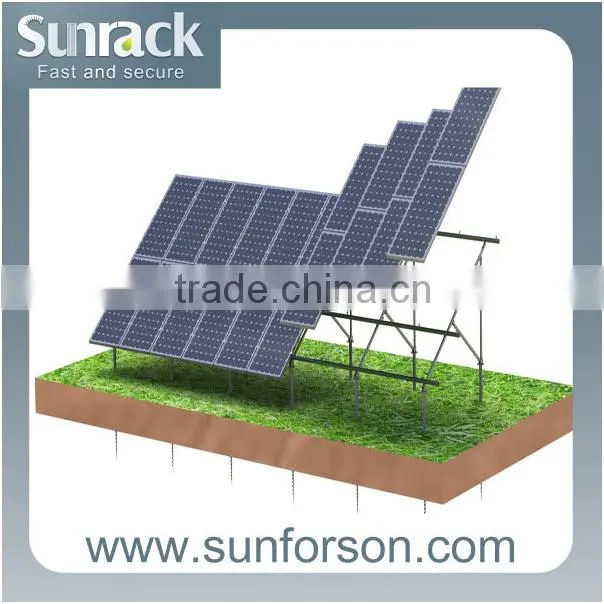

D) SunRack ground solar mounting brackets

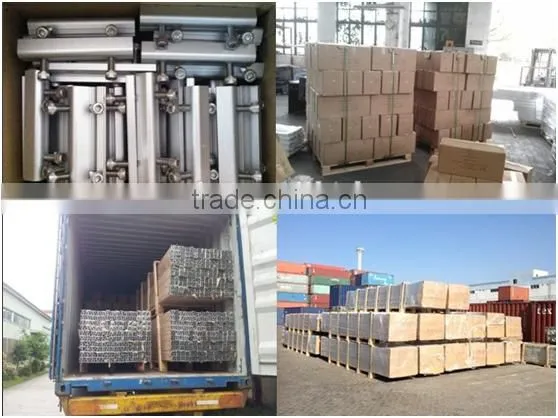

7. Packages Photos-SunRack Solar Mounting
8. Transportation for solar mounting system
9.Our customers visiting and PV EXPO

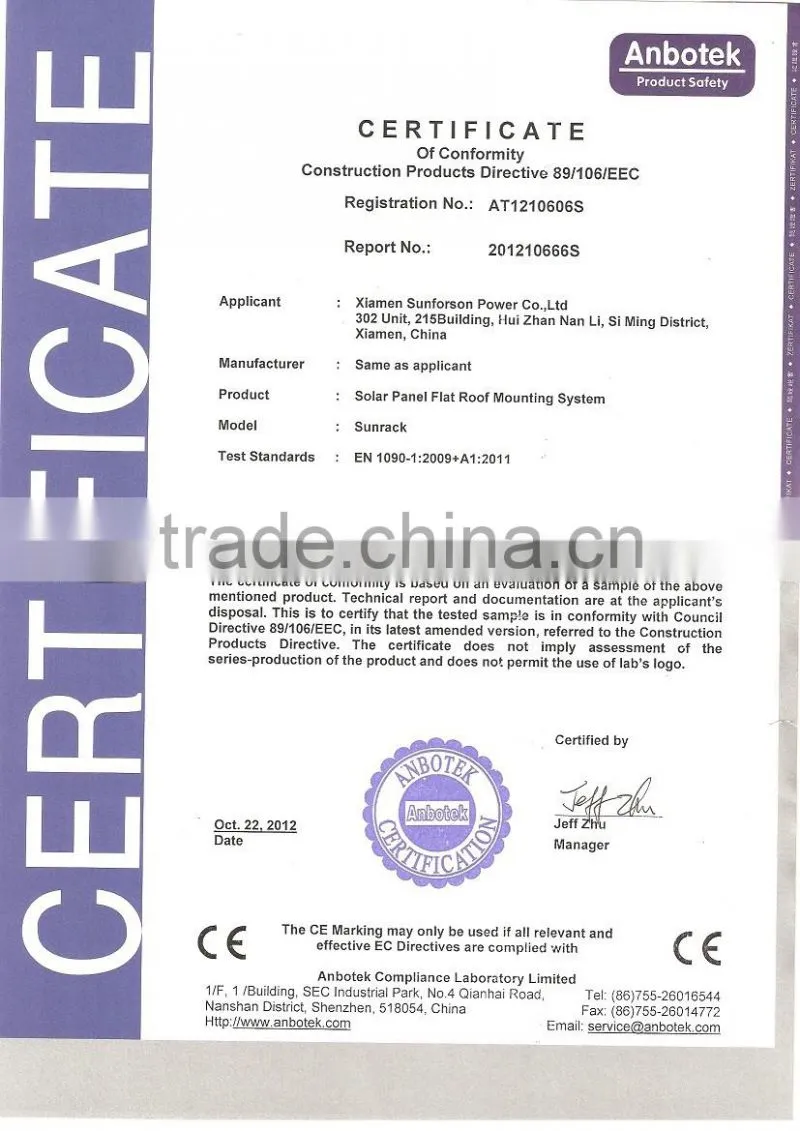

10. Certification of SunRack solar mounting

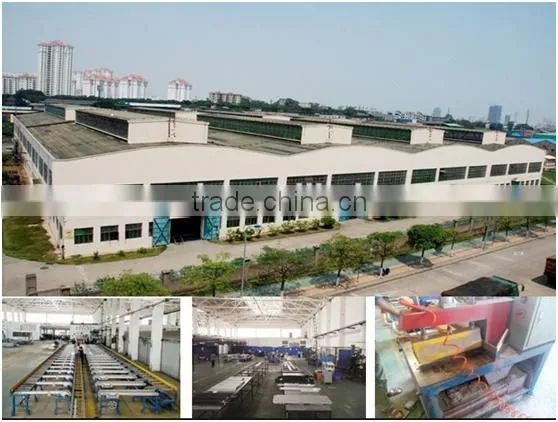

11.SunRack Factory
