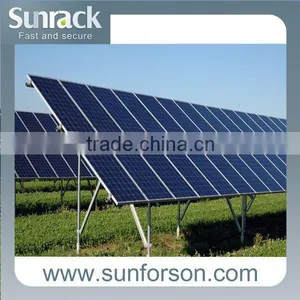

Gavalnized steel ground screw pv installation solar structure

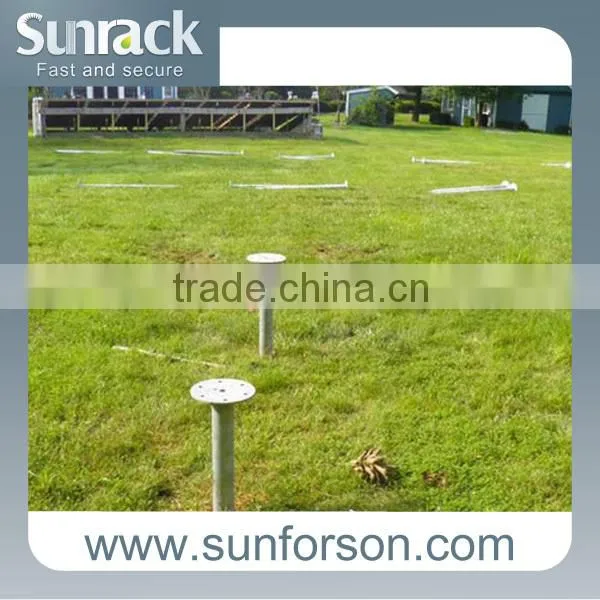

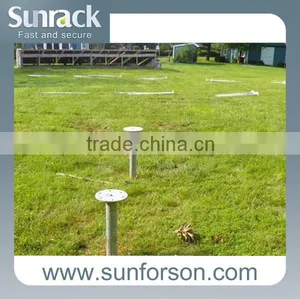

Sunforson has developed different series ground screws to meet varied application. This screw infoundation system is suitable for most kinds of soil condition.
With unique design on the flange plateof ground screw and mounting feet, the mounting structures can be adjusted in a certain range if there is a little misplace for ground screw, no matter left or right, front and back and even up and down.
1.Specification of Ground screw solar structure
Installation Site: |
open ground |
panels: |
solar panel for any size |
Structural materials: |
Aluminum, stainless steel |
Max. Building Height: |
Up to 65ft(20m) |
Wind Load: |
130mph(60m/s) |
Snow Load: |
30psf(1.4kN/m2) |
Inclination: |
Customizable |
Module Orientation: |
Landscape or portrait |
Code Compliance: |
IBC, AS/NZS 1170; |
Applicable temperature: |
-50~100 degree |
Warranty: |
10 years on material |
Features
1.Fast and quick installation with pile screws
2.No destroy on the soil and the ground
3.10 years quality warranty and 25 years design life
2.Components of Ground screw solar structure
3.Why you choose our solar ground screw solar mounting structure?
1. Easy installation.
The professional design, unique rail and G-module makes this solar mounting system install easily. So it saves your time and labor. No welding in the whole installation, 40% of the components preassembled.
2.High quality.
All of our solar mounting system have 25 years service life. Also we provide the 10-year warranty.
3. Competitive price.
Concise design saves the materials a lot and makes costs of solar mounting system very competitive.
4. Design.
We provide customized design of solar mounting system for your projects. Sunforson solar mounting design conform to Australia standard AS/NZS1170 and CE.
5. Quick delivery
The safety package and quick delivery.
4.Relative Sunforson solar mounting structure?
5.Package
6.About Sunforson solar ground mounting structure
SunRack solar ground mounting system currently offers four different types: concrete based, ground screw,pile, single pole solar mounting brackets, which can be installed on almost kind of ground and soil.
SunRack solar ground mount designs allow large spans between racks of up to 5 m. During the design stages,we focus on structural safety, utilizing structural analysis, and easier install consideration.
We design each ground mounting system according to the project demand. All systems are optimized to meet the wind and snow loads and conditions at a location as well as the geological composition of the ground. Our systems are just as flexible as your requirements.
7.Factory
Dear Buyer,
In order to help you get a right and quick quotation, would you please offer the following necessary info.
1. The dimension of the solar panel: _________(L*W*T)
2.How many panels are you going to mount? _______pcs.
3.What kind of ground footing do you prefer?__________(concrete/pile/pole/screw footing)
4. What is your planned pv assmebly block? ________pcs in a row
5.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load
6.What is the installation angle: _______degree.
Welcome to contact us for the price and more info of the solar mounting structures, your inquiry will be promptly replied.
Skype: gracezhang838
Email: grace @sunforson.com
