Solar ground Pile pv panel mount racks

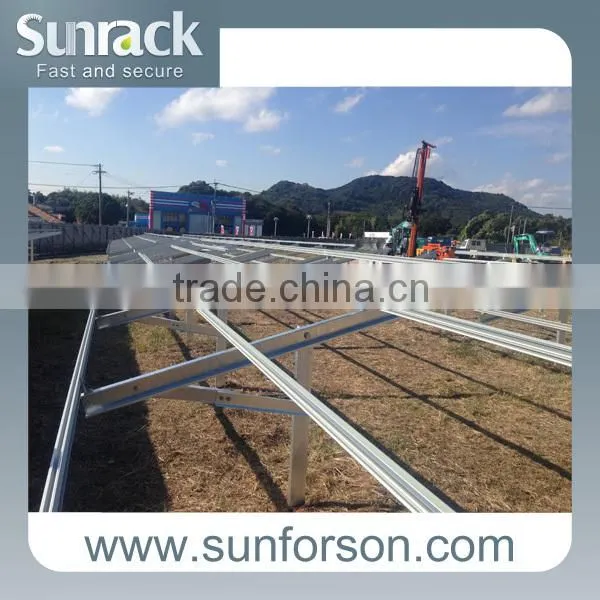

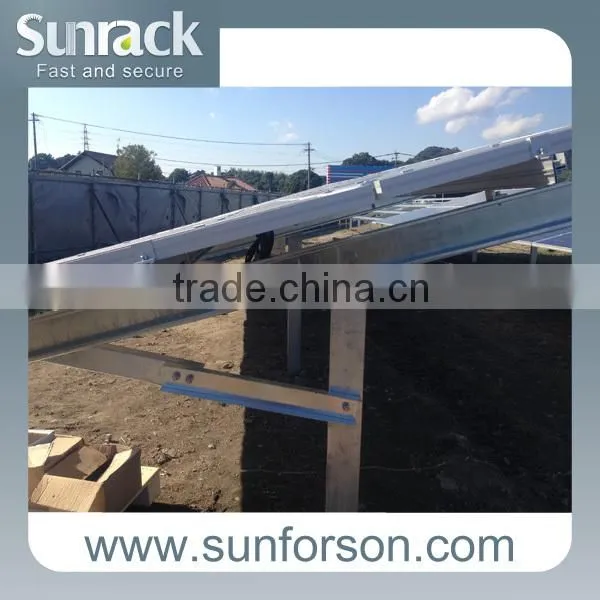

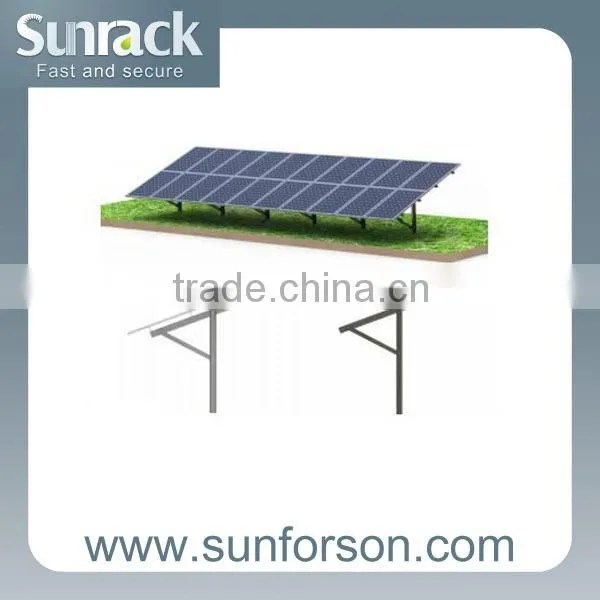

SunRack Pile Ground Mounting System is applied for large solar project panel installation on a non-sandyground.For SunRack Pile Ground Mounting System, the C post can be easily into the ground 1~2metersby Pile Machine, then you can mount the pre-assembled beam structure and other mounts easily.
1.Specification of Solar ground Pile pv panel mount racks
Installation Site: |
open ground |
panels: |
solar panel for any size |
Structural materials: |
Aluminum, Q235 |
Max. Building Height: |
Up to 65ft(20m) |
Wind Load: |
130mph(60m/s) |
Snow Load: |
30psf(1.4kN/m2) |
Inclination: |
Customizable |
Module Orientation: |
Landscape or portrait |
Code Compliance: |
IBC, AS/NZS 1170; |
Install angle: |
0~60 degree |
Warranty: |
10 years on material |
Features
1.Quick installation with pile machine
2.Widely used for large commercial and utility Photovoltaic systems
3.Comibined with Aluminum alloy and hot galvanized steel

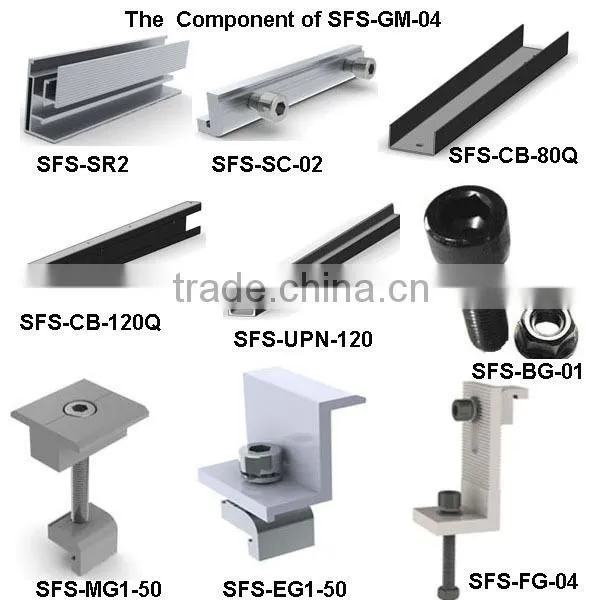

2.Components of Solar ground Pile pv panel mount racks
3.Why you choose our solar pv mounting system?
1. Easy installation.
The professional design, unique rail and G-module makes this solar mounting system install easily. So it saves your time and labor. No welding in the whole installation, 40% of the components preassembled.
2. High Accuracy.
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.
3. Excellent Adaptability
The height adjustment of the rails from Sunforson allows a level PV array to be established, no matter how uneven the ground is. To High Standard Sunforson System is made to the highest standard,safe and strong its designed to Comply with AS/NZS 1170.
4. Design.
We provide customized design of solar mounting system for your projects. Sunforson solar mounting design conform to Australia standard AS/NZS1170 and CE.
5. Quick delivery
The safety package and quick delivery.

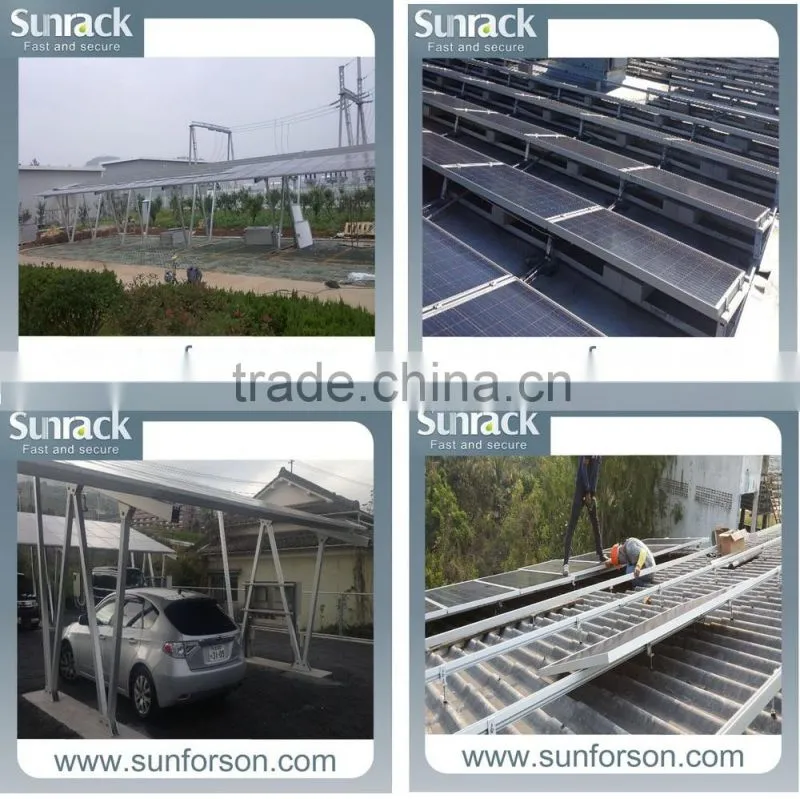

4.Relative Sunforson solar pv mounting systems?

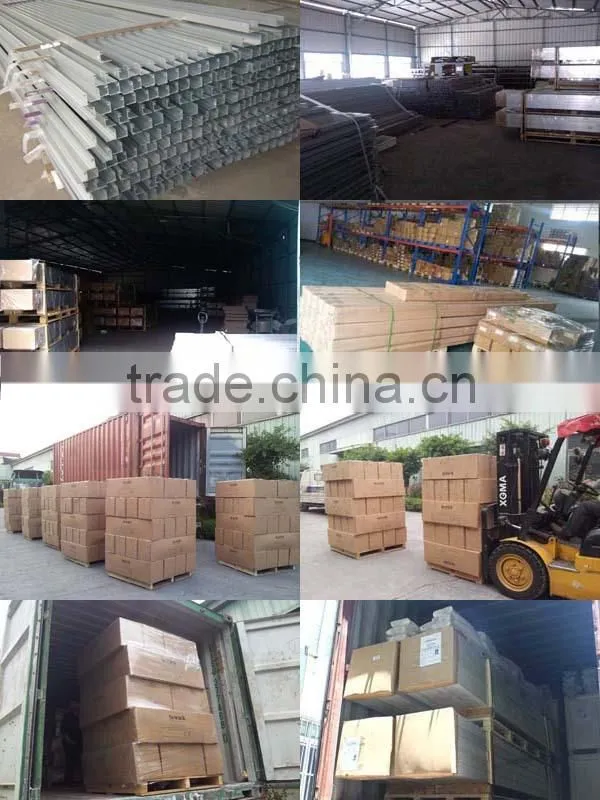

5.Package
6.About Sunforson solar ground mounting system

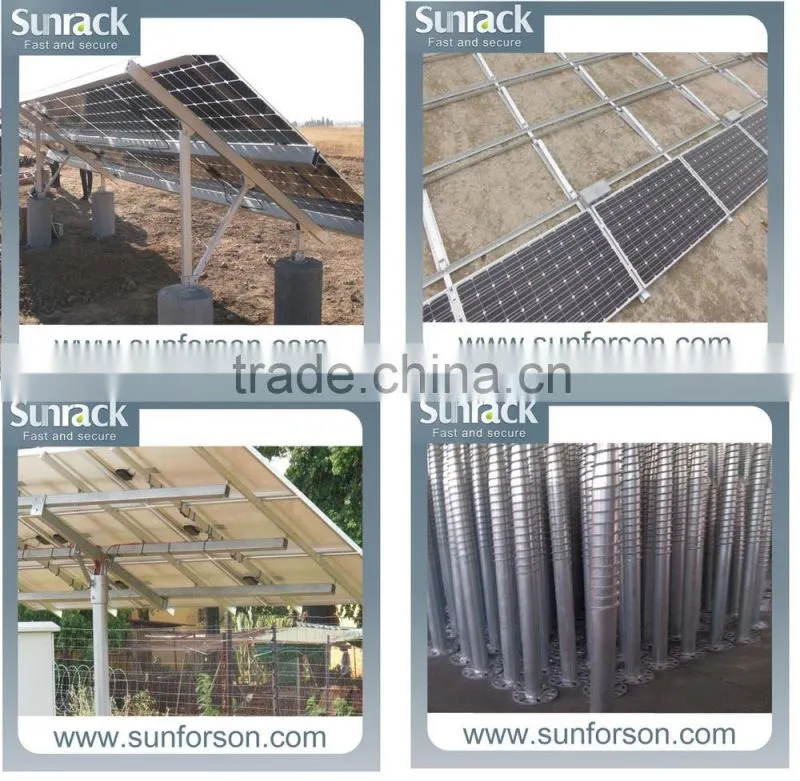

SunRack solar ground mounting system currently offers four different types: concrete based, ground screw,pile, single pole solar mounting brackets, which can be installed on almost kind of ground and soil.
SunRack solar ground mount designs allow large spans between racks of up to 5 m. During the design stages,we focus on structural safety, utilizing structural analysis, and easier install consideration.
We design each ground mounting system according to the project demand. All systems are optimized to meet the wind and snow loads and conditions at a location as well as the geological composition of the ground. Our systems are just as flexible as your requirements.

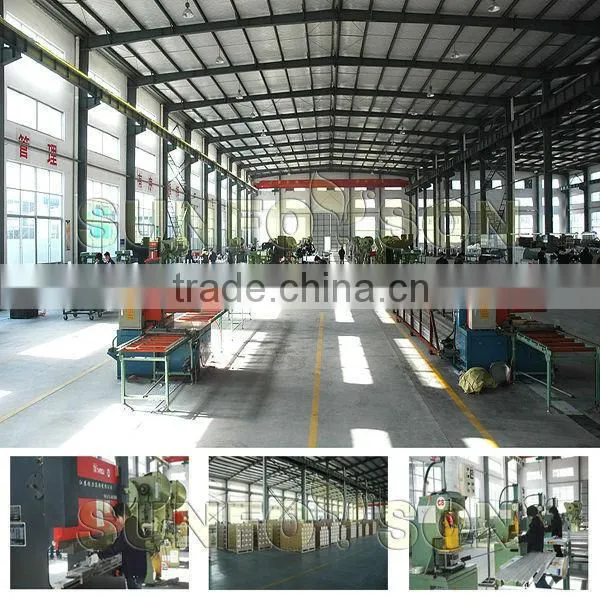

7.Factory
Dear Buyer,
In order to help you get a right and quick quotation, would you please offer the following necessary info.
1. The dimension of the solar panel: _________(L*W*T)
2.How many panels are you going to mount? _______pcs.
3.What kind of ground footing do you prefer?__________(concrete/pile/pole/screw footing)
4. What is your planned pv assmebly block? ________pcs in a row
5.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load
6.What is the installation angle: _______degree.
Welcome to contact us for the price and more info of the solar mounting structures, your inquiry will be promptly replied.
