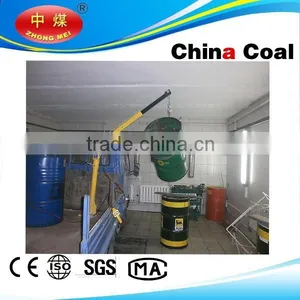

2015 HP1000 mini crane 500kg 12v electric winch crane

Product Introduction

1000Kgs electric truck hoist/electric cranes

Application :

China coal special produce vehicle-mounted electric crane ,with DC12V Vehicle power as power .Specially suitable in outdoor on power place , it is widely used ,mainly used for light-weight wagon ,Vans, loading dock ,platform .Outstanding feature ,compact structure , single size , lightest weight take up minimal room , HP1000 matched with 3000lbs winch ,is the best ideal option for lifting little object.

500kgs Electric Truck Hoist Winch / Electric Hoist/ electric winch/ DC12V hoist

Electric truck hoist winch description

Electric Truck Hoist Winch is an economical alternative to costly truck mounted hydraulic cranes. It is suitable for mounting on utilities, light trucks, trailers or pontoons, etc.

1000lbs electric TRUCK hoist is one of our professional products, with 12 volt DC as the power. It is widely used in pick -up trucks, caravan cars, loading docks, platforms etc. With outstanding featuressuch as structurally compact, small sized, light weighted, and minimal space required, ZM1000 is a good helper for lifting goods equal to or less than 660lbs in weight.

Main Parameter

MODEL: HP1000

Single line Lifting Capacity(maximum) 500kg

Double-line Lifting Capacity(maximum) 800kg

Lifting Height Max.Std.(base to hook) 1940mm

Reach Max.(from center of rotation) 1490mm (see Figure 3)

Rotation (continuous) with Brake 360° Manual

Lifting Cable 4.8mm x 4.5m –1pc(for single-line lifting) 4.8mm x 5.5m—1pc(for double-line lifting)

Line speed with No Load 3.6m/min single line

Power Requirements 12V DC 125 amps

Switch Cable 4.2m Mounting Base 250x250x18mms

Mounting Bolt Hole Pattern 170x170mms

Finish Powder Coated

Net Weight of Crane (LBS) 58.5KGS

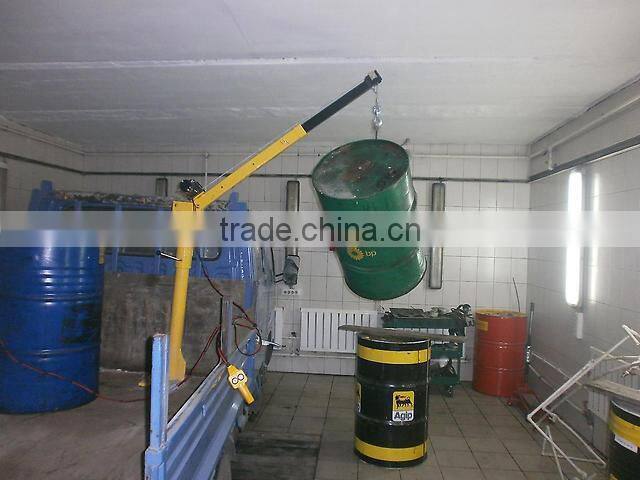

Figure Photos
