Specifications
1.Comparing with costly truck mounted hydraulic cranes,2.Electric Truck Hoist is an economical alternative.
Product Introduction
trailer for pickup hoist

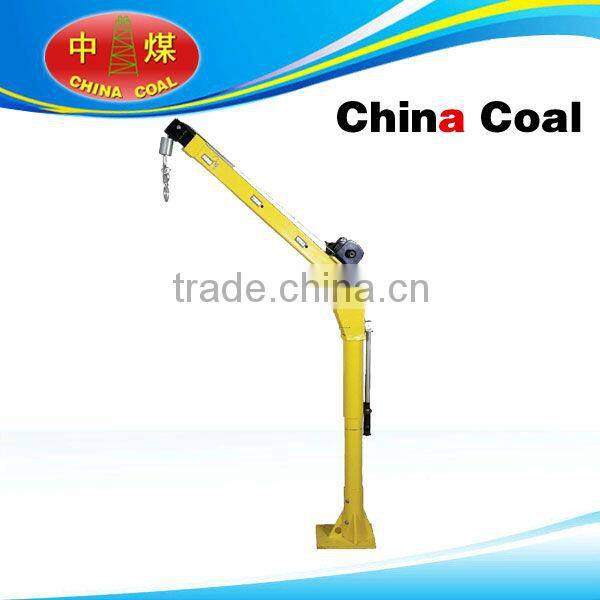

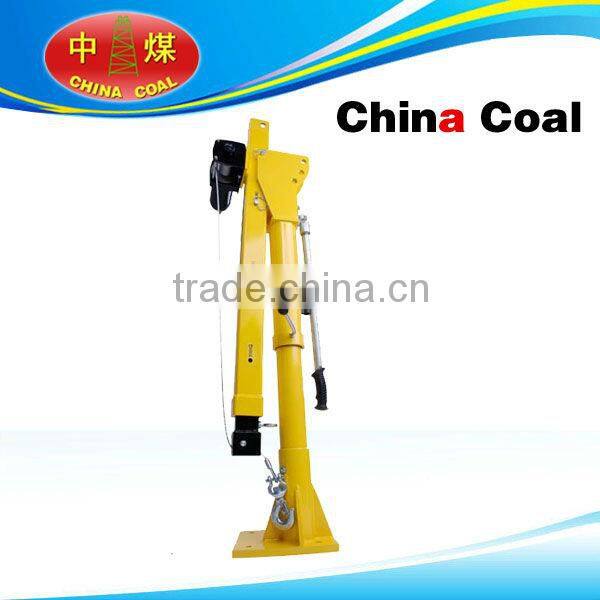

DC12V vehicle-mounted Mini Electric pickup hoist
Product Introduction
Comparing with costly truck mounted hydraulic cranes,
Electric Truck Hoist is an economical alternative.
It is suitable for mounting on utilities, light trucks, trailers or pontoons, etc
Application for the electric car hoist:
China coal special produce vehicle-mounted electric crane ,with DC12V Vehicle power as power .Specially suitable in outdoor on power place , it is widely used ,mainly used for light-weight wagon ,Vans, loading dock ,platform .Outstanding feature ,compact structure , single size , lightest weight take up minimal room , HP1000 matched with 3000lbs winch ,is the best ideal option for lifting little object.
Compact design , folds away when not in use
Easily installed . in site or by a vehicle body builder
Main Parameter
MODEL: |
HP1000 |
Single line Lifting Capacity(maximum) |
500kg |
Double-line Lifting Capacity(maximum) |
800kg |
Lifting Height Max.Std.(base to hook) |
1950mm |
Reach Max.(from center of rotation) |
1573mm (see Figure 3) |
Rotation (continuous) with Brake |
360° Manual |
Lifting Cable |
4.8mm x 4.5m –1pc(for single-line lifting) 4.8mm x 5.5m—1pc(for double-line lifting) |
Line speed with No Load |
3.6m/min single line |
Power Requirements |
12V DC 125 amps |
Switch Cable |
4.2m |
Mounting Base |
250x250x18mms |
Mounting Bolt Hole Pattern |
170x170mms |
Finish |
Powder Coated |
Net Weight of Crane (LBS) |
58.5KGS |
Figure Photos
About Us
Shandong China Coal Industrial & Mining Supplies Group Co.,ltd is a big joint stock enterprise founded in the early 1980s,registered capital is 138million yuan. The group total has 1100 employees,3 wholly owned subsidiaries and 18 professional branches.Hundreds of our products are exportedto Australia,Russia, Colombia,
Ukraine,Georgia, the United states,Southeast Asia and so on more than 60 countries and regions.
Customers Visit

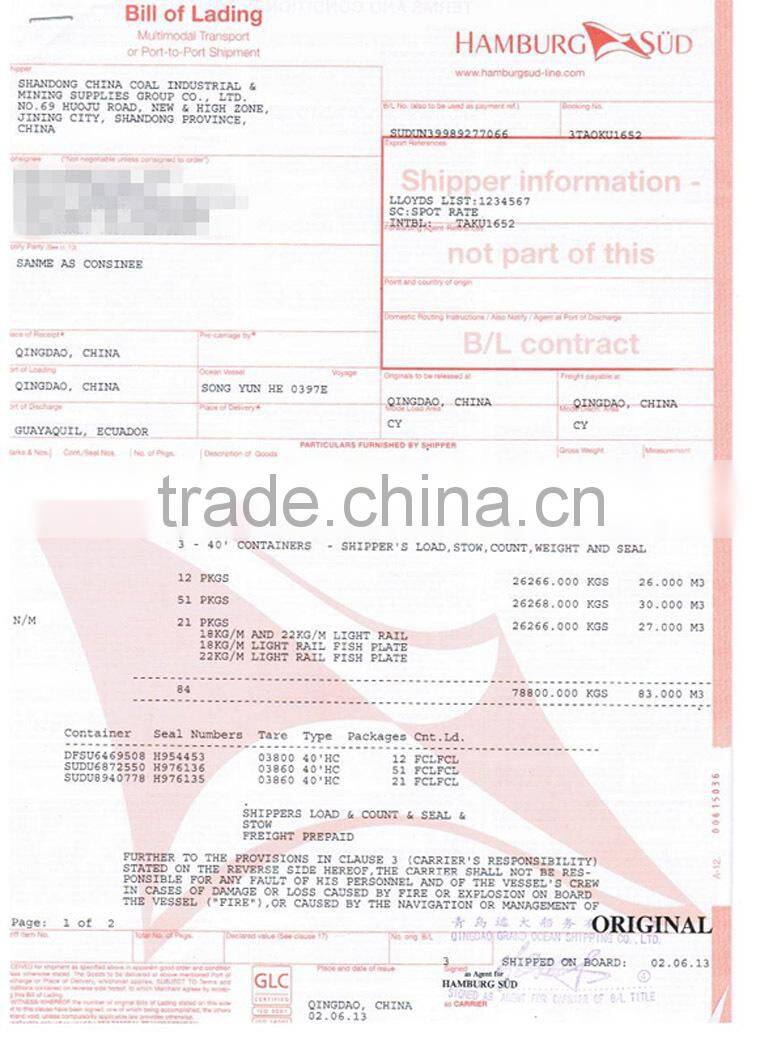

B/L of The History Trading
