HP1000 Indoor lifting machine with 12V DC
- 1000 Set / Sets per Month
- Qingdao Shanghai Ningbo Shenzhen
- Credit Card
- Explosion proof electric hoist with curved rail on top of LNG storage tank
- Explosion proof electric hoist with curved rail on top of LNG storage tank
- Low Head Room Wire Rope Electric Hoist
- Stage Chain Hoist Fashion Mini Cool Design
- Wholesale manual hand operated hoist HSZ chain pulley block hoist for factory
- manual door frame pallet stacker
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | China Coal |
Model Number: | HP1000 | Usage: | Mining Hoist | Power Source: | Electric |
Sling Type: | Chain | Maximum Lifting Weight: | 500kg | Maximum Lifting Height: | 1940mm |
Lift Speed: | 3.6m/min | Certification: | ISO | Warranty: | 1 Year |
After-sales Service Provided: | No overseas service provided |
Product Description
Product Introduction
HP1000 Indoor lifting machine with 12V DC
DC12V vehicle-mounted Mini Electric pickup hoist
mini truck crane with ce approved :
China coal special produce vehicle-mounted electric crane ,with DC12V Vehicle power as power .Specially suitable in outdoor on power place , it is widely used ,mainly used for light-weight wagon ,Vans, loading dock ,platform .Outstanding feature ,compact structure , single size , lightest weight take up minimal room , HP1000 matched with 3000lbs winch ,is the best ideal option for lifting little object
Main Parameter
Model | HP1000 | HP550 |
Max Single line lifting capacity | 500kg | 550lb |
Max Double line lifting capacity | 800kg |
|
Lifting Height max. Std. | 1940mm (base to hook ) | 1655mm |
Reach Max | 1490mm (from center to rotation ) | 980mm |
Rotation (continuous) with Brake | 360 Manual | 360 Manual |
Lifting Cable | 4.8mmx4.5m -1pc (for single line lifting ) | 4.8mmx4.5m |
Lifting Cable | 4.8mmx5.5m -1pc (for double line lifting ) |
|
Line speed with No load | 3.6m/min single line | 3.7m/min |
Power requirements | 12V DC 125 amps | 12V DC 90 amps |
Switch Cable | 4.2m | 1.8m |
Mounting Base | 250*250*18mm | 250*250*18mm |
Mounting Bolt Hole Pattern | 170*170mm | 170*170mm |
Finish | Powder Coated | Powder Coated |
Net Weight | 58.5kg | 53.5kg |

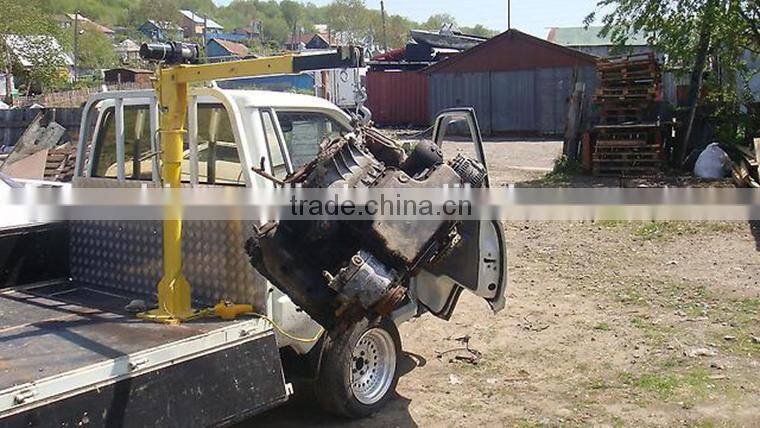

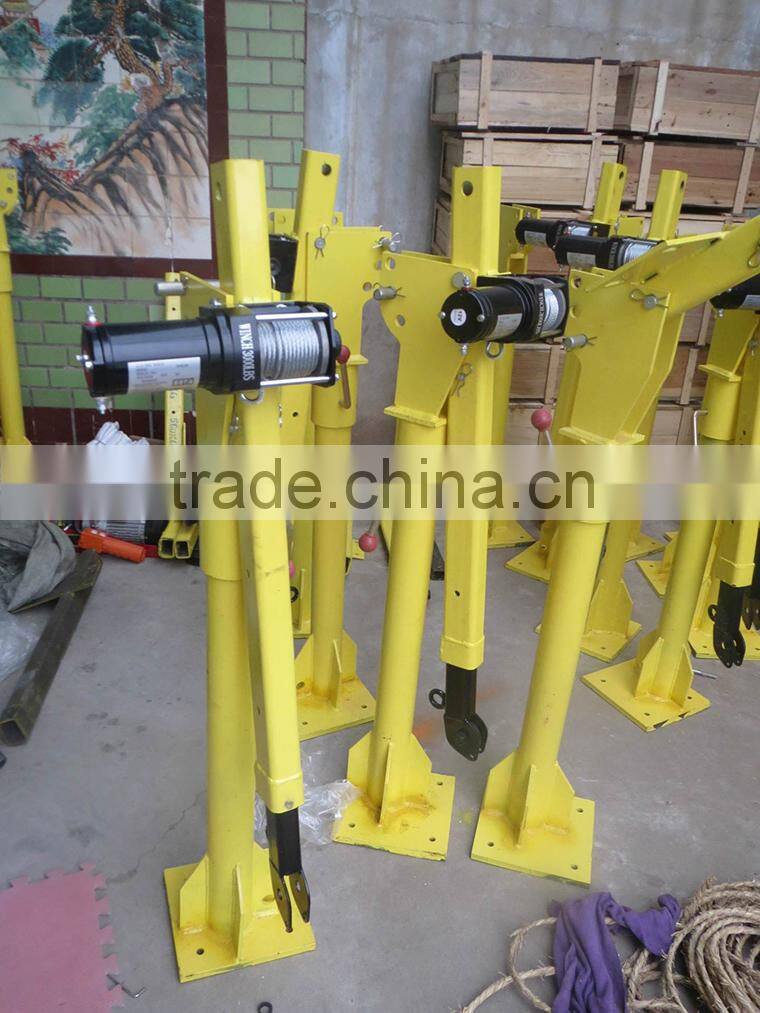

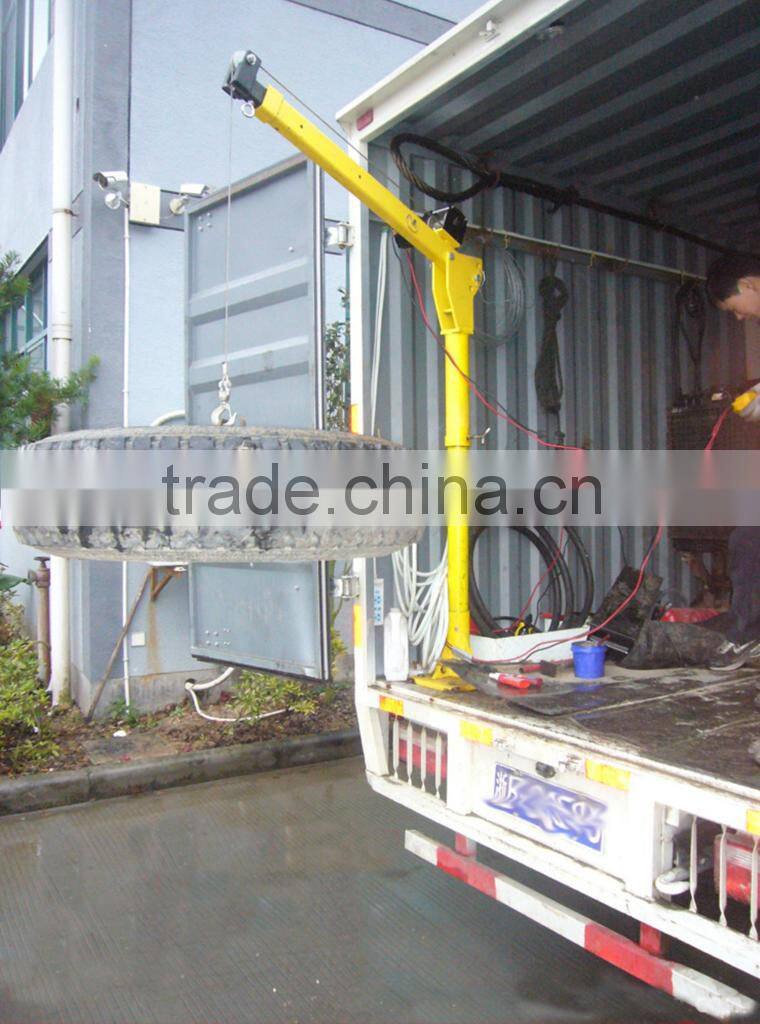

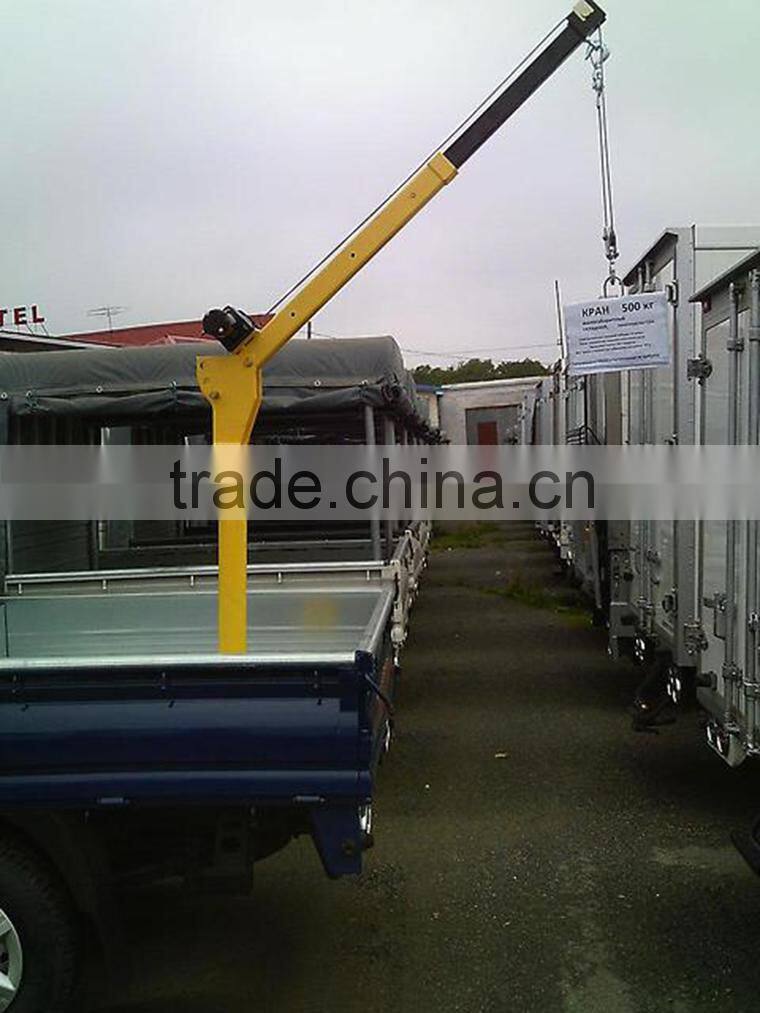

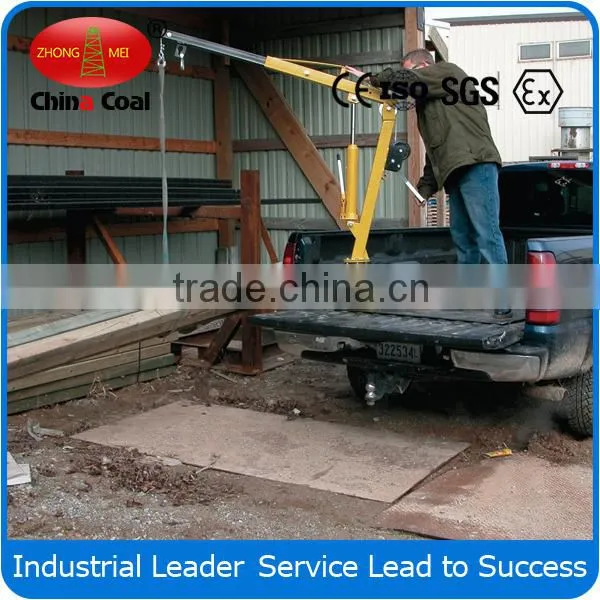

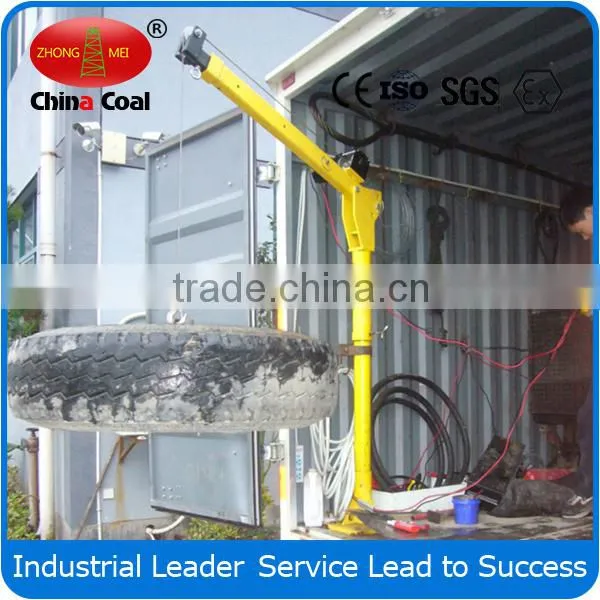

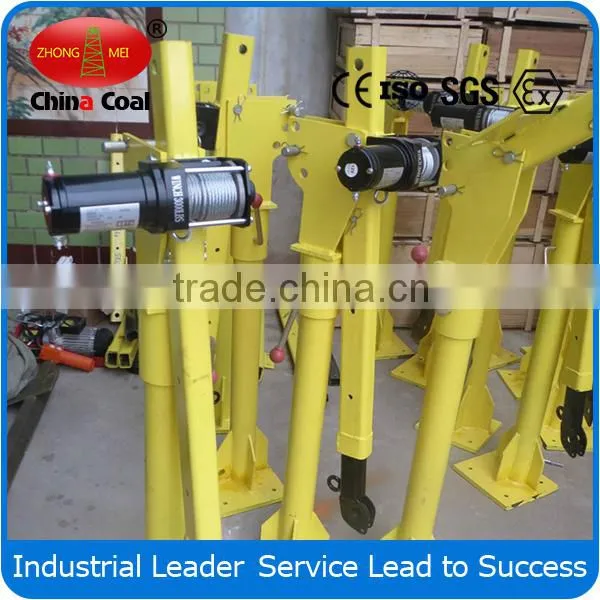

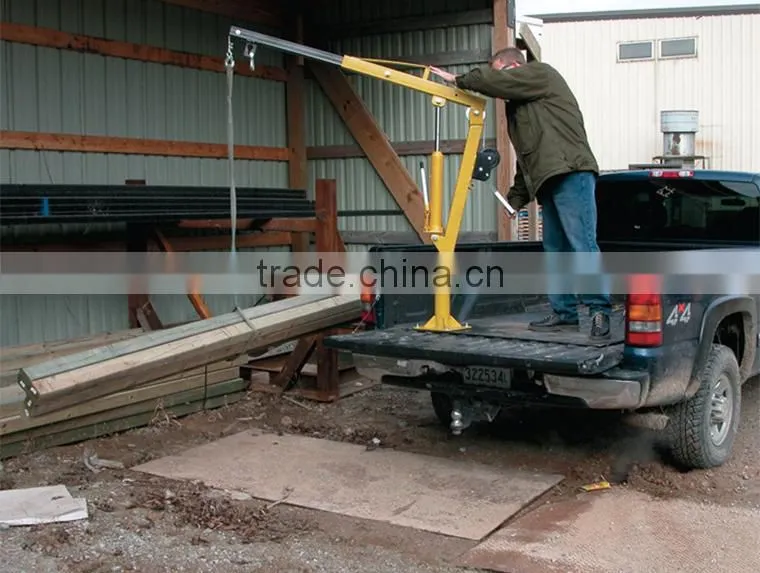

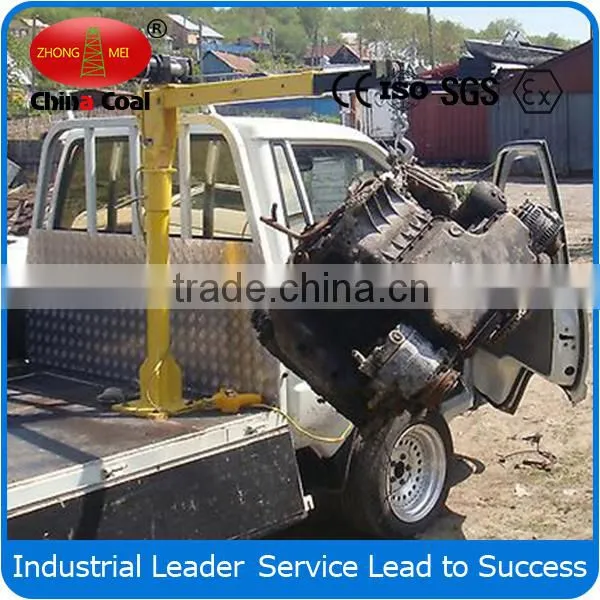

Figure Photos

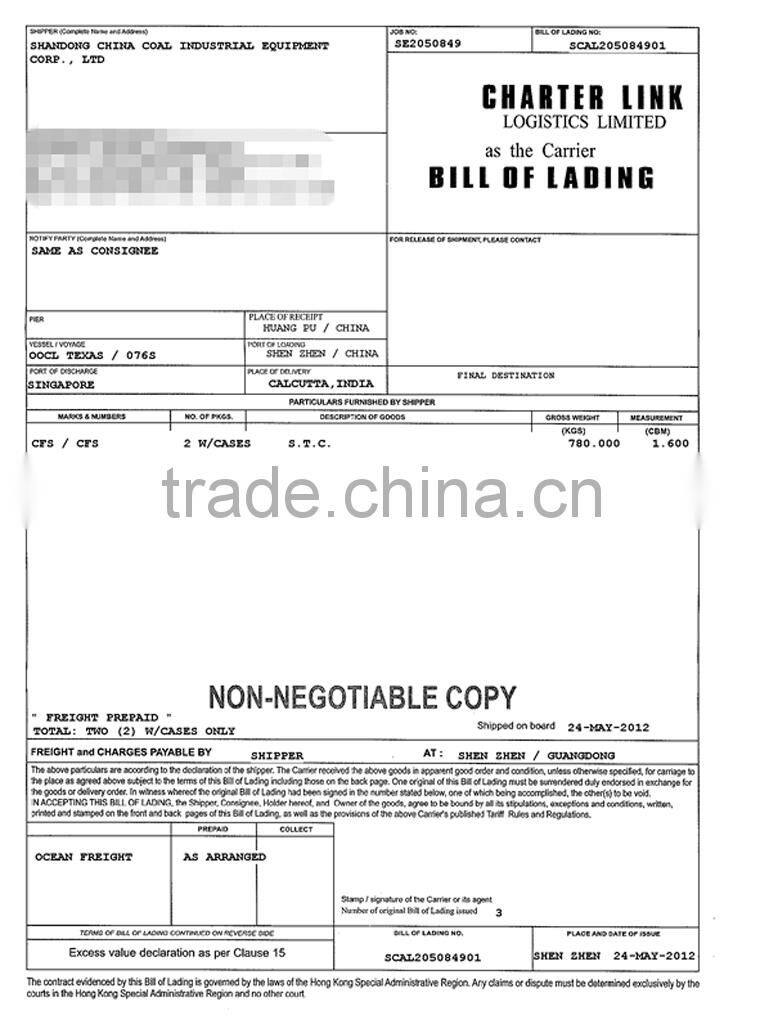

B/L of The History Trading
About Us
Shandong China Coal Industrial & Mining Supplies Group Co.,ltd is a big joint stock enterprise founded in 1994. Since established, thousands of our products have been exported to Australia, Russia, Colombia, Ukraine, Georgia, the United states, and other more than 140 countries and regions. Shandong China Coal Group is to establish long-term, broader economic and trade cooperation and strategic partnership with a number of large state-owned enterprises and customers, and win the unanimous approval of them.
Customers Visit
Qualification & Certification
