Product Introduction

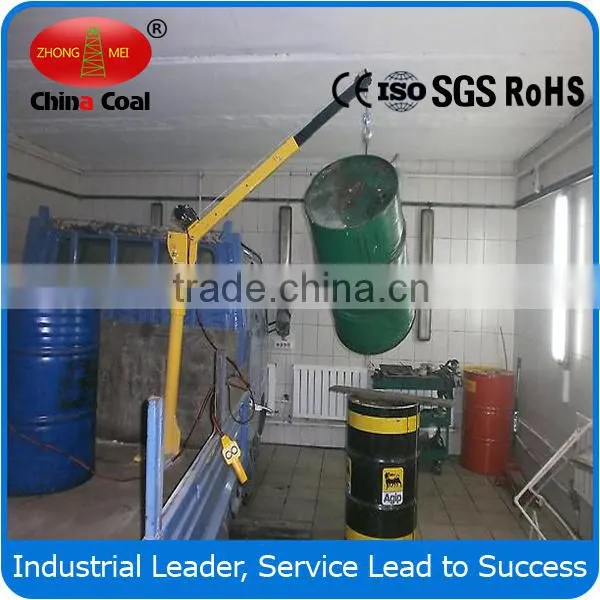

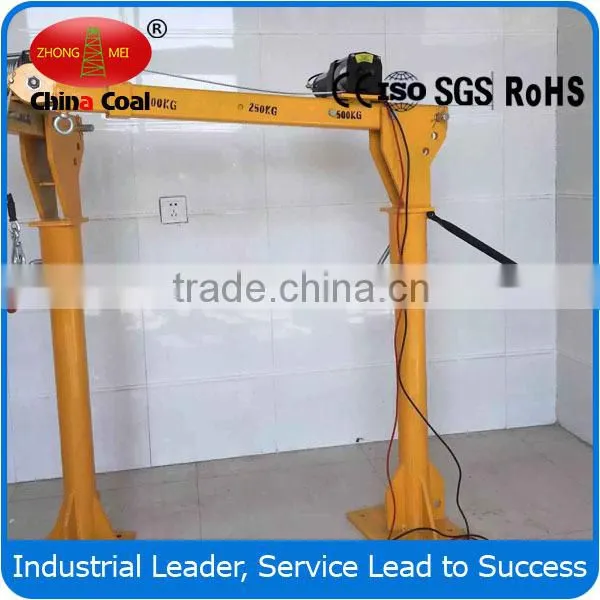

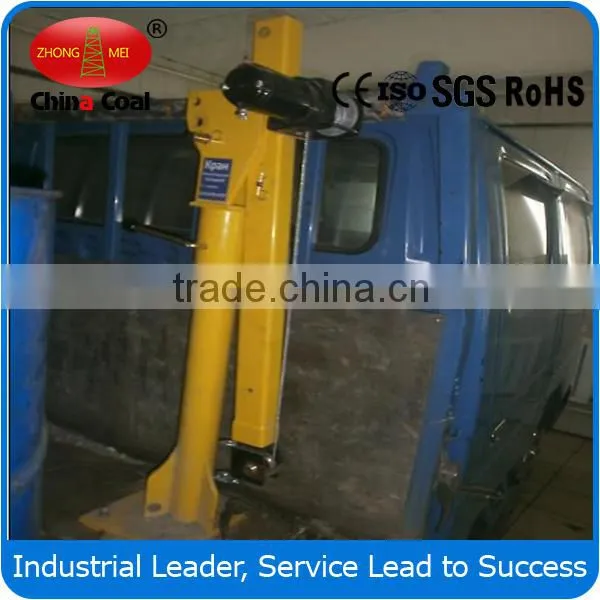

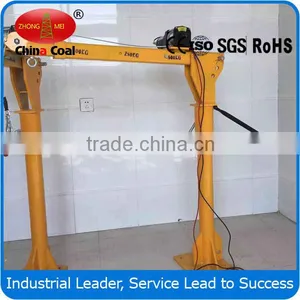

1100lbs 500kgs Mini DC12V electric crane hoist with cable winch
Application: Highways, Construction, Utilities ,General
China coal special produce vehicle-mounted electric crane ,with DC12V Vehicle power as power .Specially suitable in outdoor on power place , it is widely used ,mainly used for light-weight wagon ,Vans, loading dock ,platform .Outstanding feature ,compact structure , single size , lightest weight take up minimal room , HP1000 matched with 3000lbs winch ,is the best ideal option for lifting little object.
Main Parameter
Max Single line lifting capacity |
500kg |
Max Double line lifting capacity |
800kg |
Lifting Height max. Std . (base to hook ) |
1940mm |
Reach Max (from center to rotation ) |
1490mm |
Rotation (continuous ) with Brake |
360 Manual |
Lifting Cable |
4.8mmx4.5m -1pc (for single line lifting ) |
Lifting Cable |
4.8mmx5.5m -1pc (for double line lifting ) |
Line speed with No load |
3.6m/min single line |
Power requirements |
12V DC 125 amps |
Switch Cable |
4.2m |
Mounting Base |
250*250*18mm |
Mounting Bolt Hole Pattern |
170*170mm |
Finish |
Powder Coated |
Net Weight of Crane |
58.5Kgs |
1100lbs 500kgs Mini DC12V electric crane hoist with cable winch

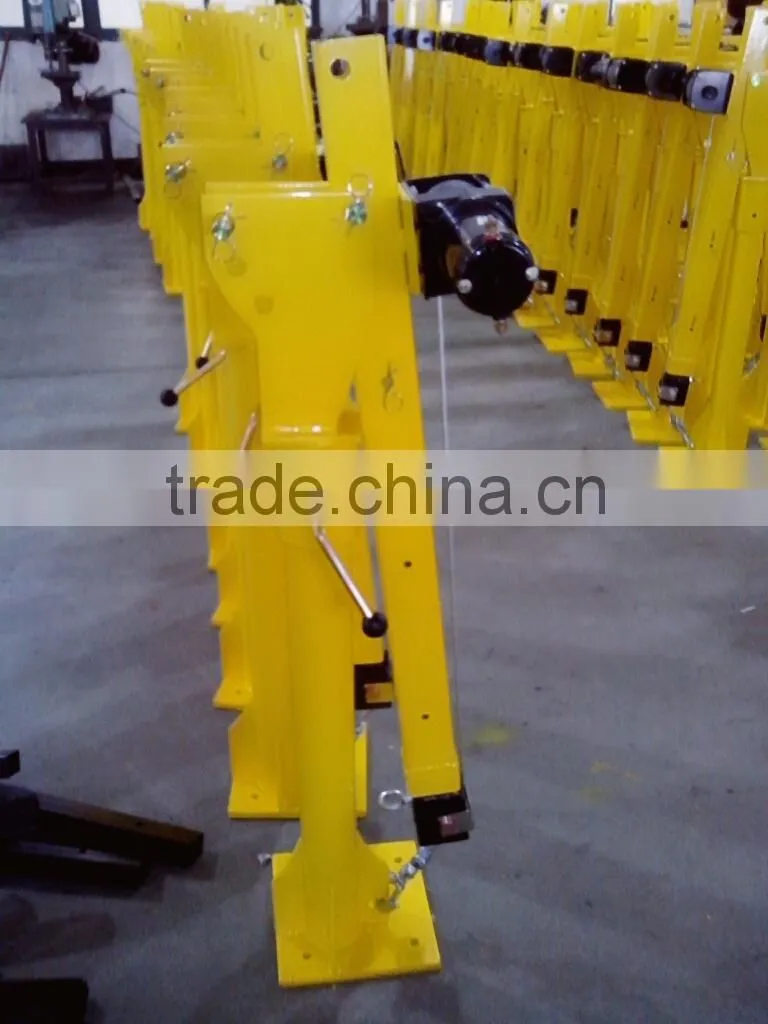

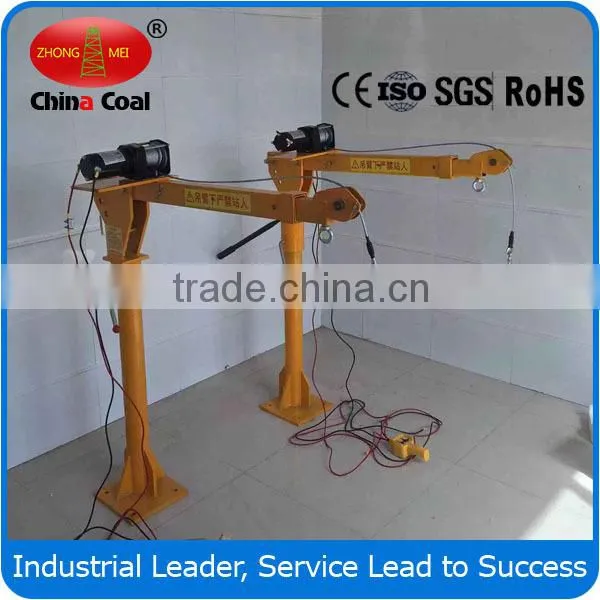

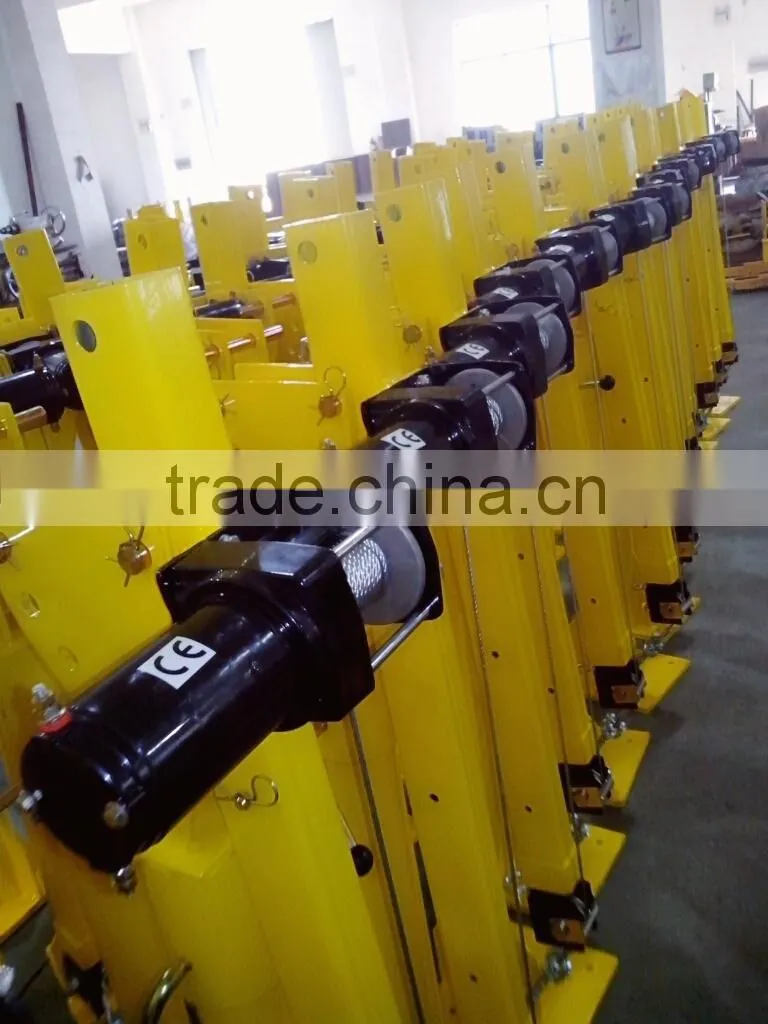

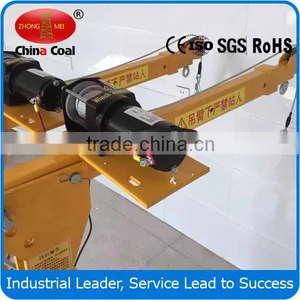

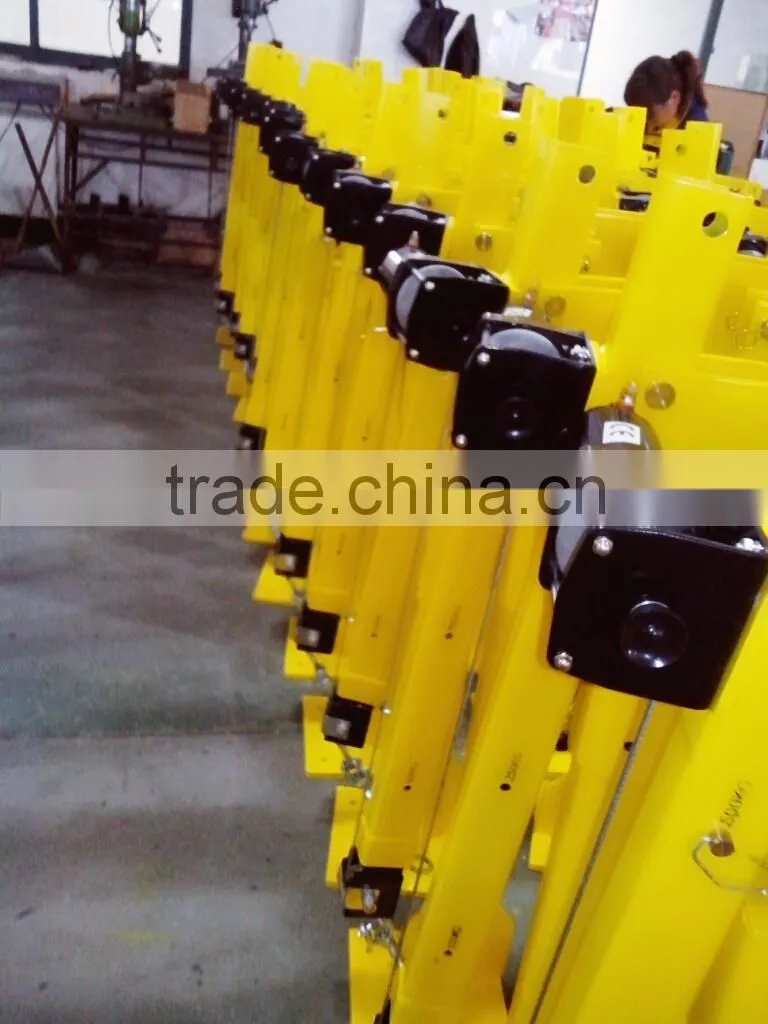

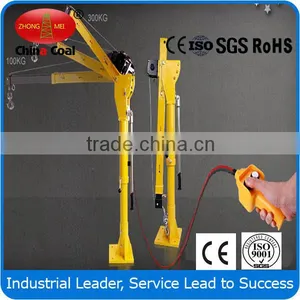

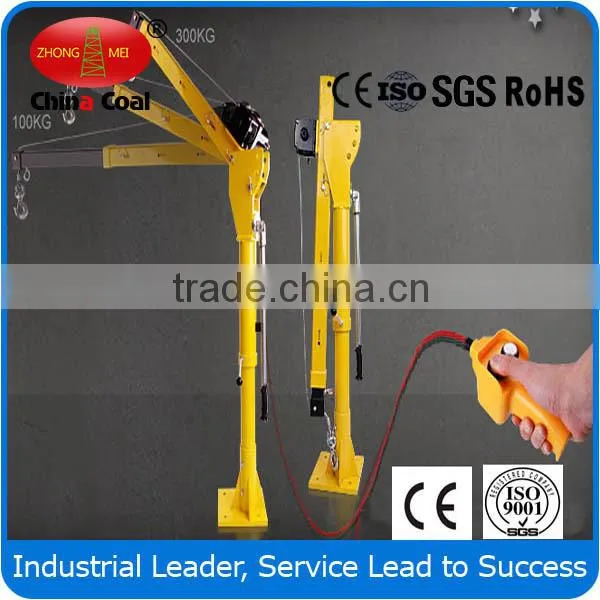

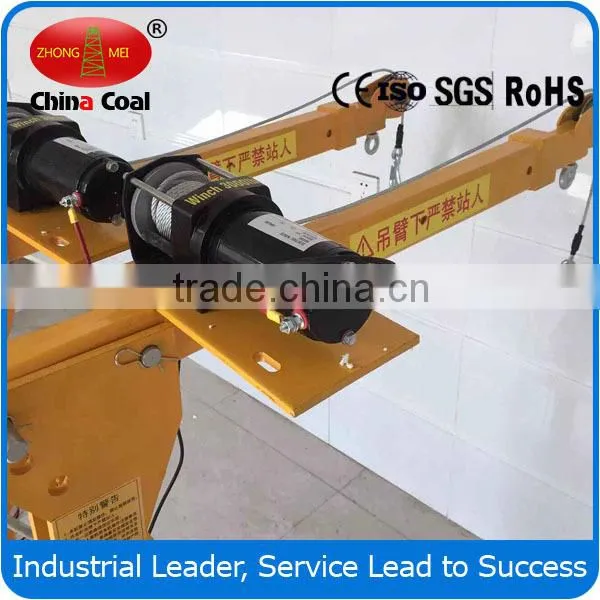

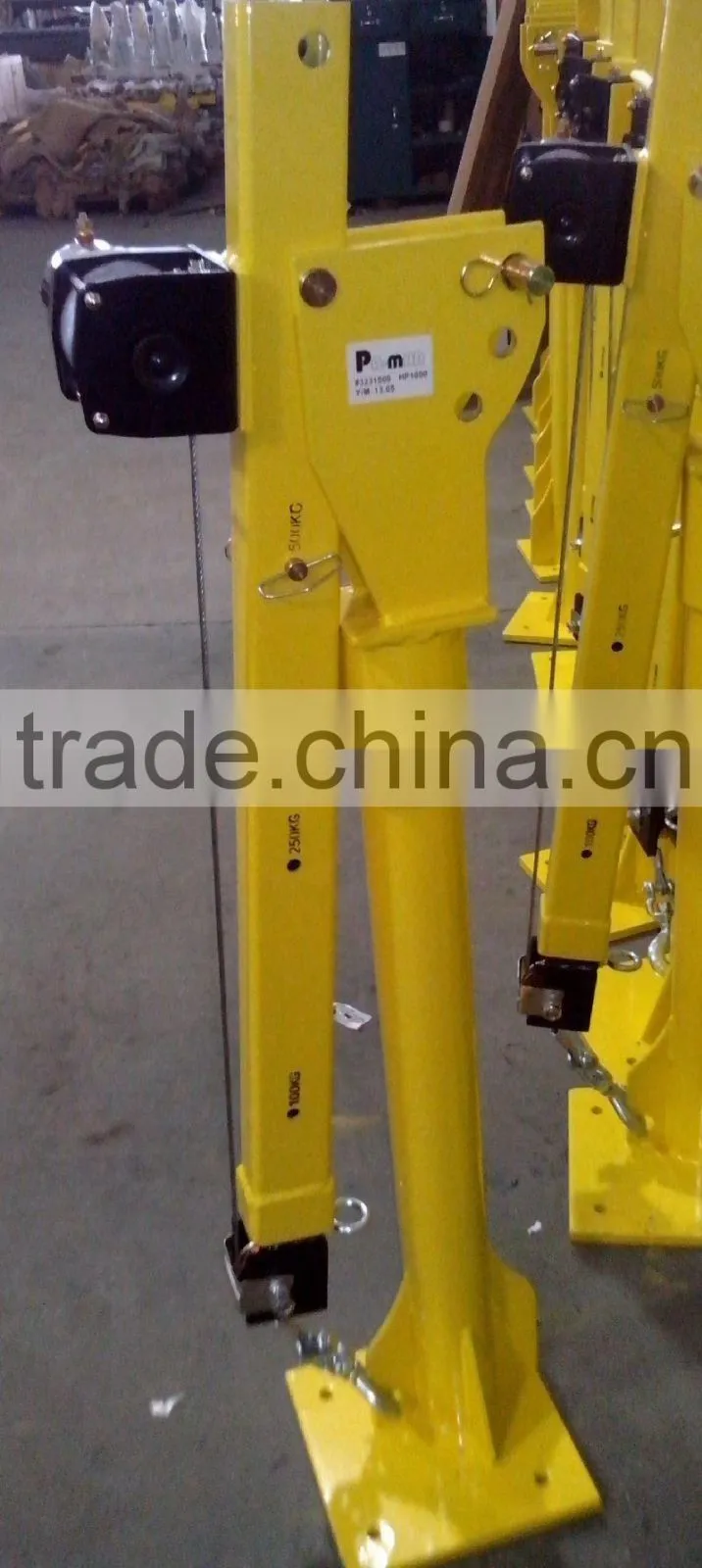

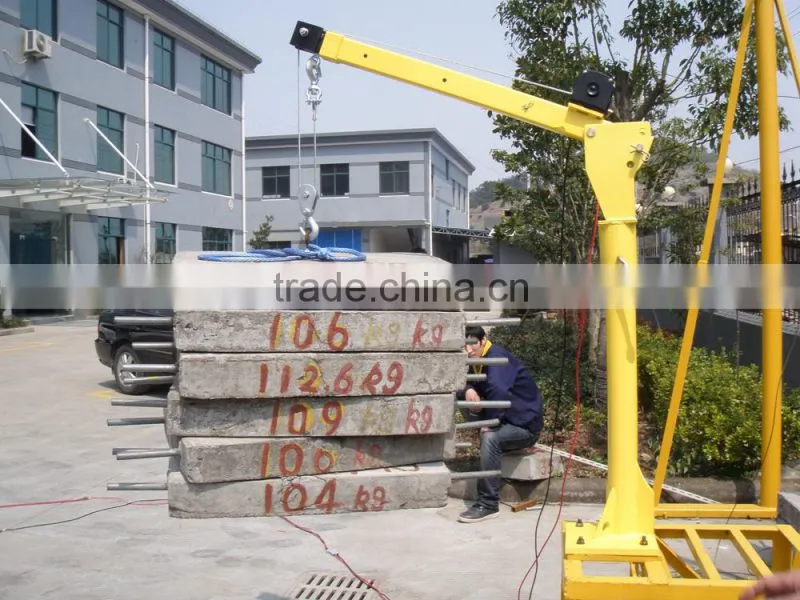

Figure Photos
