Product Introduction

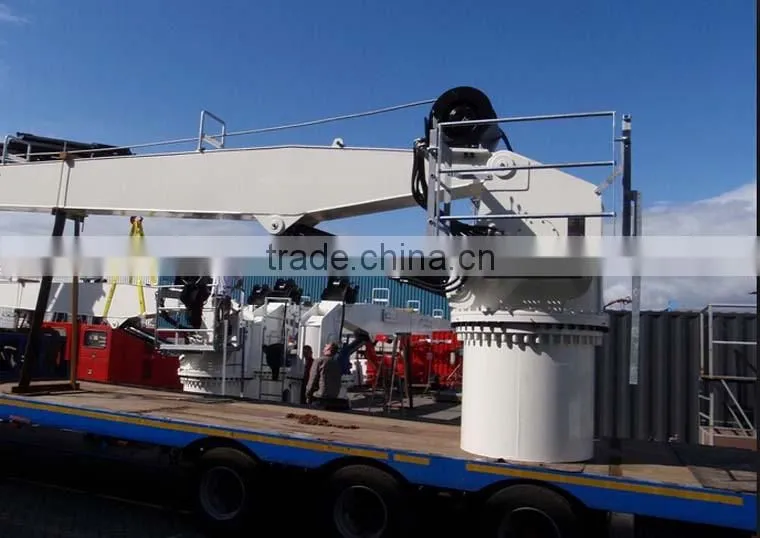

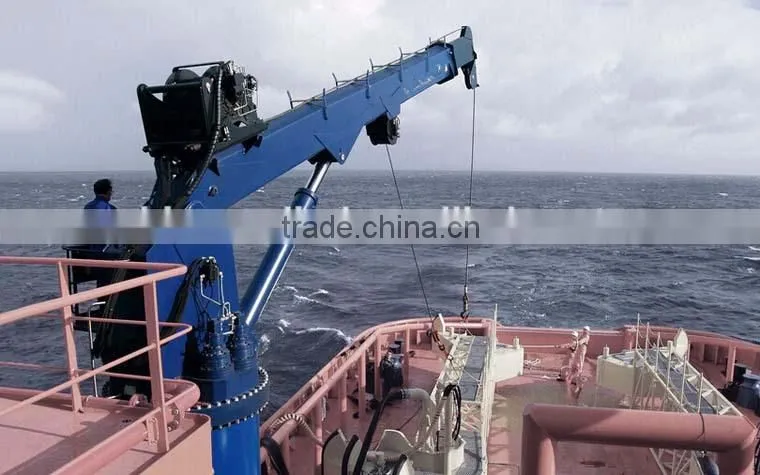

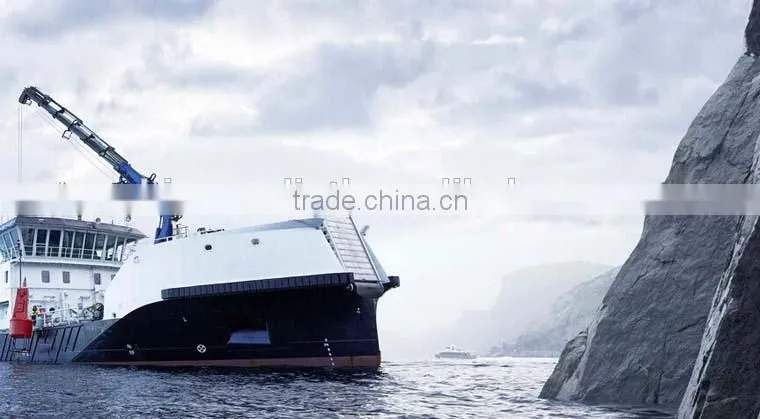

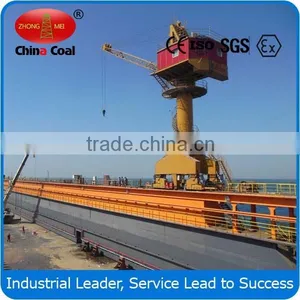

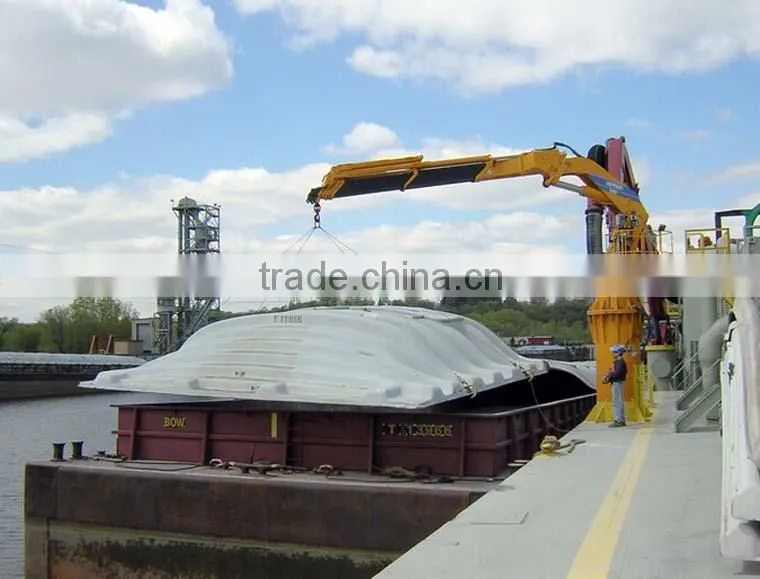

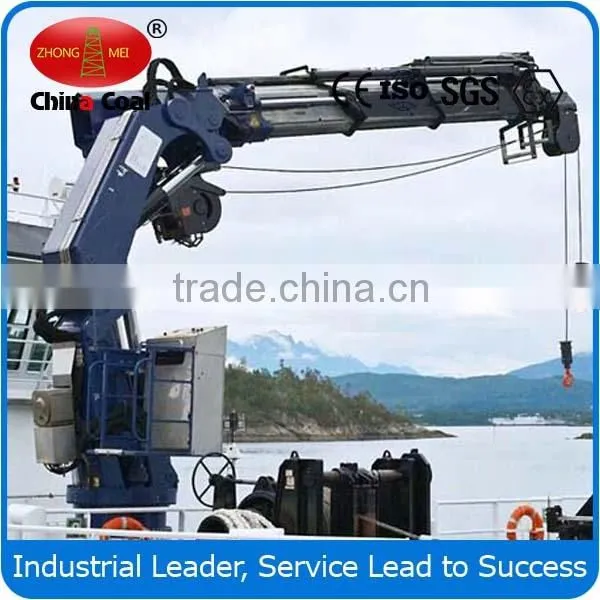

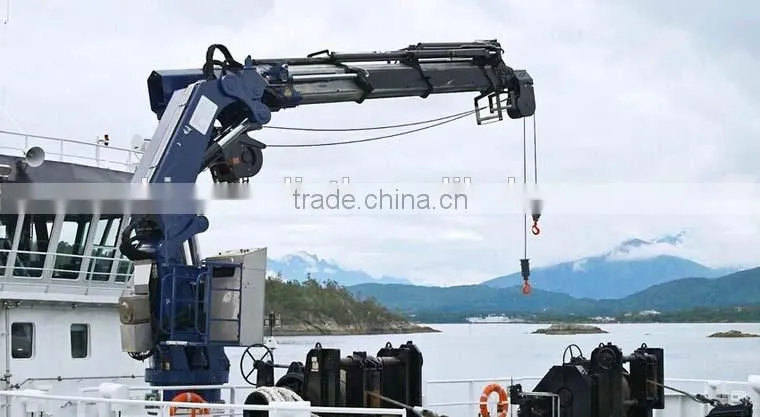

Telescope Boom Marine Crane
The modular construction of our cranes enables us to supply a wide range of reliable, functional products to the world fleet at very competitive prices.
We offer cranes from 1-250 tones as standard, with products suitable for use in any environments. Modular construction means that we can build cranes for specific
applications from standard components, ensuring minimal downtime and the ready availability of spare parts when needed. But this standardization does not mean any sacrifice of flexibility - in fact, modular construction enables customization without the need for expensive upfront engineering. This reduces the risks for customers, and speeds the job of creating a solution to the customer's satisfaction.
Reliable, durable and cost effective, our range of standard cranes will solve the vast majority of lifting challenges.
Note:
1. The highest standard service after sales is provided in 24 hours and spare parts are deliveried in 3 days to secure productivity in your operations.
2. Engineers are available service machinery oversea.
Remark :
If you are interested to our Telescope Boom Marine Crane, pls kindly provide us the following information that we can clear your request and make the proper technical drawings and reasonable quotation for you:
1. Which kind of Telescopic Boom Marine Crane you want?
2. How much the SWL of the Telescopic Boom Marine Crane you need?
3. How much the Working Radius of the Telescopic Boom Marine Crane you need.
Main Parameter
Type |
Safety Working Load (kN) |
Max Working Rad.(m) |
Min Working Rad.(m) |
Hoisting Speed (m/min) |
Slewing Speed (r/min) |
Luffing Time (s) |
Hoisting Height (m) |
Slewing Angle (°) |
Trim/Heel (°) |
Power (kW) |
CC1 |
10 |
6~12 |
1.3~2.6 |
15 |
1 |
60 |
30 |
360 |
2/5 |
7.5 |
CC2 |
15 |
8~14 |
1.7~3 |
15 |
1 |
60 |
30 |
360 |
2/5 |
11 |
CC3 |
20 |
5~15 |
1.1~3.2 |
15 |
1 |
60 |
30 |
360 |
2/5 |
15 |
CC4 |
30 |
8~18 |
1.7~3.8 |
15 |
0.9 |
70 |
30 |
360 |
2/5 |
22 |
CC5 |
50 |
12~20 |
2.5~4.2 |
15 |
0.75 |
80 |
30 |
360 |
2/5 |
37 |
CC8 |
80 |
12~20 |
2.5~4.2 |
15 |
0.75 |
100 |
30 |
360 |
2/5 |
55 |
CC10 |
100 |
12~20 |
2.5~4.2 |
15 |
0.75 |
110 |
30 |
360 |
2/5 |
75 |
CC15 |
150 |
12~20 |
2.5~4.2 |
15 |
0.6 |
110 |
30 |
360 |
2/5 |
90 |
CC20 |
200 |
16~25 |
3.2~5.3 |
15 |
0.6 |
120 |
35 |
270 |
2/5 |
75*2 |
CC25 |
250 |
20~30 |
3.2~6.3 |
15 |
0.5 |
130 |
40 |
270 |
2/5 |
90*2 |
CC30 |
300 |
30 |
3.2~6.3 |
15 |
0.4 |
140 |
40 |
270 |
2/5 |
90*2 |

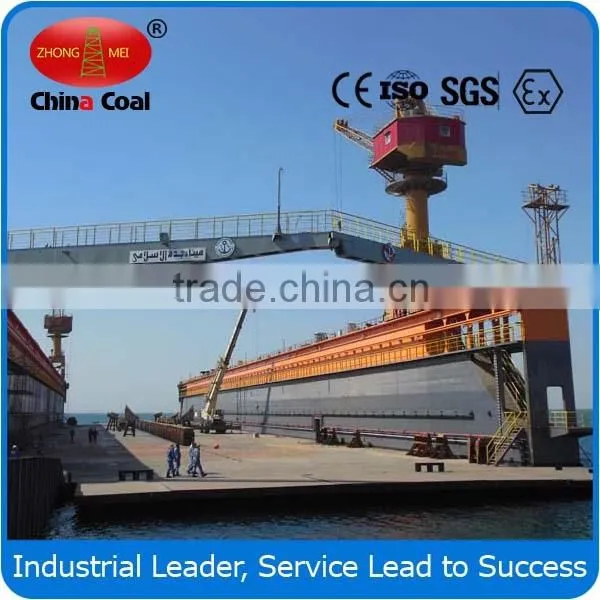

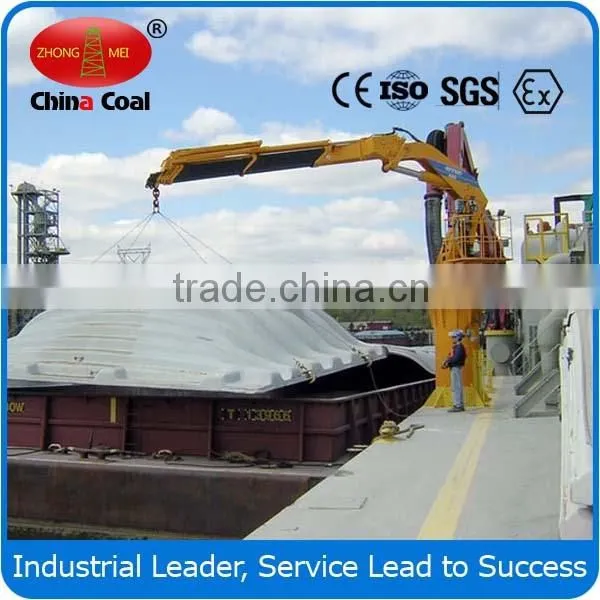

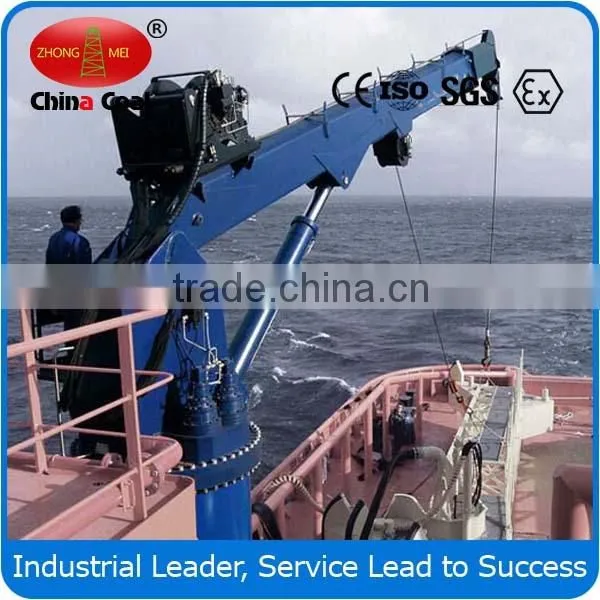

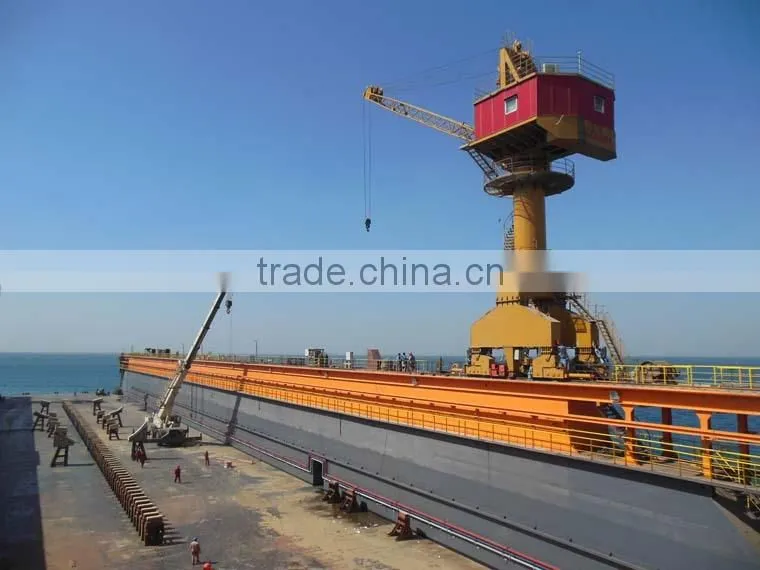

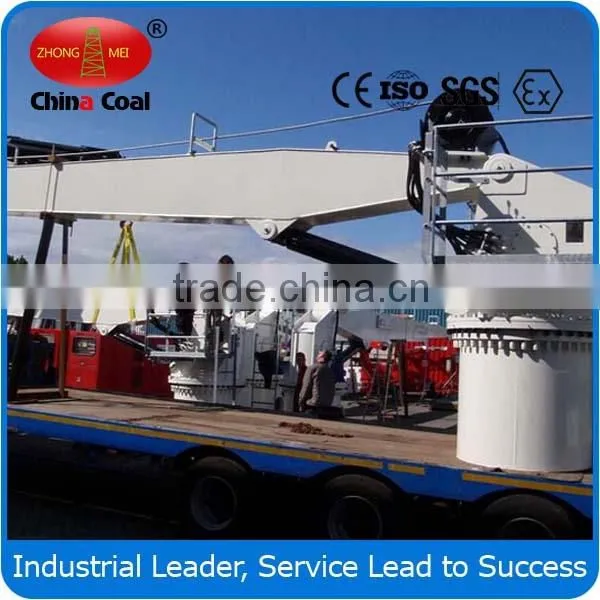

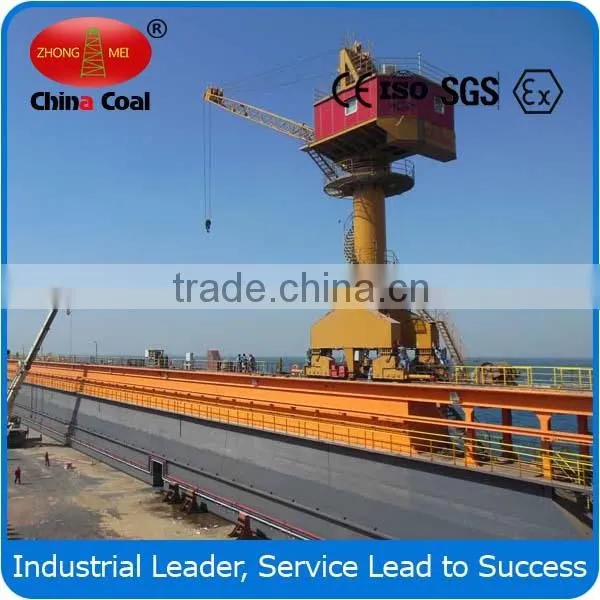

Figure Photos
