Specifications
1.aluminum 6063 material2.anodizing:silver/champagne
3.series of dimensions

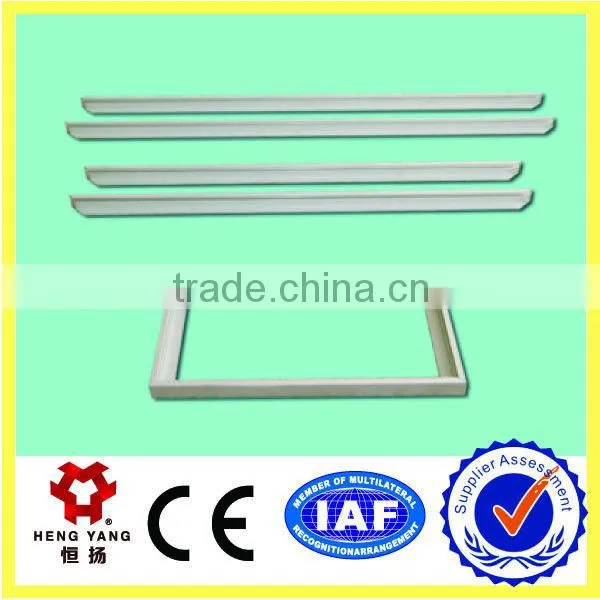

aluminium solar frame
30*25mm suitable for 30-120W solar modules.
35*35mm suitable for 160-220W solar modules.
40*35/45*35/50*35 suitable for 200w above.
other more sizes: 25*35 , 30*35, 46*40, 50*35 etc.
1. 6063 aluminium solar frame
1).Aluminum extrusion profile
2).Aluminum alloy:6000 series
3).All kinds of surface treatment, such as milling finish, powder coated, anodizing finish of all colors
4).Guaranteed quality and good price
5).Good surface finish, no burr or dirt
6).Strict inspection
2:Material
Chemical Composition |
6063 T5 | ||||||||
| Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr | Others | total others |
| 0.2-0.6 | M.0.35 | M. 0.1 | M. 0.1 | 0.45-0.9 | M. 0.1 | M. 0.1 | M. 0.1 | M. 0.05 | 0.15 |
| Mechanical property | |||||||||
| Yield Strength | Tensile Strength | Extensibility | hardness | ||||||
| 110Mpa | 160Mpa | 8% | 8 HW | ||||||
3:Aluminium profiles(classifcation according to surface treatment requirements)
1.Anodizing profiles
2.Electrophresis profiles
3.Powder coating profiles
4.Wood finish profiles
5.Polished profiles
6.PVDF coating profiles
4:Manufacture technological process:
Chief manufacture technological process:
aluminium ingot & alloy→melting and casting→extrusion→powder coating→pouring rubber for heat insulation→checkout→packing→PVDF coatinganodizingelectrophoresis→put in products warehouse.

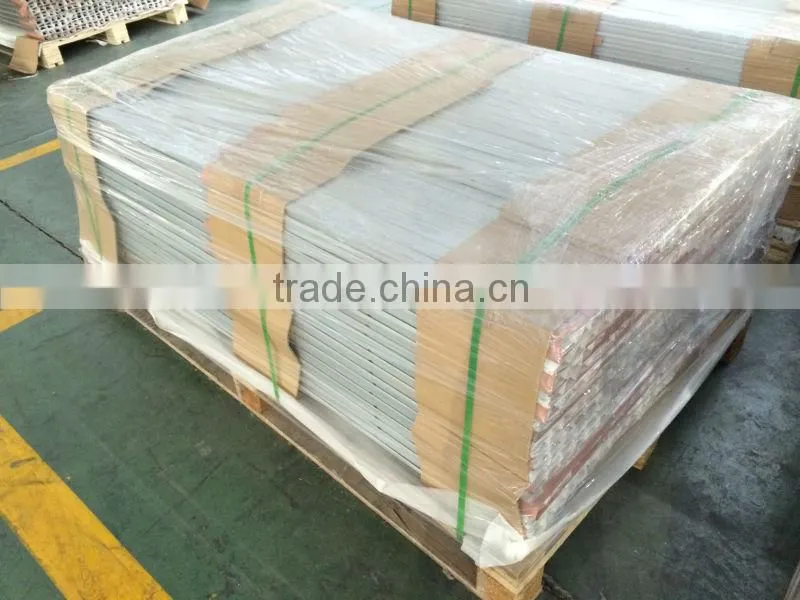

5:Packing
EP Paper inside than carton box
6:Quality Certifcation:
