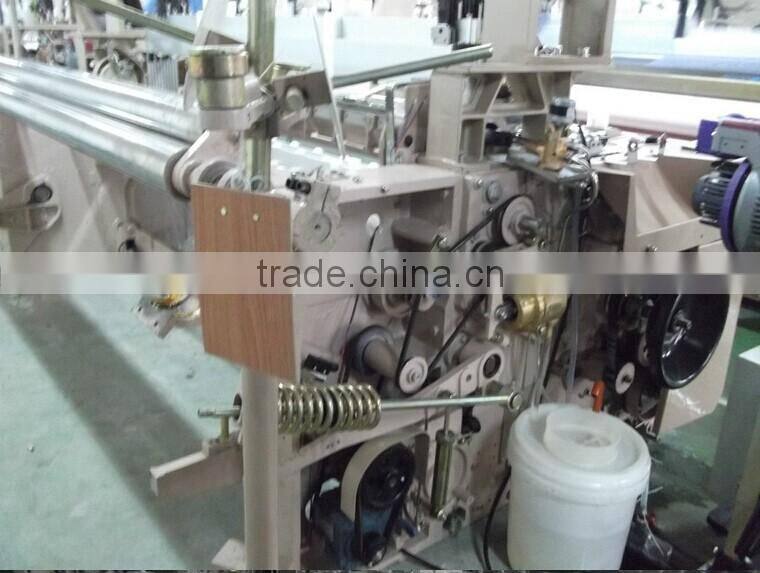

Help CenterHigh Speed and Singel Noozle Water Jet Loom Textile Machine
Related Products
-
HLY851water Jet LoomUS$ 5,000 - 10,000MOQ: 1 Set -
2015 Now Technology High Speed Double Beam Water Jet Loom With DobbyUS$ 4,500 - 12,000MOQ: 1 Set
-
190cm High Speed Single Nozzle r Water Jet Loom MachineUS$ 5,000 - 12,500MOQ: 1 Set
-
HLY901water-jet Jacquard LoomUS$ 4,800 - 10,000MOQ: 1 Set
-
HLY922 SERIES HIGH SPEED HEAVY WATER JET LOOMUS$ 5,000 - 15,000MOQ: 1 Set
Reed space |
150,170,190,210,230,260,280,320,340,360,380,420,450cm |
|
Useful reed space |
Nominal R/S minus 2cm to 50cm |
|
Frame |
Box frame type( Driving section is in an oil bath) |
|
Driving system |
Brake |
Direct stop mechanism by an electromagnetic brake |
Control |
Push and touch button(Arrange, run, stop, forward inching, reverse inching, one step reverse) |
|
Motor |
Rush start motor |
|
Motor power |
1.5kw, 1.8kw, 2.2kw, 2.8kw, 3.2kw, 3.7kw, 4.5kw |
|
Weft beating |
Crank beating 114X10mm |
|
Let-off |
System |
Automatic mechanical and continuous let-off or electronic let-off. One or vertical two roll |
Warp beam |
800mm Flange,178mm barrel |
|
Take-up |
System |
Mechanical or electronic continuous take-up |
Weft density |
Normal:5-60picks/cm,Special:3-70picks/cm |
|
Cloth wind-up diameter |
420mm, 520mm, 600mm |
|
Shedding |
Plain shedding |
Crank shedding( heald frame number:2 to 6), 1/1 fabric |
Cam shedding |
Cam shedding ( heald frame number:2-10),plain, twill, satin fabric |
|
Dobby shedding |
Positive/negative Heald frame number:16(max),electronic and mechanical reading system, plain, twill, satin or complex design |
|
Jacquard shedding |
1408, 2688, 5120 lifting hooks, electronic jacquard device |
|
Weft Insertion |
Measuring & storage |
Mechanical measuring turbo blower(single nozzle) or electronic weft feeder(1-4 nozzles) |
Pump |
Type: M,L,H, single or double |
|
Piston of pump |
Shutal ceramic piston |
|
Nozzle needle |
ST20/10, ST30/10, ST45/20, SD75/40. |
|
Weft filling |
One, two, three, four nozzle |
|
Filling feeler |
Electronic, optical, and self-control |
|
Selvage |
Twisting by star, planetary gears |
|
|
Electrical Part |
Made in China&import |
Main control board, AC contactor, transformer, NC interface, selvage break system ,waste yarn break system, overheating and overload protection |
|
Electronic meter |
Count and display: rotational speed, total yield, team yield, total efficiency, team efficiency Cloth length auto control, stopping analysis and display |
|
Other devices |
A cloth roller, a weft density gear, a waste wire bucket ,a set of nozzle needl |
|
Our Services:
1. Reply your inquiry in 24 working hours.
2. Customized design is allowed. UEM&UBM are welcomed
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineer and staff.

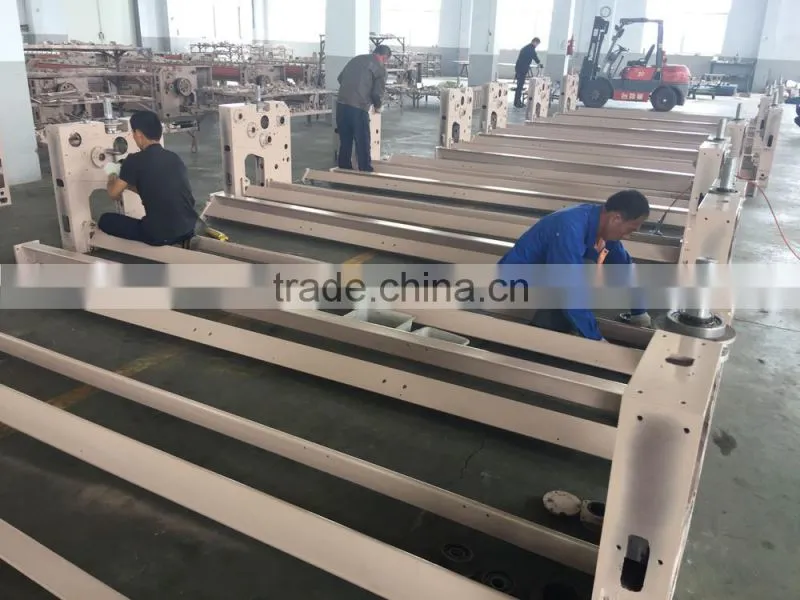

4. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 15 years, competitive with good quantity.
5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
Packing & Shipping:
Packaging |
Standard Export Packing Or Based On Customers' Demands |
Delivery |
15-30 days at confirmation of order. |
Shipping |
Our arrangements or according to customers instruction. |
MAKE YOUR WEAVING SUCCESS!
