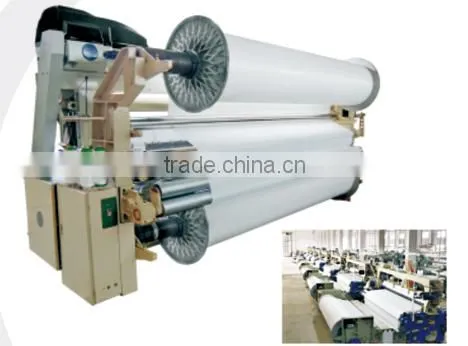

Help Center2015 Now Technology High Speed Double Beam Water Jet Loom With Dobby
Related Products
-
190cm High Speed Single Nozzle r Water Jet Loom MachineUS$ 5,000 - 12,500MOQ: 1 Set -
HLY901water-jet Jacquard LoomUS$ 4,800 - 10,000MOQ: 1 Set
-
HLY922 SERIES HIGH SPEED HEAVY WATER JET LOOMUS$ 5,000 - 15,000MOQ: 1 Set
-
HLY851L Series Super Wide Heavy Water Jet LoomUS$ 4,800 - 10,000MOQ: 1 Set
-
China Best Quality High Speed HLY408-III-2 Series 2-pump 3- Nozzle Heavy Water-jet LoomUS$ 4,800 - 15,000MOQ: 1 Set

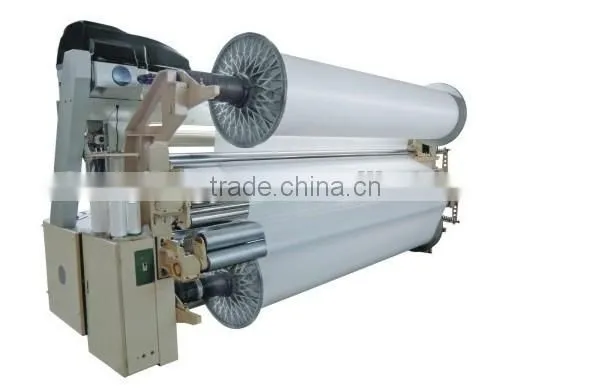

HLY-900 the dual warp beam high-speed heavy water jet loom is on the basis of HLY-851 series model and to be professional improvement and innovation, increasing a flat warp beam, thereby it makes a wide use in fabric more color, organization and density. The speed, efficiency, stability also have overall improvement. This type can match electronic weft storage device, multi-jet, cam openings devices, dobby opening device.
HLY-900 SERIES DOUBLE BEAM WATER-JET LOOM Main technical parameters
1)Optional breadth: 135,190,210,230,260,280,340,360,420CM
2)Weft insertion rate: 2,280m/min max.
3)Speed: Maximum 1200RPM (Working speed depend on fabric specification)
4) Head frame: Max. 8pcs for plain, Max.10pcs for cam, Max. 16pcs for dobby
5) Power:1.5~4.5KW
6) Weft density: 5~100pick/cm
Our Services:
1. Reply your inquiry in 24 working hours.
2. Customized design is allowed. UEM&UBM are welcomed
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineer and staff.
4. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 15 years, competitive with good quantity.
5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
Packing & Shipping:
Packaging |
partial with wooden package |
Delivery |
15-30 days at confirmation of order. |
Shipping |
Our arrangements or according to customers instruction. |
MAKE YOUR WEAVING SUCCESS!
