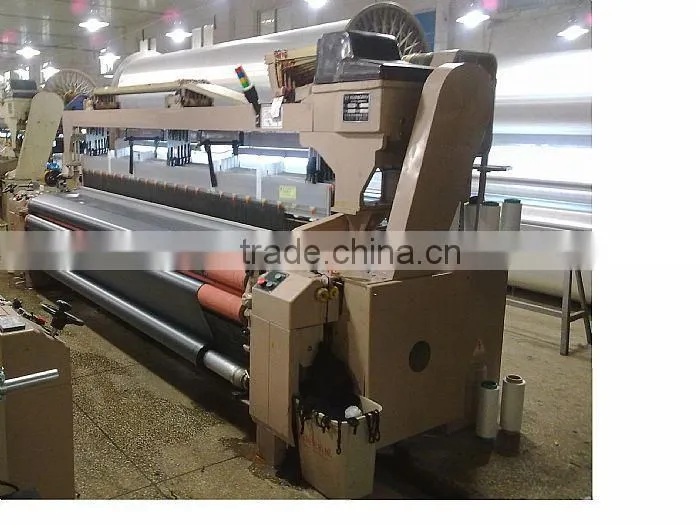

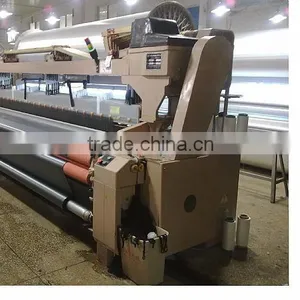

Help CenterDouble Beam Water Jet Loom Textile Machine
Related Products
-
The Factory Direct Sales High Speed Double Nozzle Water Jet Loom Textile MachineUS$ 4,500 - 14,500MOQ: 2 Sets -
The Best Quality Plastic Weaving Machine for Geotextile / Tarpaulin for SaleUS$ 4,500 - 15,000MOQ: 2 Sets
-
China Best Quality High Speed Electronic Weft Feeder Water Jet Loom Machine for SaleUS$ 5,500 - 13,500MOQ: 1 Set
-
HLY851 Heavy Type Water Jet Looms With DobbyUS$ 7,800 - 12,000MOQ: 1 Set
-
2015 New Technology Two Pump Super Wide Heavy Water Jet Loom Weaving MachineUS$ 4,800 - 15,000MOQ: 1 Set
1)Optional breadth: 135,190,210,230,260,280,340,360,420CM
2)Weft insertion rate: 2,280m/min max.
3)Speed: Maximum 1200RPM (Working speed depend on fabric specification)
4) Head frame: Max. 8pcs for plain, Max.10pcs for cam, Max. 16pcs for dobby
5) Power:1.5~4.5KW
6) Weft density: 5~100pick/cm
| Working range | Polyster yarn |
| Reed width (cm) | Nominal:150,170,190 ,210,230 260,280 330 360 |
| Useful reeding width:reduct 0-60cm | |
| Filling selection | 1 color 2 color at will |
| Weft density range | 6-60pick/cm |
| Motor | 3.5kw,4.6kw selected according to the certain model |
| Shedding | Plain type 2-8pcs heald frame |
| Positive cam machine,4-10pcs heald frame | |
| Dobby(mechanical),upper negative dobby or electronic dobby,2-16 heald frame (according to customer’s demands) | |
| Let-off | Electronic let off-ELO |
| Mechanical let-off | |
| Flange diameter:800mm | |
| Take-up | Mechanical take-up |
| Electronic take-up | |
| Upper and down temple(according to the varity of fabric) | |
| Waste filling removel | Mechanical take-up 3 roller |
| Cutter | Mechanical cutter |
| OPERATION | – DRIVEN BY RUSH START MOTOR.STOP BY ELECTROMAGNETIC BRAKE AT PRGRAMMED POSITION |
| ARRANGE,RUN,FORWARD INCHING,REVERSE INCHING,PROGRAMMED POSITION STOP AFTER | |
| ONE CYCLE REVERSE ROTATION. | |
| BEATING | CRANK BEATING,SWORD BEATING SYSTEM OIL BATH LUBRICATION SYSTEM. |
| FILLING INSERTION : | SINGLE PUMP (PLUNGER TYPE SPRING PRESSURE SYSTEM) |
| DOUBLE NOZZLE (NEEDLE TYPE CERAMIC ) STBILIZER SYSTEM | |
| FEELER – IR FEELER OR OPF FEELER,USING OPTICAL CABLE. | |
| YARN PACKAGE STAND | FLOOR MOUNTED HORIZONTAL STAND FOR – 4 PACKAGE.(2 COLOUR ) |
| CATCH CORD | SPINDLE TWISTING SYSTEM. |
| TEMPLE | TOP MOUNTED,2 BARREL TYPE WITH 2 RING |
| WATER SUCTION | SLIT TUBE SUCTION (BLOWER TYPE ) |
Our Services:
1. Reply your inquiry in 24 working hours.
2. Customized design is allowed. UEM&UBM are welcomed
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineer and staff.
4. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 15 years, competitive with good quantity.
5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
Packing & Shipping:
Packaging |
partial with wooden package |
Delivery |
15-30 days at confirmation of order. |
Shipping |
Our arrangements or according to customers instruction. |
MAKE YOUR WEAVING SUCCESS!
