1,Adopt new Tsudakoma technology
2,lower maintenance and breakdown,
3,Efficient in Power consumption.
1. Products features :

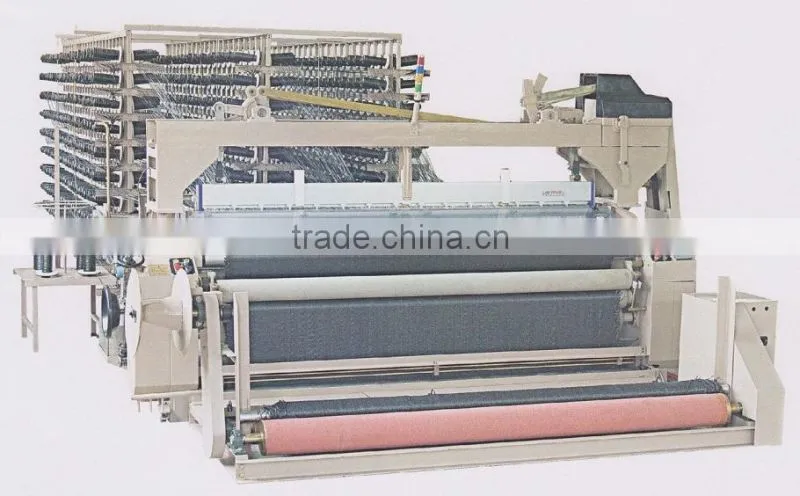

HLY-618 is developed with combination of Korea plastic weaving technology and Tsudakoma high speed weaving machine . It is characterized by high speed , high efficiency , fine flatness of fabric ,high density ,wide application range , easy adjustment ,low maintenance cost and low cost of labor and power .
The model is designed with plain and cam shedding ,accompanied by single nozzle and electronic feeder. It's mainly designed to produce plain and satrin plastic fabric which is widely used to manufacture such packing materials as collection bag ,tarpaulin ,woven bags and getotextiles .
2. Main technical parameters
Working range |
Polyester yarn |
Reed width (cm) |
135,190,210,230,260,280,340,350,360 |
Filling selection |
1 color 2 color at will |
Weft density range |
5-80pick/cm |
Motor |
1.5kw~4.5kw selected according to the certain model |
Shedding |
Plain type 2-8pcs heald frame |
Positive cam machine,4-10pcs heald frame | |
Dobby(mechanical),upper negative dobby or electronic dobby,2-16 heald frame (according to customer’s demands) | |
Let-off |
Electronic let off-ELO |
Mechanical let-off | |
Flange diameter: 800mm , 914mm , or 1000mm | |
Take-up |
Mechanical take-up |
Electronic take-up | |
1) Two bearing type 2) Special design for thick fabric ( optional part) | |
Waste filling remove |
1,Spindle twisting system 2. Electronic twisting system for waste-filling |
Cutter |
Mechanical cutter |
operation |
-driven by rush start motor .stop by electromagnetic brake at programming position |
Arrange,run, forward inching,reverse inching,programmed position stop after | |
One cycle reverse rotation | |
beating |
Crank beating,sword beating system oil bath lubrication system |
filling insertion : |
Single pump(plunger type spring spring pressure system) double nozzle( needle type ceramic)stabilizer system feeler-infrared feeler or OPF feeler,using optical cable |
Yarn package stand |
Floor mounted horizontal stand for-4 package. |
Catch cord |
Spindle twisting system |
temple |
Top mounted,2 barrel type with 2 ring |
Water suction |
Slit tube type suction system with high pressure blower
|
Our Services:
1. Reply your inquiry in 24 working hours.
2. Customized design is allowed. UEM&UBM are welcomed
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineer and staff.
4. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 15 years, competitive with good quantity.
5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
Packing & Shipping:
Packaging |
few parts inbox,most parts fixed in container. |
Delivery |
15-30 days at confirmation of order. |
Shipping |
Our arrangements or according to customers instruction. |
