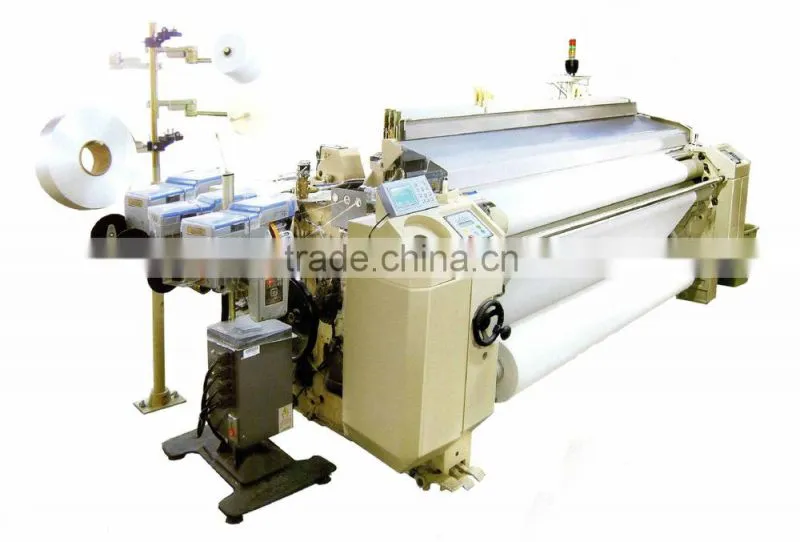

Help CenterChina Best Quality High Density Water Jet Looms Weaving Loom
Related Products
-
The Factory Direct Sales Automatic Water Jet Looms Weaving LoomUS$ 4,800 - 15,000MOQ: 1 Set -
China Best Quality With Low Price High Speed Single Pump Water Jet Loom Textile Weaving MachineUS$ 5,400 - 9,800MOQ: 1 Set
-
2015China Best Quality With Low Price New High Speed Water Jet Loom MachineUS$ 5,500 - 12,500MOQ: 1 Set
-
China Best Quality High Speed Electronic Water Jet Jacquard Loom MachinesUS$ 4,500 - 15,000MOQ: 2 Sets
-
The Factory Direct Sales HLY-922 High Speed Double Nozzle Water Jet Loom Textile MachineUS$ 4,500 - 14,500MOQ: 2 Sets
| ||
Item |
Specification |
|
shedding system |
plain shedding |
Crank harness standard 4 heald frame (additive to 6 pieces) |
cam shedding |
10 piece the most |
|
dobby shedding |
16 piece the most |
|
loom width specifications |
150/170/190/210/230/240/260/280/320/360(Can be customized) |
|
Effective work width |
Maximum is standard width(Adjustable range from standard width reduction 50-80 cm) |
|
drive |
start |
Super starting motor moment drive |
moter power |
2.2/2.8/3.0/3.75/4.5/5.5kw |
|
brake |
Electromagnetic clutch brake |
|
beating system |
beating system |
Crank shaft drive beating-up many reed feet |
Beating-up dynamic range |
66mm 76mm 86mm 96mm |
|
into weft |
into weft way |
single nozzle:single pump single nozzle |
double nozzle:single pump double nozzle (double pump double nozzle can choice) | ||
pump |
Spring pressure piston pump |
|
nozzle |
Clearance adjustable ring nozzle (stainless steel or ceramic needle can choose) |
|
measuring & storing device |
Mechanical transmission drum length measuring (weft into automatic cycle) |
|
double nozzle:electronic feeder(can choose domestic and international famous brands) | ||
weft feeler |
Mechanical ground weft photoelectric induction ground weft |
|
let-off system |
let-off way |
Automatic mechanical negative type continuous let off device (with standard) |
The let-off plate size |
800 mm standard |
|
take up system |
take up type |
electronic take up type (standard) |
Maximum cloth diameter |
600 mm (cam, dobby open) 520 mm (crank open) |
|
cutting system |
Mechanical scissors device |
|
Lubrication system |
Main drive for oil bath way, centralized automatic refueling |
|
weft density |
Short fiber 5.83-233.24 filament: 2.2-135 |
|
selvage form |
Planetary gear wring side mode |
|
Our Services:
1. Reply your inquiry in 24 working hours.
2. Customized design is allowed. UEM&UBM are welcomed
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineer and staff.
4. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 15 years, competitive with good quantity.
5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
Packing & Shipping:
Packaging |
few parts inbox,most parts fixed in container. |
Delivery |
15-30 days at confirmation of order. |
Shipping |
Our arrangements or according to customers instruction. |
MAKE YOUR WEAVING SUCCESS!
