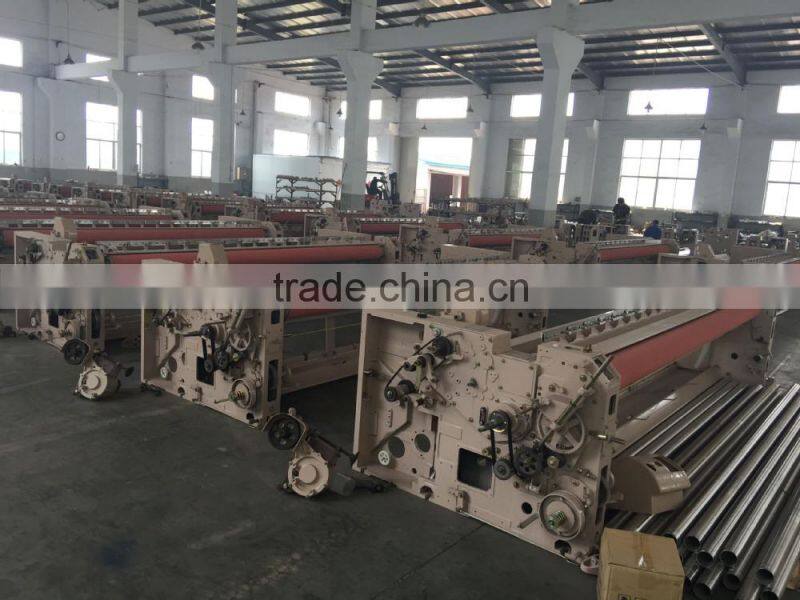

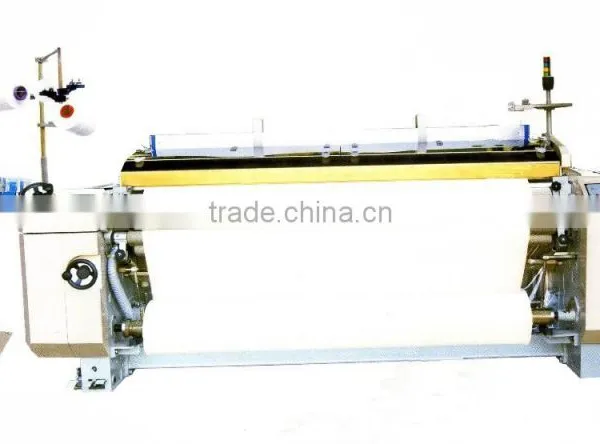

Help CenterThe Factory Direct Sales HLY-922 High Speed Double Nozzle Water Jet Loom Textile Machine
Related Products
-
The Factory Direct Sales With Low Price 4 Nozzle Water Jet Loom Textile MachineUS$ 4,500 - 15,000MOQ: 2 Sets -
190cm Plain Shedding Water Jet Loom Weaving MachineUS$ 4,800 - 15,000MOQ: 2 Sets
-
Factory Direct Sales Plastic Weaving Machine for Geotextile / TarpaulinUS$ 4,500 - 15,000MOQ: 2 Sets
-
Professional High Speed Water Jet Loom Machine for SaleUS$ 4,500 - 8,000MOQ: 2 Sets
-
HLY622 Two Pump Super Wide Heavy Water Jet Loom Weaving MachineUS$ 4,800 - 15,000MOQ: 2 Sets
Working range |
Polyester yarn |
Reed width (cm) |
135,190,210,230,260,280,340,350,360 |
Filling selection |
1 color 2 color at will |
Weft density range |
5-80pick/cm |
Motor |
1.5kw~4.5kw selected according to the certain model |
Shedding |
Plain type 2-8pcs heald frame |
Positive cam machine,4-10pcs heald frame | |
Dobby(mechanical),upper negative dobby or electronic dobby,2-16 heald frame (according to customer’s demands) | |
Let-off |
Electronic let off-ELO |
Mechanical let-off | |
Flange diameter: 800mm , 914mm , or 1000mm | |
Take-up |
Mechanical take-up |
Electronic take-up | |
1) Two bearing type 2) Special design for thick fabric ( optional part) | |
Waste filling remove |
1,Spindle twisting system 2. Electronic twisting system for waste-filling |
Cutter |
Mechanical cutter |
operation |
-driven by rush start motor .stop by electromagnetic brake at programming position |
Arrange,run, forward inching,reverse inching,programmed position stop after | |
One cycle reverse rotation | |
beating |
Crank beating,sword beating system oil bath lubrication system |
filling insertion : |
Single pump(plunger type spring spring pressure system) double nozzle( needle type ceramic)stabilizer system feeler-infrared feeler or OPF feeler,using optical cable |
Yarn package stand |
Floor mounted horizontal stand for-4 package. |
Catch cord |
Spindle twisting system |
temple |
Top mounted,2 barrel type with 2 ring |
Water suction |
Slit tube type suction system with high pressure blower
|
1. Reply your inquiry in 24 working hours.
2. Customized design is allowed. UEM&UBM are welcomed
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineer and staff.
4. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 15 years, competitive with good quantity.
5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
Packing & Shipping:
Packaging |
few parts inbox,most parts fixed in container. |
Delivery |
15-30 days at confirmation of order. |
Shipping |
Our arrangements or according to customers instruction. |
