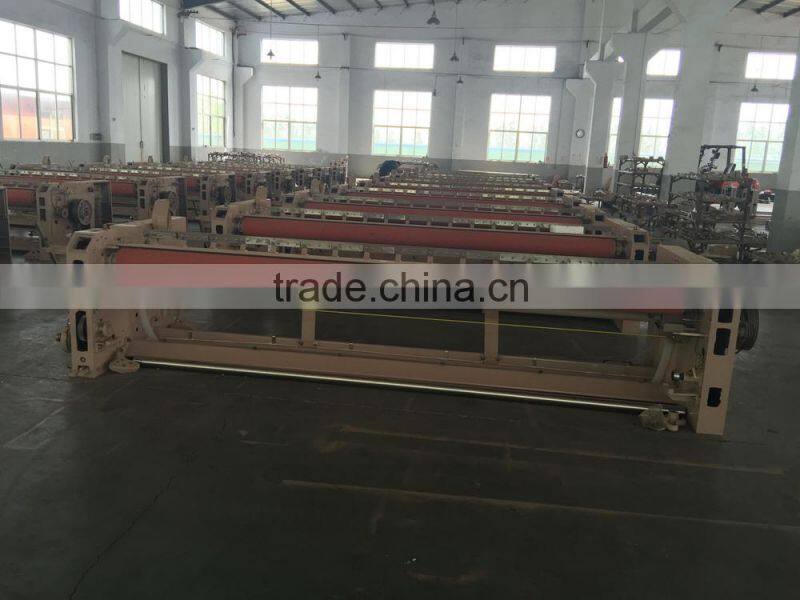

Help CenterThe Factory Direct Sales Air Jet Loom Weaving Textile Machine
Related Products
-
China Best Quality HLY-708 Medical Gauze Loom for Making Bandage for SaleUS$ 4,500 - 14,500MOQ: 2 Sets -
China Best Quality High Speed Air Jet Loom Cotton Machinery for SaleUS$ 7,500 - 10,000MOQ: 2 Sets
-
China Best Quality Medical Gauze Loom for Making Bandage for SaleUS$ 4,500 - 14,500MOQ: 2 Sets
-
HLY-710 China Best Quality High Speed Air Jet Loom Cotton Machinery for SaleUS$ 7,500 - 10,000MOQ: 2 Sets
-
HLY708(135cm-190cm) Air Jet Loom for Medical Gauze/medical Gauze Weaving LoomUS$ 4,500 - 13,000MOQ: 1 Set
1.Hard frame and new structure
The strong frame was adopted robust wallboard and solid beam,Furthermore,we increase middle support to ensure that our loom could work in high speed,low voice,and the reed become wider.
2.Optimized design of beating structure
Use the four linkage beating structure which is optimized designed by the computer,the beating vibration is short,stoke is small,correspoding the weft time is long,the narrow is range of machines adopt 4 linkage beating which has been obtained the excellent evaluation in the of high-speed adaptive inspect.while,the wide range of machines adopt 6 linkage beating in weft's time which is much more enough,thus to realize the stable beating when run with high speed.
3.Rocking shaft intermediate supporting device.
Rocking shaft adopts solid shaft which is with supporting device in middle.it increases the rigidity of beating structure,the accurate and powerful beating in high speed is the guarantee for weaving the high-density fabrics.
4.Lubrication
The main drive shaft to take oil bath lubrication,the general part utilized centralized system to enforce lubrication,the aim is to improve the working lift of components.
5.electronic let-off
To detect the total inspection of warp yarns through tension sensor,the CPU handles the change of warp yarns tension caused by shedding or relax warp,let-off,take-up's change of warp beam,and instructs the servo motor to drive,warp beam,thus,this can keep the balanced tension in working procedure and eliminate the secret-mark,ensure the fabric equilibrium and formation.the machine adopts rigidity frame,warp beam gear with large diameter and positive relax warp driving shaft which is built-in oil bath,which makes the weaving machine furture to realize high speed and can be more sensitive to adapt the weaving requirements for high-density fabrics.
6.Take-up device
We adopt two forms of take-up:machanical continuous take-up and electronic take-up,it is very effective to prevent the stop-mark to combine with electronic take-up.it is very effective to prevent the stop-mark to combine with electronic let0off by accurate forwarder and reverse.
7.filling insertion
Filling insertion used the way of main nozzle+auxiliary nozzle+different reeds,issued by CPU frequency electromagnetic valve to realize the control of injection timing.
8.Double probe feeler
Double probe feeler,it is not only to discovery short or bending weft,but also to find the weft which was blowed,thus to ensure foolproof.
9.Energy saving
The support block is near from auxiliary nozzle,it has a short distance to supply air,better adapted to the high speed operation and lower energy consumption.
1. Reply your inquiry in 24 working hours.
2. Customized design is allowed. UEM&UBM are welcomed
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineer and staff.
4. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 15 years, competitive with good quantity.
5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
Packing & Shipping:
Packaging |
few parts inbox,most parts fixed in container. |
Delivery |
15-30 days at confirmation of order. |
Shipping |
Our arrangements or according to customers instruction. |
MAKE YOUR WEAVING SUCCESS!
