China Best Quality Medical Gauze Loom for Making Bandage for Sale

China Best Quality Medical Gauze Loom for Making Bandage for Sale photo-1
US$ 4,500 - 14,500 MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Air Jet Loom
Application:
Making medical gauze
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Air Jet Loom
Application Making medical gauze
Production Capacity 96%-98%
Place of Origin Shandong, China
Brand Name Honglongyuan
Model Number HLY-708
Dimension(L*W*H) 1960*1700*1500mm
Weight 2000kg
Power(W) 1.5kw
Certification ISO9001:2008 certificate
Warranty 1 years
After-sales Service Provided Engineers available to service machinery overseas
Specifications
 1,higher production capacity,
2,lower maintenance and breakdown,
3,Efficient in Power consumption.

HLY-708 air jet loom for medical gauze is innovated and developed based on existing advanced design to replace shuttle loom which has many shortcomings as low efficiency,high failure rate ,complex processes and much labor.This model is suitable to weave 21-40lines absorbent gauze(sizing free).The frame and supporter bar of high rigidity reduced vibration,adding more t stability.High level of electronic automation system is able to display working efficiency and production volume of each shift.You can also set the machine to auto stop at certain production length.The model is designed with advanced air jet cutter which leaves smooth edges,improving fabric quality.
The adoption of single nozzle electric feeder improves machine-star rate ,saving weft.main transmission parts are lubricated in oil bath,reducing maintenance cost.Air is supplied by double air pump,which reduces cost in comparison with centralized air supply.What’s more this model eliminates weft and yarn rolling and fabric cloth,thus reducing labor cost.


Optional accessories:

Take-up:1.inside take-up(max. 520)

        2.outside take-up(max. 1200)

Let-off:1.passive let-off

        chanical let-off

Beam pipe:1.shuttle loom 600beam pipe with iron pan

          2.air jet loom 800 beam pipe with aluminum


Main dimensions and specifications:

1.Reed Space(nominal):135 150 190(cm)

2.Feeder:Single nozzle electronic feeder

3.Power electromagnet brake pan;Motor:1.1KW for 135cm 150cm,1.5KW for 190cm

4.Weft insertion:single steel tube nozzle ,pipe-shaped reed

5.Shedding:crank opening with two pieces heald frame

6.Let-off:passive or mechanical

7.Take-up:inside or outside machine body

8.Beating:four shedding lever winding beating

9.Selvage: cloe and rough selvage

10.Running speed :400~500RPM

11.Weight:1.3~1.8T

12.Dimensions:135CM3050mm*1540mm

               150CM3200mm*1540mm

               190CM 3600mm*1540mm

               vicewidth1300mm for outside take up
Our Services:



1. Reply your inquiry in 24 working hours.



2. Customized design is allowed. UEM&UBM are welcomed



3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineer and staff.



4. Professional factory: We are  manufacturer, specializing in producing all kinds of machinery for more than 15 years, competitive with good quantity.



5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.



Packing & Shipping:





Packaging

few parts inbox,most parts fixed in container.

Delivery

15-30 days at confirmation of order.

Shipping

Our arrangements  or according to customers instruction.

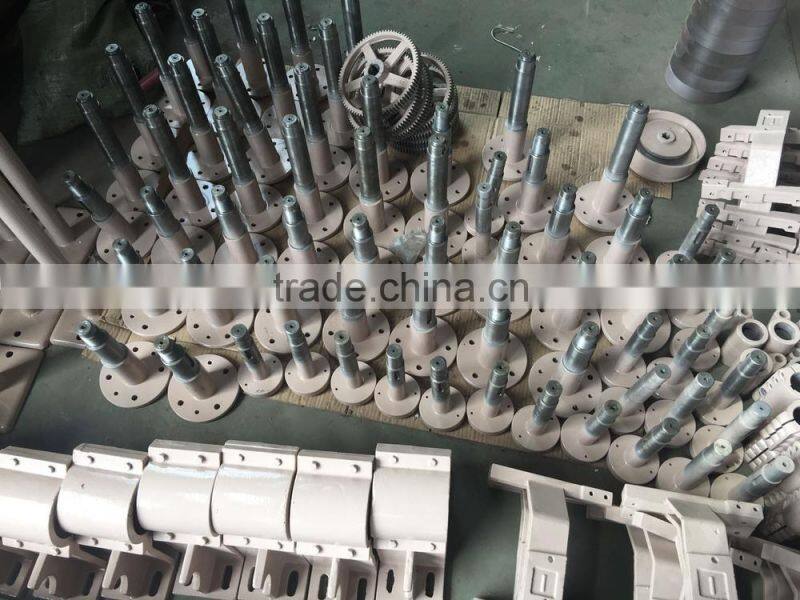

 China best quality medical gauze loom for making bandage for sale

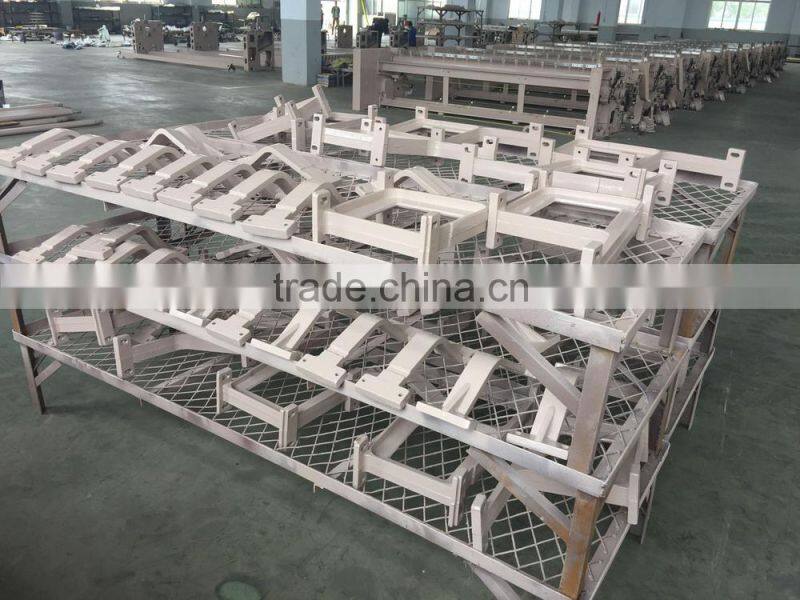

China best quality medical gauze loom for making bandage for sale

China best quality medical gauze loom for making bandage for saleChina best quality medical gauze loom for making bandage for sale

China best quality medical gauze loom for making bandage for sale

China best quality medical gauze loom for making bandage for sale
