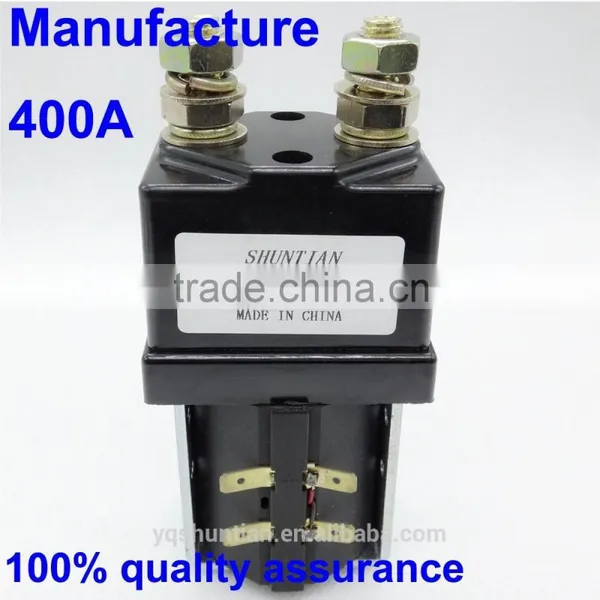

SW200 Single Pole Electrical Magnetic dc Contactor 400A Bus Bar Latching Type

SW200 Single Pole Electrical Magnetic dc Contactor 400A Bus Bar Latching Type thumbnail-1
SW200 Single Pole Electrical Magnetic dc Contactor 400A Bus Bar Latching Type thumbnail-2
SW200 Single Pole Electrical Magnetic dc Contactor 400A Bus Bar Latching Type thumbnail-3
SW200 Single Pole Electrical Magnetic dc Contactor 400A Bus Bar Latching Type thumbnail-4
SW200 Single Pole Electrical Magnetic dc Contactor 400A Bus Bar Latching Type photo-1
SW200 Single Pole Electrical Magnetic dc Contactor 400A Bus Bar Latching Type photo-2

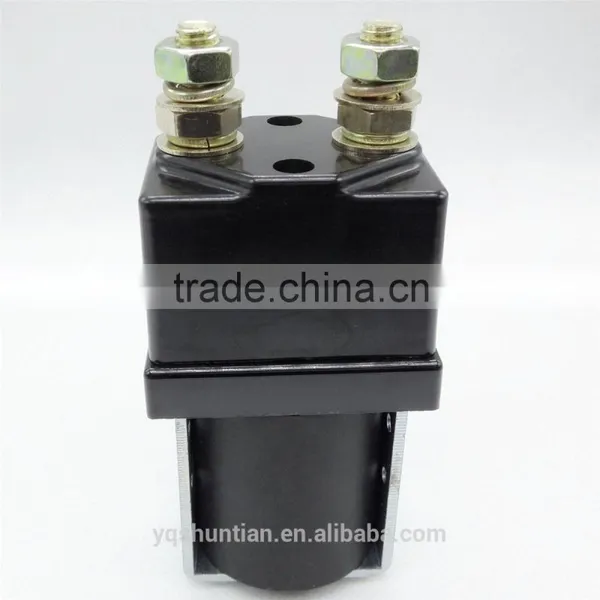

SW200 Single Pole Electrical Magnetic dc Contactor 400A Bus Bar Latching Type photo-3
SW200 Single Pole Electrical Magnetic dc Contactor 400A Bus Bar Latching Type photo-4
US$ 22.95 - 31.15 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
shuntian
Model Number:
SW200
Contact Supplier Request Quote Chat Now
Yueqing Shuntian Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name shuntian
Model Number SW200
Electricity Type DC
Number of Pole 2
Phase 1
Main Circuit Rating Voltage Other, 12,24,48,60,72,80,110, etc.
Main Circuit Rating Current Other, 400A

1.Application

For electric coontrol system of communication power supply, engineering machine, electromotion forklift, motor car, train, watercraft and UPS etc

2.Basic technical data



 SW200 single pole Electrical Magnetic dc contactor 400A Bus Bar Latching Type

NO.

Parameters

SW200/48V

1

Rated coil volt(VDC)

12,24,36,48,60,72,110,etc.

2

Coil power dissipation(W)

11~14

3

Rated volt of contact circuit(A)

400A

4

Operating volt in cold state at (20 ±5) °C

Pick-up: Not above 70% of rated coil volt

Release: (10%~40%) of rated coil volt

5

Max. operating time at rated volt (ms)

Coil with no suppression circuit

 30

6

 Rated volt of contact circuit(VDC)

 60

7

  Pick-up Voltage

  (40-70) % of coil rated voltage

8

  Drop-out Voltage

  (5-30) % of coil rated voltage

9

 Insulation Resistance

  Min. 100MΩ at 500VDC

10

 Puncture strength (volt)

50HZ 1000 VAC 1 min

11

  Operate Time

  Max. 50mSec.

12

  Release Time

  Max. 50mSec.

13

  Ambient Temper

  -25°C~+60°C

14

 Electric life

 20000 Ops

15

 Mechanical life

 100000

16

 Working duty

 Continuous

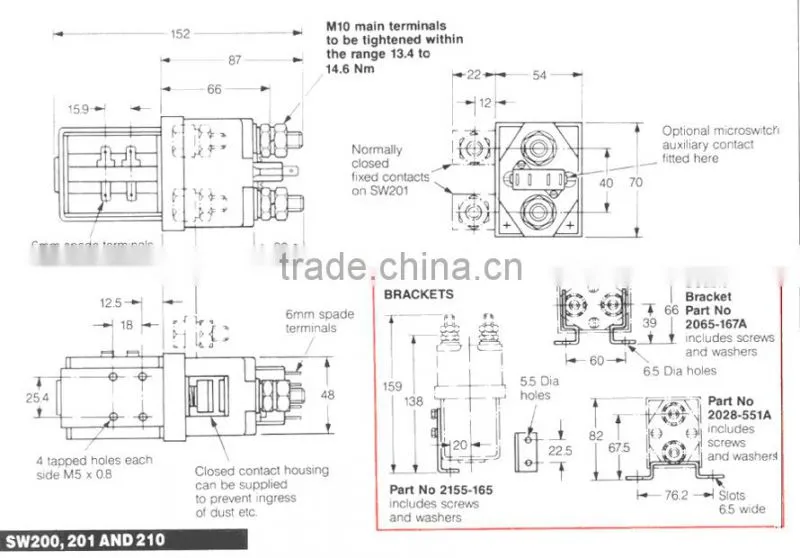

SW200 single pole Electrical Magnetic dc contactor 400A Bus Bar Latching Type
