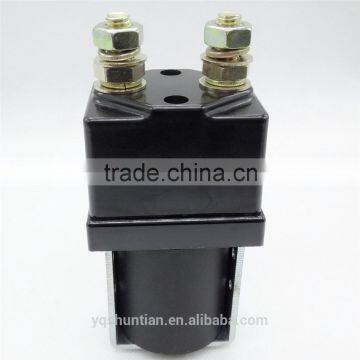

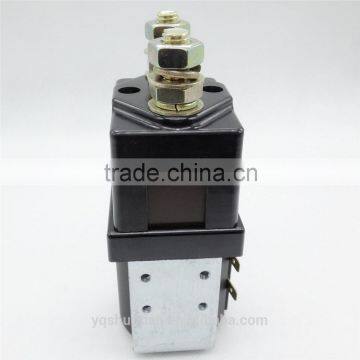

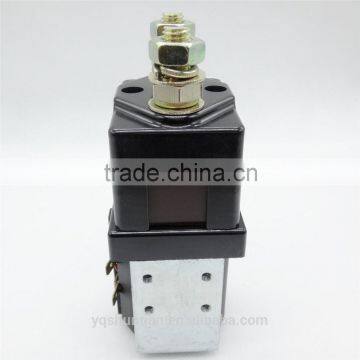

DC Contactor Similar Albright Contactor SW200

Name: DC Contactor Similar Albright Contactor SW200
Brand: shuntian
SKU: 125616673
Availability: InStock

US$ 22.95 - 31.15 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

shuntian

Model Number:

SW200

Yueqing Shuntian Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name shuntian

Model Number SW200

Electricity Type DC

Number of Pole 2

Phase 1

Main Circuit Rating Voltage Other, 12,24,48,60,72,80,110, etc.

Main Circuit Rating Current Other, 400A

1.Application

For electric coontrol system of communication power supply, engineering machine, electromotion forklift, motor car, train, watercraft and UPS etc

2.Basic technical data

NO.	Parameters	SW200/24V
1	Rated coil volt(VDC)	12,24,36,48,60,72,110,etc.
2	Coil power dissipation(W)	11~14
3	Rated volt of contact circuit(A)	400A
4	Operating volt in cold state at (20 ±5) °C	Pick-up: Not above 70% of rated coil volt Release: (10%~40%) of rated coil volt
5	Max. operating time at rated volt (ms) Coil with no suppression circuit	30
6	Rated volt of contact circuit(VDC)	60
7	Pick-up Voltage	(40-70) % of coil rated voltage
8	Drop-out Voltage	(5-30) % of coil rated voltage
9	Insulation Resistance	Min. 100MΩ at 500VDC
10	Puncture strength (volt)	50HZ 1000 VAC 1 min
11	Operate Time	Max. 50mSec.
12	Release Time	Max. 50mSec.
13	Ambient Temper	-25°C~+60°C
14	Electric life	20000 Ops
15	Mechanical life	100000
16	Working duty	Continuous
