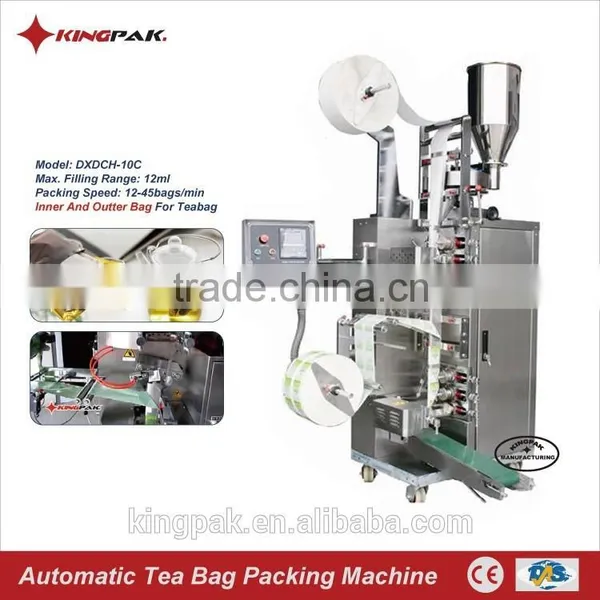

Overview
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
• The automatic tea bag packing machine is specially designed by the mechanical hand bag into the outer bag, inside and outside the bag while packing achieved. Because of the robot into a bag not only greatly increased the rate but also reduced the size of the outer bag, seal the bag to make more beautiful, generous.
• Inside the bag for the triangular envelope type, the available heat sealable filter paper or other material that can be done automatically bag, measuring, filling, cutting, sealing, counting (and pre-count), finished output function.
• Packaging materials: inside the bag using heat-seal tea filter paper; outer bag polyester / polyethylene, polyester / aluminum / polyethylene, polyester / aluminum foil / polyethylene, paper / polyethylene, nylon and other heat sealable composite materials .
• Packaging materials requirements: thickness ≤ 0.08m, coil inner diameter 75mm, outer diameter ≤ 300mm.
Application
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

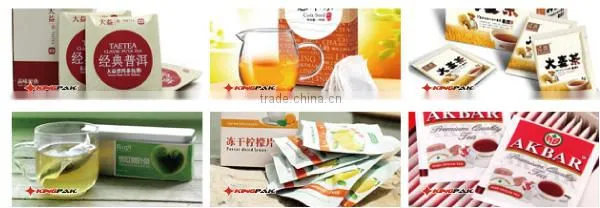

• The automatic tea bag packing machine for tea, health care products, pharmaceuticals, seeds and other industries, such as teabag, ptisan, health tea, seeds, tablets, pills and other materials, automatic packaging.
Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Name |
Automatic Tea Bag Packaging Machine for Inside and outside the bag |
Model |
DXDCH-10C |
Packing Speed |
20-45bags/min |
Max.Filling Range |
12ml |
Bag size of inner bag |
L50-100mm W30-80mm |
Bag size of outter bag |
L60-150mm W70-105mm |
Power |
2.05kw 220V AC |
Dimensions |
1200*850*1900mm |
Weight |
550kg |
Features
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
