Help CenterHP100P Automatic Pouch Powder Packing Machine
Related Products
-
HP200P Automatic Condiment Spices Powder Packing Machine PriceNegotiableMOQ: 1 Set -
HP100P Automatic Chilli Powder And Sachet Packing MachineUS$ 2,800 - 3,900MOQ: 1 Set
-
HP500P Automatic Custard Masala Powder Packing MachineUS$ 5,800 - 6,800MOQ: 1 Set
-
HP1000P Automatic Washing Detergent Powder Filling Packing MachineNegotiableMOQ: 1 Set
-
DXDF-40 Automatic Spices Powder Packing MachineNegotiableMOQ: 1 Set
1. &Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Name |
Automatic Pouch Powder Packing Machine |
Model |
HP100P |
Packing Speed |
15-60bags/min |
Filling Range |
5-100mll (Depending on the material) |
Filling Accuracy |
±2% |
Bag Size |
L40-120mm W30-100mm |
Roll Film |
Outer:≤300mm Inner:75mm Thickness:0.04-0.08mm |
Power |
1.3kw 220V AC |
Dimensions |
700*690*1550mm |
Weight |
260kg |
Control System |
PLC or MCU |
Metering Methods |
Screw Metering, Measuring Cup, Weighing Metering |
Sealing Forms |
Middle, 3-sides, 4-sides |
Bag Way |
Plane, Pillow, Punching, Stand-up,Gusset Bag, etc |
Machine Housings |
Stainless Steel / Paint Spraying |
Working Ambient Temp. |
0-40°c |
Working Ambient Humidity |
20-90%RH |
|
Sealing Temperature Reference (Generally horizontal sealing temperature is higher than the vertical temperature of about 10%) | |
PAPER/PE, PET/AL/PE, PA/PE |
180°c |
PET/PE |
150°c |
BOPP/PE, BOPET/PE |
160°c |
PT/PE |
170°c |
Note: Due to the escalating changes automatic pouch powder packing machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. &Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Functions
>The automatic pouch powder packing machine has bag making, metering, filling, sealing, cutting in one of the function, auto-complete all the packaging process, saving labor costs.
- Overview
>Control Systems: Machine by Imported PLC, servo motors, display constitute the core of the drive control to improve the control precision, reliability and intelligence of the powder packing machine.
>Fault Alarm: The machine has a fault display system that can quickly identify the fault cause and location, timely troubleshooting.

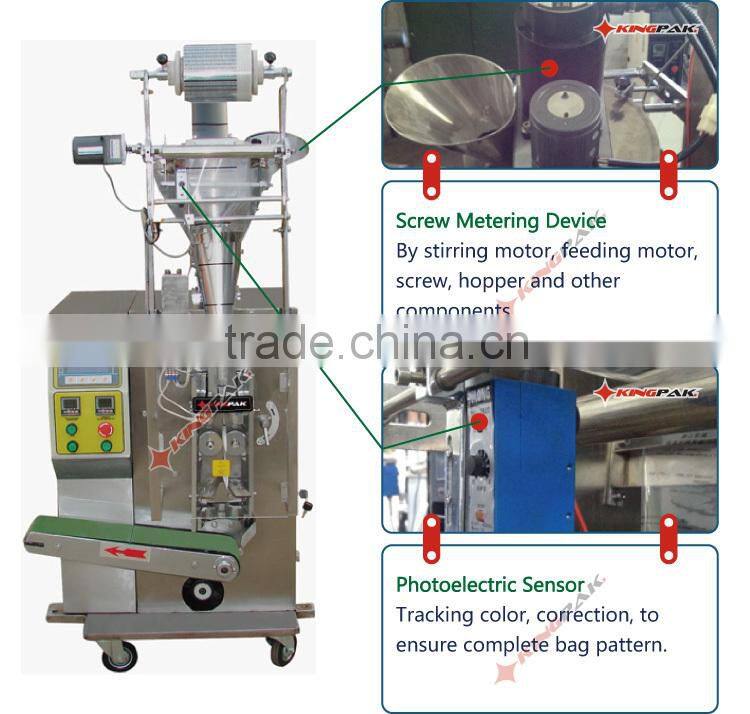

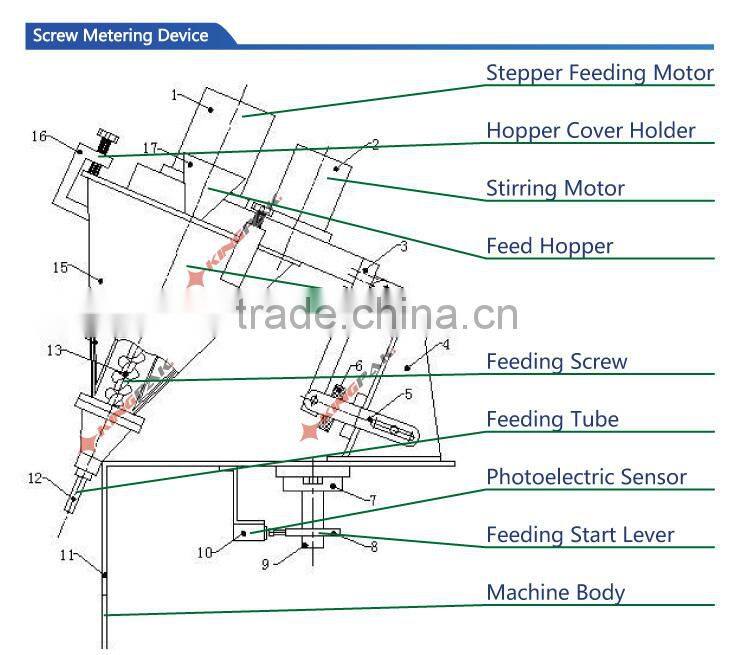

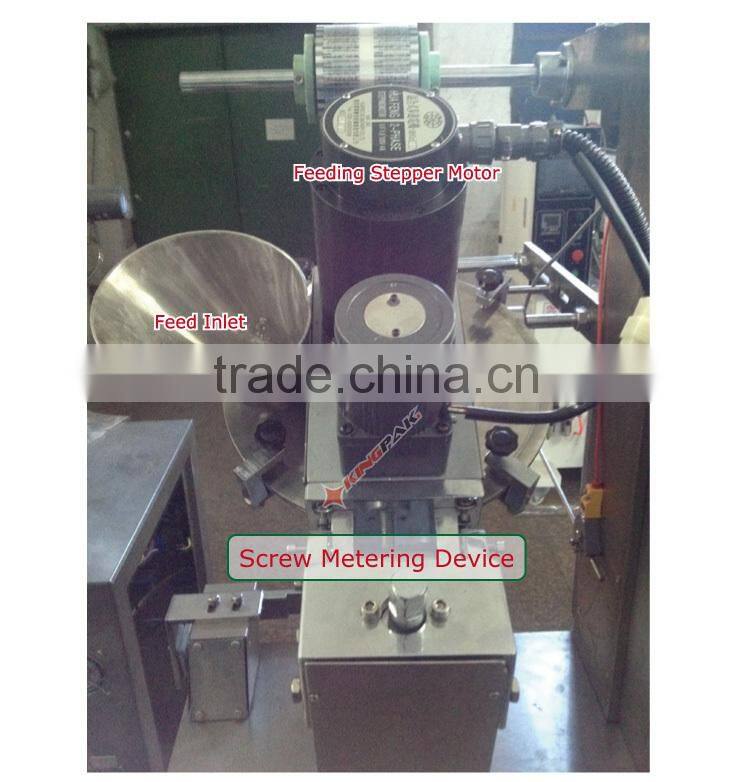

>Metering Filling: This machine adopts screw metering device, servo motor control screw rotation feeding, stable performance and easy to adjust.
>Bag Making: Streamlined former, photo-sensor and servo film feeding system, accurate positioning, sealing and cutting positions can auto-correction, to ensure accurate and pattern bag complete.
- Expansion
>Expansion device: coding device, counting device, fill gas device, exhaust device, punching device, n-bag without cutting device, gusset bag device, feeding device, Etc.
- Scope
>The automatic pouch powder packing machine for milk powder, coffee powder, rice flour, protein powder, flour, instant food, nutritional food, masala powder, chilli powder, spices, paprika, spices, detergent powder, washing powder, pesticide powder, dye , enzymes, additives, feed and other powdered materials fast packaging.

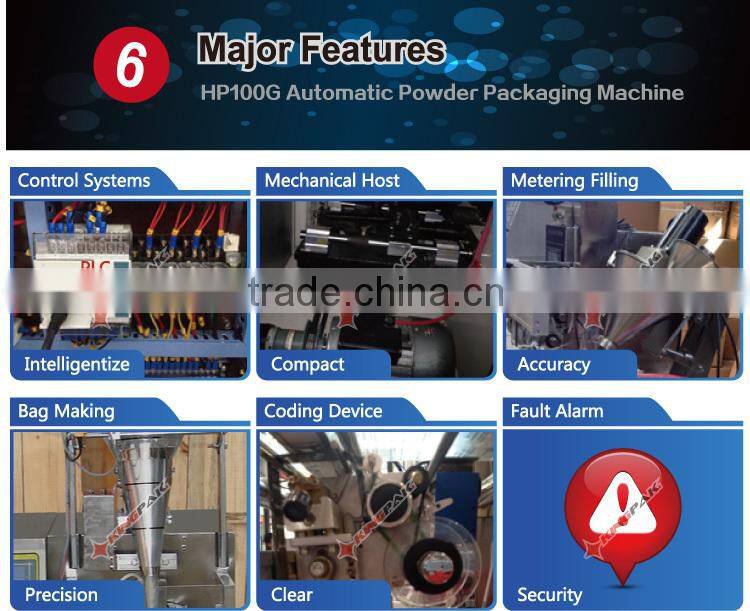

3. &Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

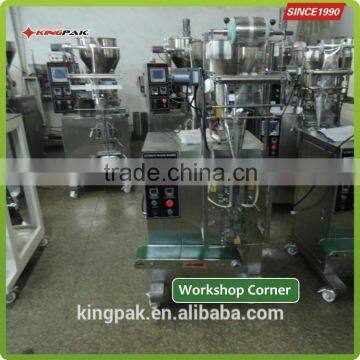

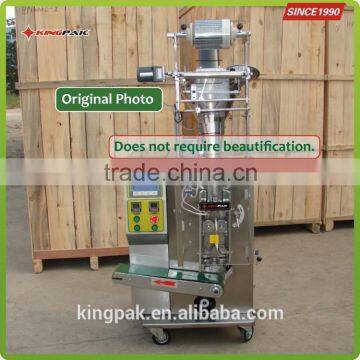

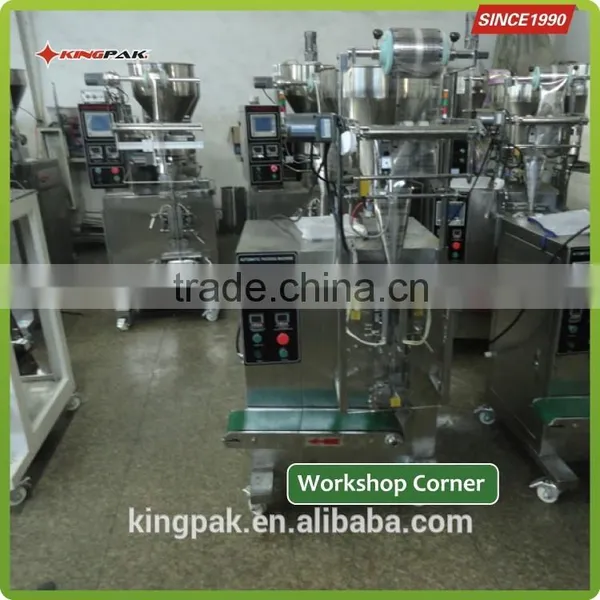

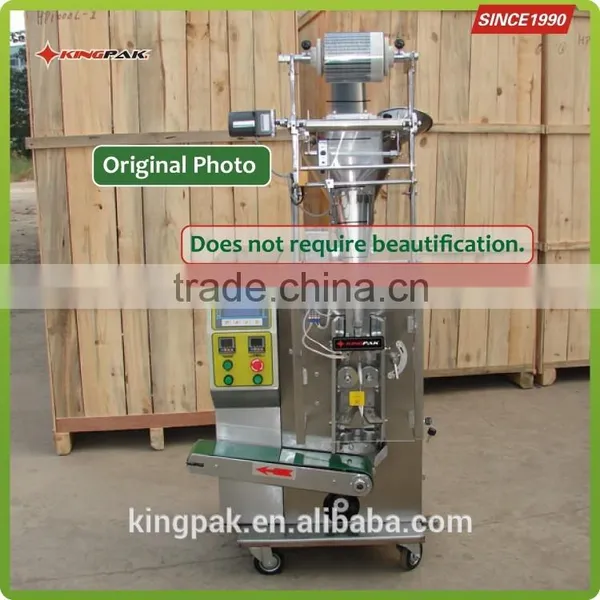

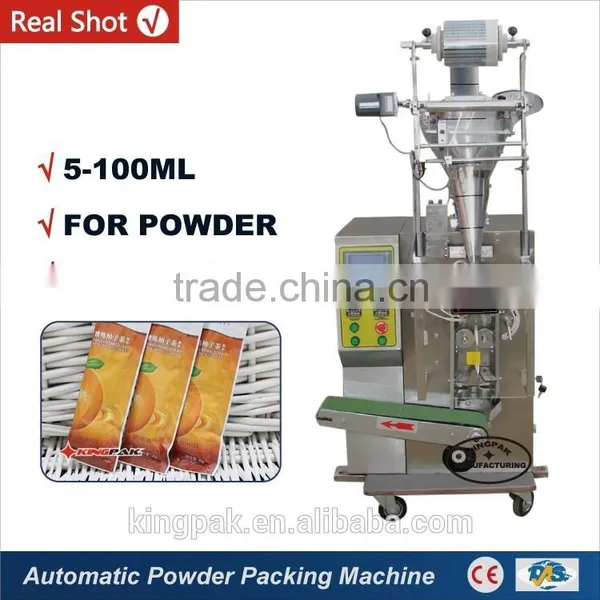

4. &Whole Show - Round Display Overall Product
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

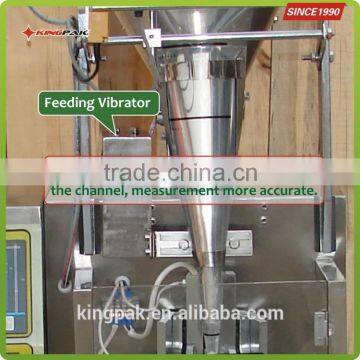

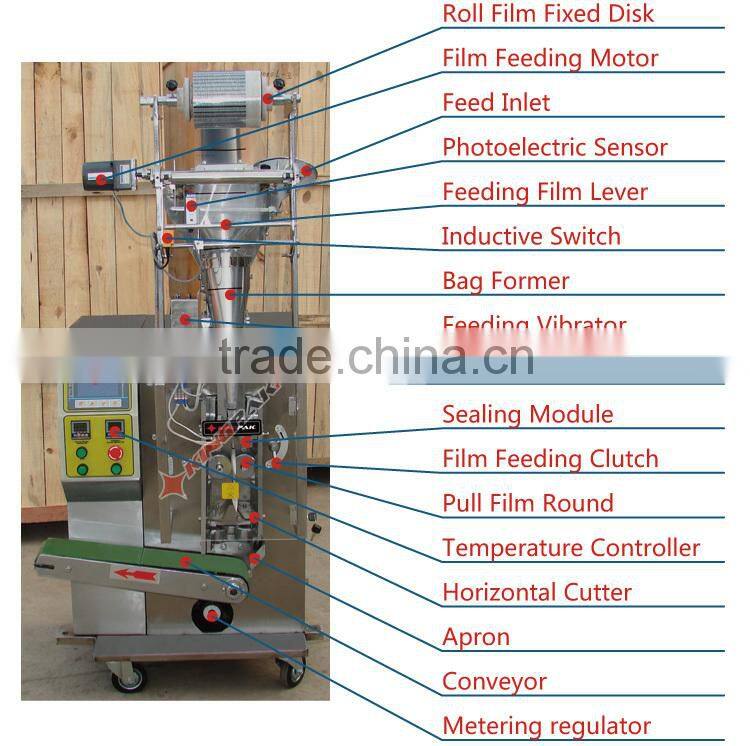

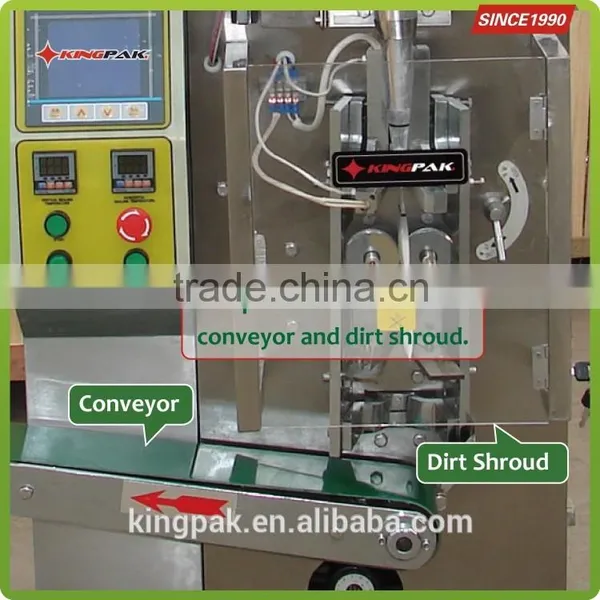

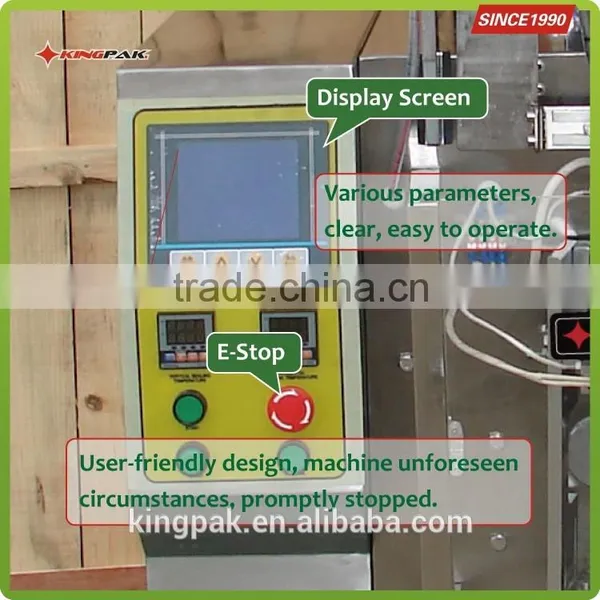

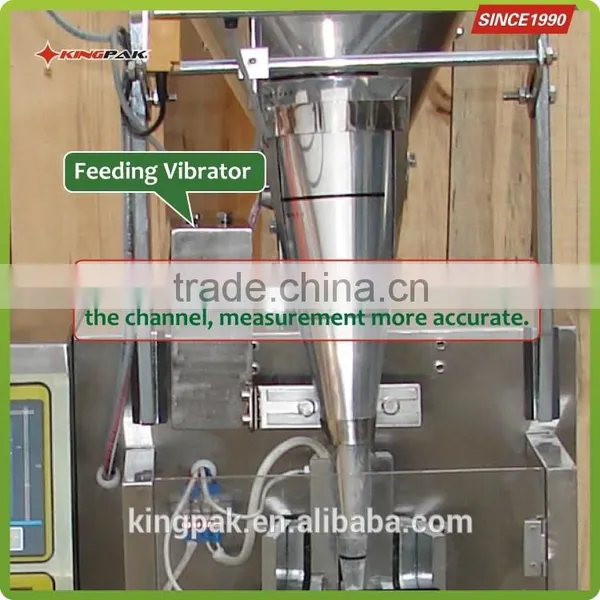

5. &Details Show - Humanized Design Refinement Process
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
6. &Packing Effect
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

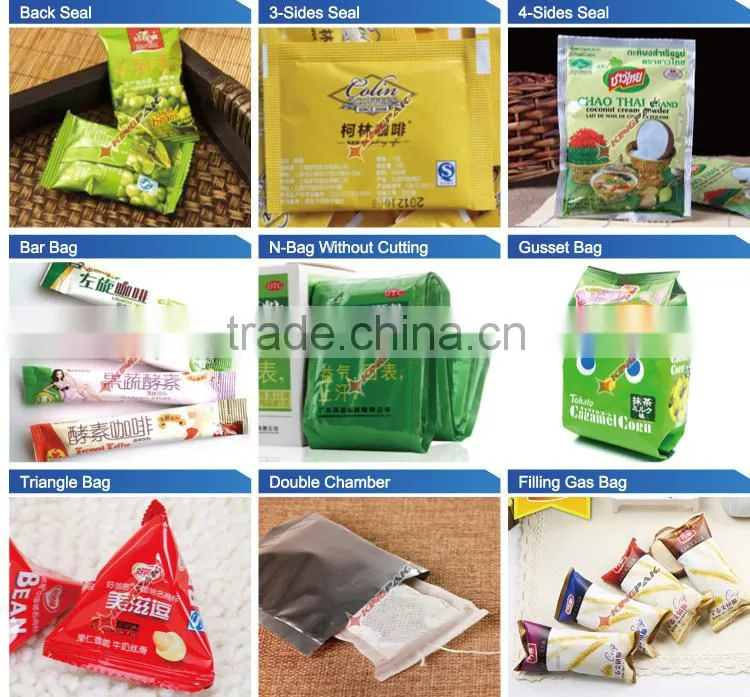

7. &Bag Way
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
8. &Before Buying
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Propose before buying the automatic pouch powder packing machine:
1) What’s packaging material?
(In order to select the appropriate metering device)
2) What’s the per bag packaging capacity?
(In order to select the appropriate metering device)
3) What’s the capacity for the machine (per minute)?
(In order to select the appropriate transmission device)
4) Packaging film width or packing bag size?
(In order to select the appropriate former)
5) Sealing form?
(In order to choose the suitable sealing device)
6) Whether you need additional device or if there are special requirements?
(In order to calculate the right price)
7) If there are special requirements for the power?
(The default configuration: 200V 50Hz / 380V 50Hz)
