HP1000L-B Automatic Milk And Fruit Juice Packaging Machine

HP1000L-B Automatic Milk And Fruit Juice Packaging Machine thumbnail-1
HP1000L-B Automatic Milk And Fruit Juice Packaging Machine thumbnail-2
HP1000L-B Automatic Milk And Fruit Juice Packaging Machine thumbnail-3
HP1000L-B Automatic Milk And Fruit Juice Packaging Machine thumbnail-4
HP1000L-B Automatic Milk And Fruit Juice Packaging Machine thumbnail-5
HP1000L-B Automatic Milk And Fruit Juice Packaging Machine thumbnail-6
HP1000L-B Automatic Milk And Fruit Juice Packaging Machine photo-1
HP1000L-B Automatic Milk And Fruit Juice Packaging Machine photo-2
HP1000L-B Automatic Milk And Fruit Juice Packaging Machine photo-3
HP1000L-B Automatic Milk And Fruit Juice Packaging Machine photo-4
HP1000L-B Automatic Milk And Fruit Juice Packaging Machine photo-5
HP1000L-B Automatic Milk And Fruit Juice Packaging Machine photo-6
US$ 1,900 - 2,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Function:
Filling, Sealing, Wrapping
Application:
Apparel, Beverage, Chemical, Food, Medical, Textiles
Contact Supplier Request Quote Chat Now
Wenzhou Kingpak Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Function Filling, Sealing, Wrapping
Application Apparel, Beverage, Chemical, Food, Medical, Textiles
Packaging Type Bags, Film, Pouch
Packaging Material Paper, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V 50Hz
Power 1400w
Place of Origin Zhejiang, China
Brand Name kingpak
Model Number Liquid Packaging Machine
Dimension(L*W*H) 1150*850*1950mm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Product Overview



1. Specifications

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯



Name

Automatic Milk And Fruit Juice Packaging Machine

Model

HP1000L-B

Packing Speed

1500-2100bags/h

Packing Capacity

200-500ml

Film width

240/320mm

Seal Model

3-Side Sealing

Film Material

Laminating Film / Single Layer PE Film

Power

1.4kw 220V/380V

Dimensions

1150*850*1950mm

Weight

320kg

Ribbon Coding

Optional

Film UV sterilizing

Optional

Sealing Device

Optional:Mechanical Control / Pneumatic

Special Device

Can be customized



 Note: Due to the escalating changes milk and fruit juice packaging machine, the above technical parameters for reference only, to prevail in kind, please understand!

2. Basic Introduction

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

- Overview

 >HP1000L-B automatic milk and fruit juice packaging machine is manufactured in our company's newly developed vertical, trilateral sealing, intermittent high-precision liquid packaging machine.

 >The machine has automatic photoelectric eye tracking color systems, positioning accuracy and reliability to ensure that bags after forming a complete pattern.

 >The machine all packing procedures: ultraviolet sterilization packaging film, bag molding, ribbon coding, quantitative filling, sealing and cutting etc one time.



- Scope

 >The automatic milk and fruit juice packaging machine is widely used in a variety of packaging materials without gas liquids, especially for milk, the first fermented yogurt, pasteurized milk, flavored milk, fruit juice, liquid seasoning, mineral water, vegetable oil, liquid chemical products , detergents, glues, fertilizer and other products packaging process.



3. Feature

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

 ♦ Control panel layout is reasonable, simple and convenient package parameter settings, a variety of work program displays a glance.

 ♦ Sealing temperature using intelligent control, independent of voltage, temperature stable fluctuation is small, packaged products sealing firm, beautiful appearance.

 ♦ With photoelectric tracking system for packaging film accurate positioning, ensure the bag pattern is complete.

 ♦ The unique design of tensioned membrane system, smooth operation, bag molding accurate size.

 ♦ All stainless steel construction of the piston self-priming pump, accurate, clean, easy to disassemble to clean.



Details Structure

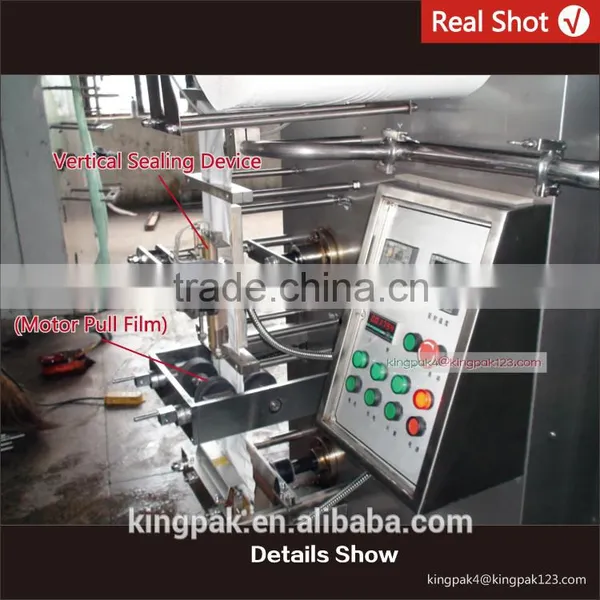

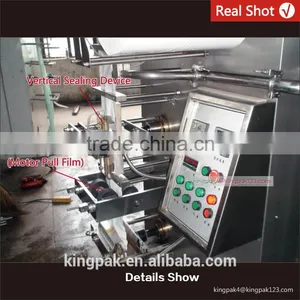

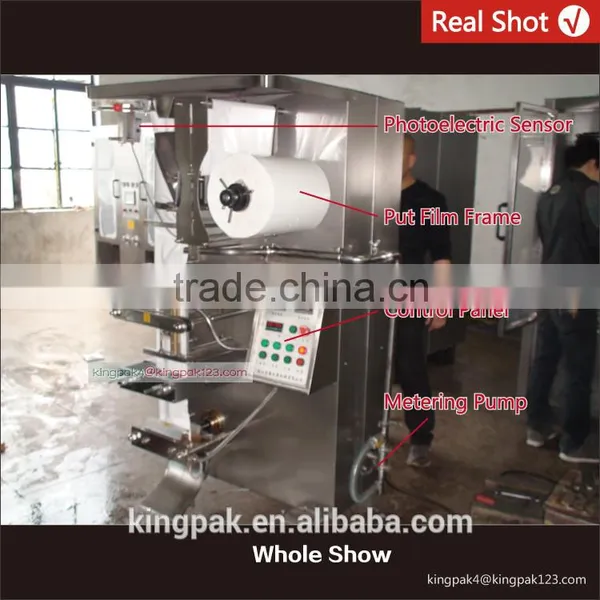

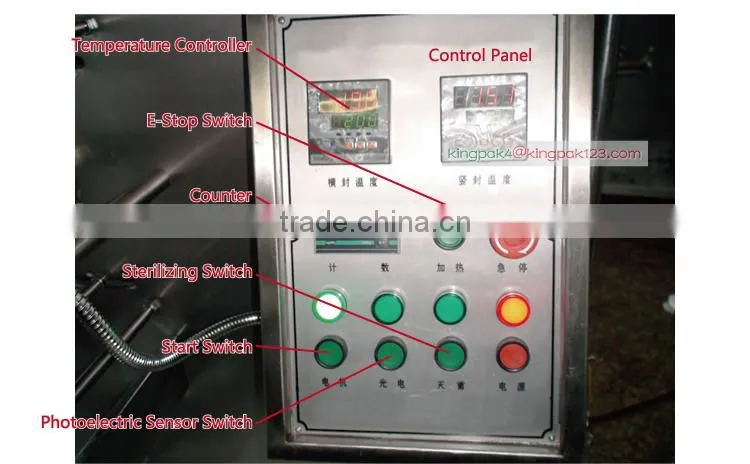

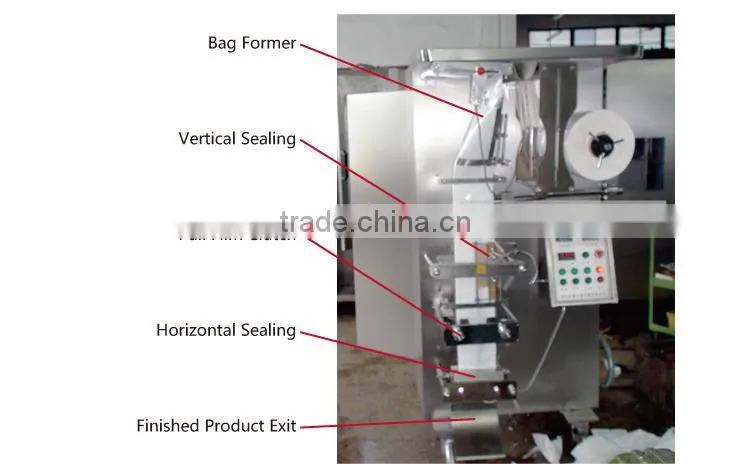

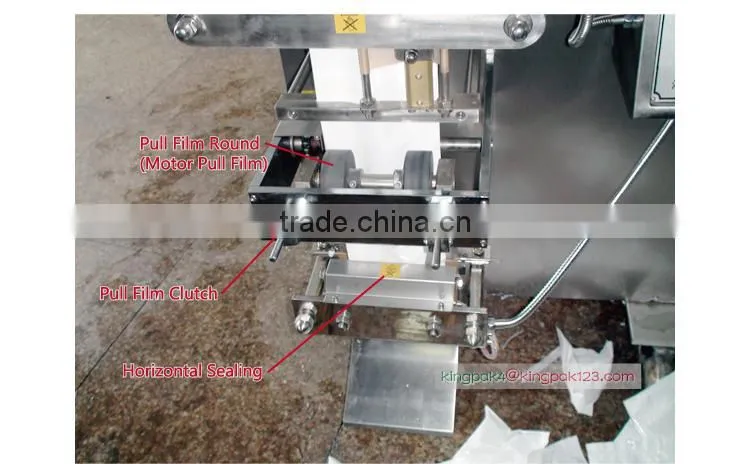

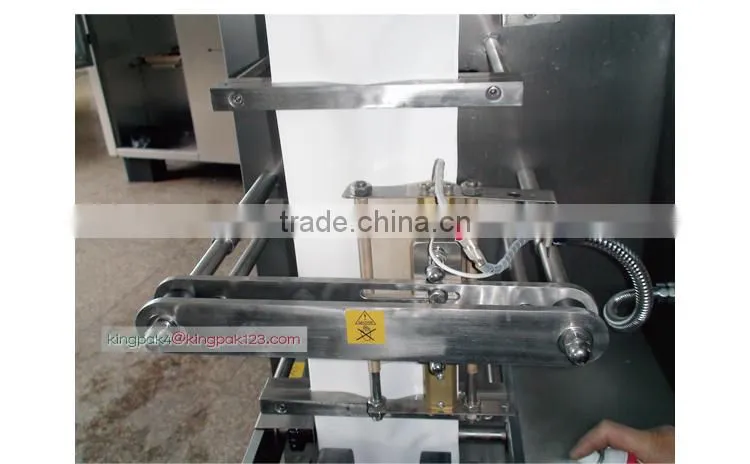

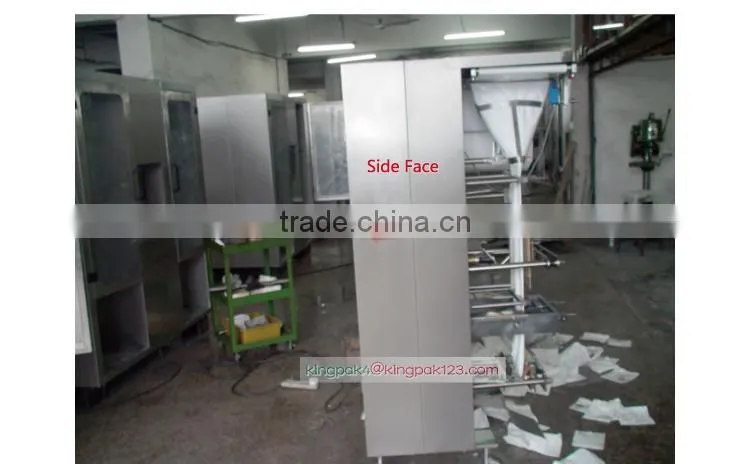

4. Whole&Details Show

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

HP1000L-B Automatic Milk And Fruit Juice Packaging MachineHP1000L-B Automatic Milk And Fruit Juice Packaging MachineHP1000L-B Automatic Milk And Fruit Juice Packaging MachineHP1000L-B Automatic Milk And Fruit Juice Packaging MachineHP1000L-B Automatic Milk And Fruit Juice Packaging MachineHP1000L-B Automatic Milk And Fruit Juice Packaging MachineHP1000L-B Automatic Milk And Fruit Juice Packaging MachineHP1000L-B Automatic Milk And Fruit Juice Packaging MachineHP1000L-B Automatic Milk And Fruit Juice Packaging Machine

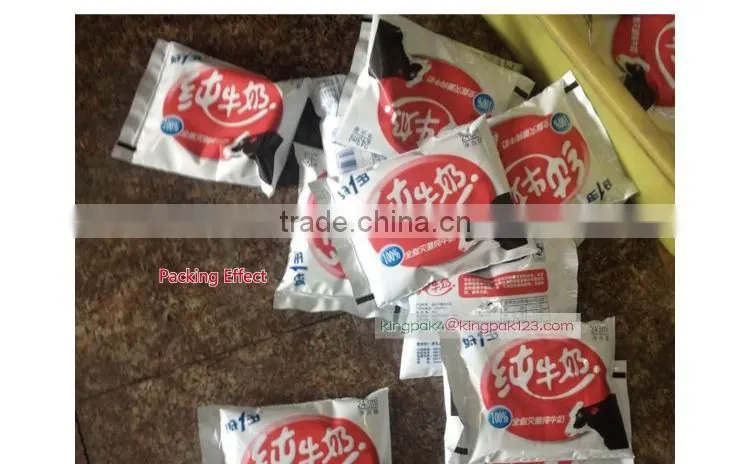

5. Packing Effect



¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

HP1000L-B Automatic Milk And Fruit Juice Packaging Machine





6. Before Buying



¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯



• Single layer or laminating film.



• blank film or Color film.



• Bag length and width.



• The capacity of each film bag.



• The output per hour.



Just tell us the above points, we can determine models. Both for the convenience of customers, we provide a variety of low-cost automatic liquid packaging machine for packaging films.

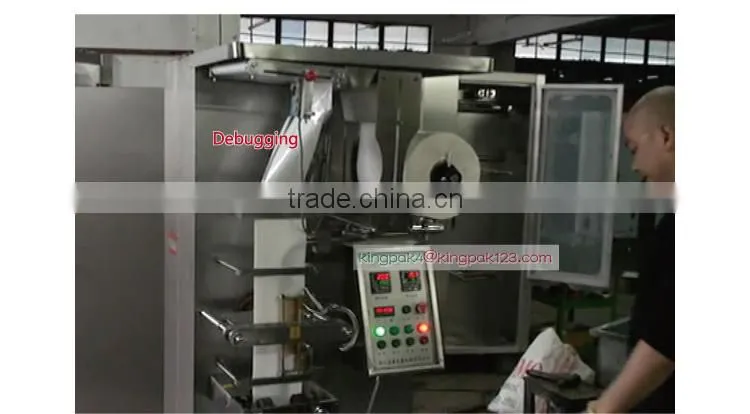

Enterprise Show

HP1000L-B Automatic Milk And Fruit Juice Packaging MachineHP1000L-B Automatic Milk And Fruit Juice Packaging MachineHP1000L-B Automatic Milk And Fruit Juice Packaging Machine

Packaging & Shipping

All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.



All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.



Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.

Shipping methods:

1. Shipping by sea(recommend big product or a lot of goods of the order)

2. By air

3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
