Help CenterHP1000L-I Automatic Liquid Packing Machine Price
Related Products
-
HP1000L-B 3-Side Sealing Price Milk Pouch Packing MachineUS$ 1,900 - 2,500MOQ: 1 Set -
HP2-1000 High-Speed Mineral Water Pouch Packing Machine PriceUS$ 4,500 - 5,800MOQ: 1 Set
-
HP7500 PLC Control Sachet Water Packaging Machine PriceUS$ 5,700 - 6,500MOQ: 1 Set
-
HP1000L-I Automatic Juice And Pure Water Sachet Packing MachineUS$ 1,000 - 1,700MOQ: 1 Set
-
HP1000L-I With Photoelectric Sensor Automatic Cooking Oil Pouch Packing MachineUS$ 1,750 - 2,100MOQ: 1 Set
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Name |
Automatic Liquid Packing Machine |
|
Model |
HP1000L-I |
HP1000L-II |
Packing Speed |
1500-2100bags/h |
1000bags/h |
Packing Capacity |
200-500ml |
200-1000ml |
Film Width |
240/320mm |
240/320mm |
Power |
1.2kw 220V/380V |
1.2kw 220V/380V |
Dimensions |
850*750*1600mm |
950*850*1900mm |
Weight |
350kg |
420kg |
Ribbon Coding |
Optional |
|
Film UV sterilizing |
Optional |
|

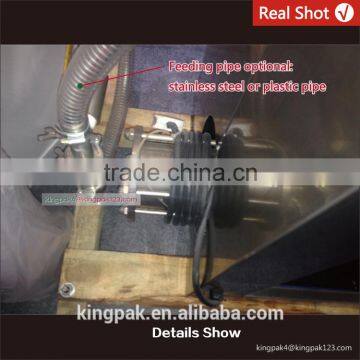

Feeding Pipe |
Optional: Stainless Steel Pipe / Plastic Pipe |
|
Photoelectric Sensor |
Optional, for color printing packaging film |
|
Special Device |
Can be customized |
|
Note: Due to the escalating changes automatic liquid packaging machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Overview
>The machine is designed for bagged liquid products design, filling and bag forming at once, it is the ideal choice for mass production.
>This automatic liquid packaging machine has a packaging film ultraviolet sterilization, bag forming, quantitative filling, ribbon coding, product counting, sealing and cut at one of the functions, high degree of automation, saving personnel costs. Packing parameter setting is simple and convenient, does not require any training, packing the finished effect is beautiful.
>The machine working procedures: packaging film UV disinfection - traction tension membrane - Ribbon coding - count - vertical sealing - quantitative filling - horizontal sealing and cutting, once work is completed, and then repeat this step to achieve the purpose of continuous work.
- Scope
>Automatic liquid packing machine is widely used in milk, soy milk, fruit juice, beverages, soy sauce, vinegar, liquid seasoning, detergents, glues and other liquid (with low mobility viscosity) of the film packaging.
3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

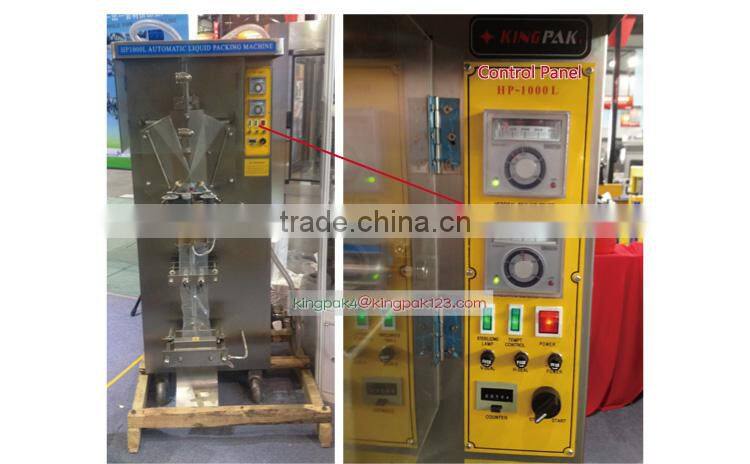

♦ Control panel layout is reasonable, simple and convenient package parameter settings, a variety of work program displays a glance.
♦ Sealing temperature using intelligent control, independent of voltage, temperature stable fluctuation is small, packaged products sealing firm, beautiful appearance.
♦ Counting device plays quantitative production, genuine rates calculated for each shift, according to hour production arrangements staffing and so on.
♦ The unique design of tensioned membrane system, smooth operation, bag molding accurate size.
♦ Uses the high quality liquid metering pump, accurate measurement, stable running, head big 6 m, external pipe is convenient.

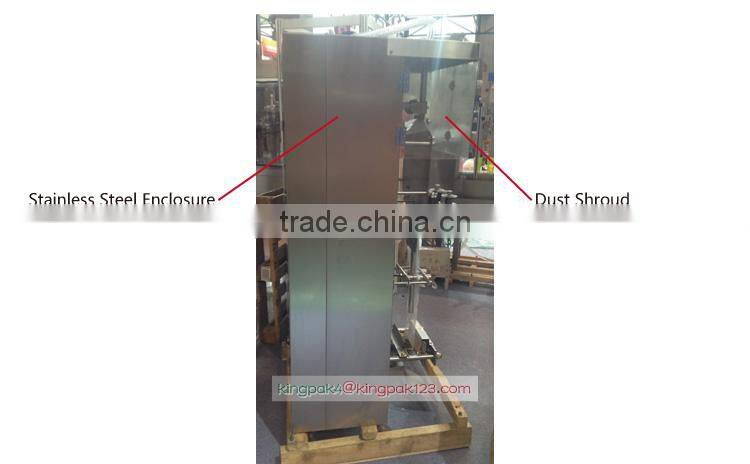

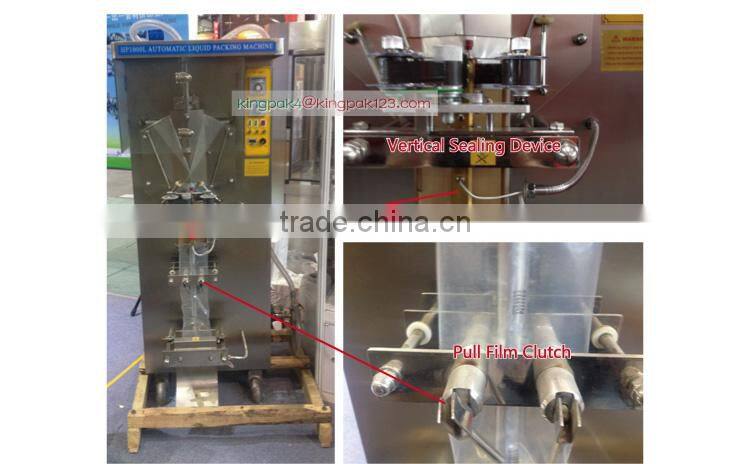

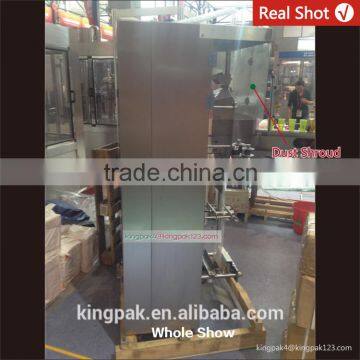

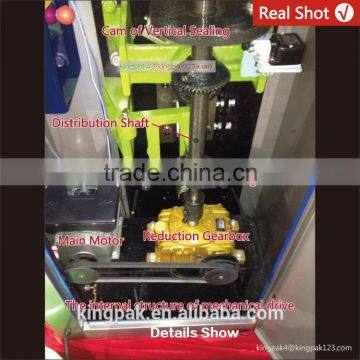

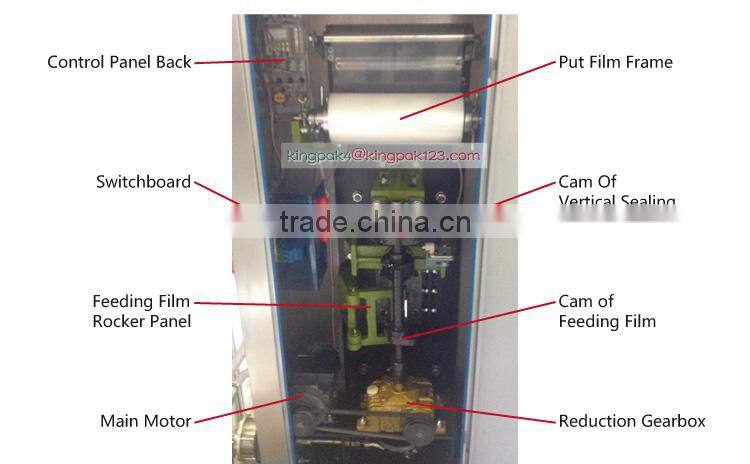

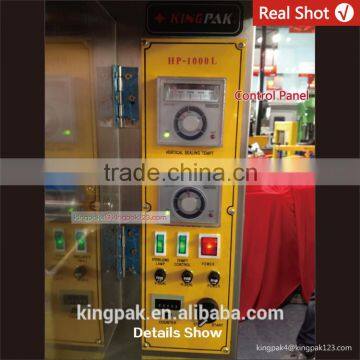

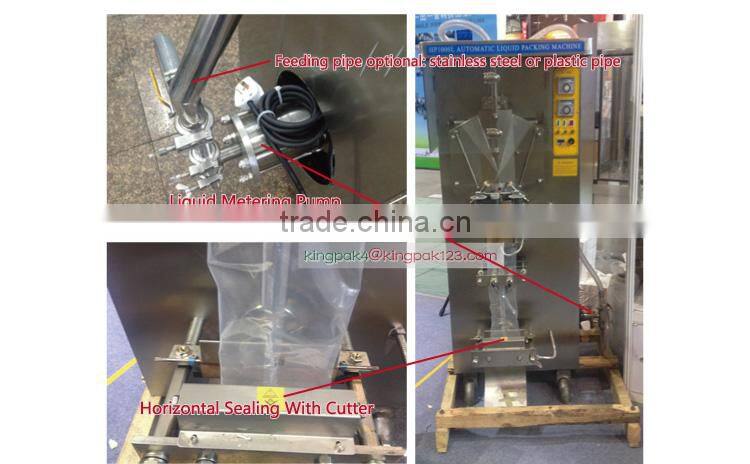

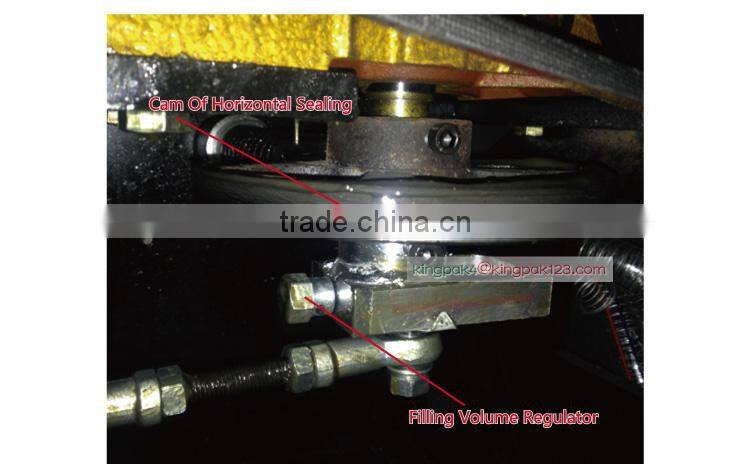

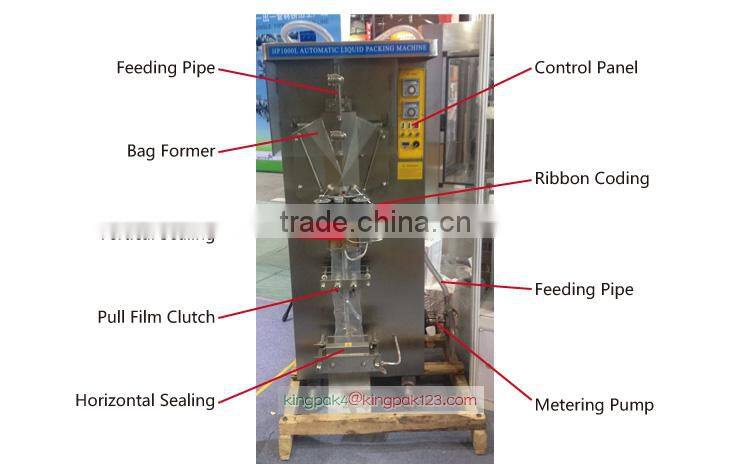

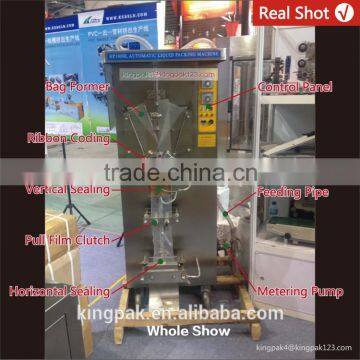

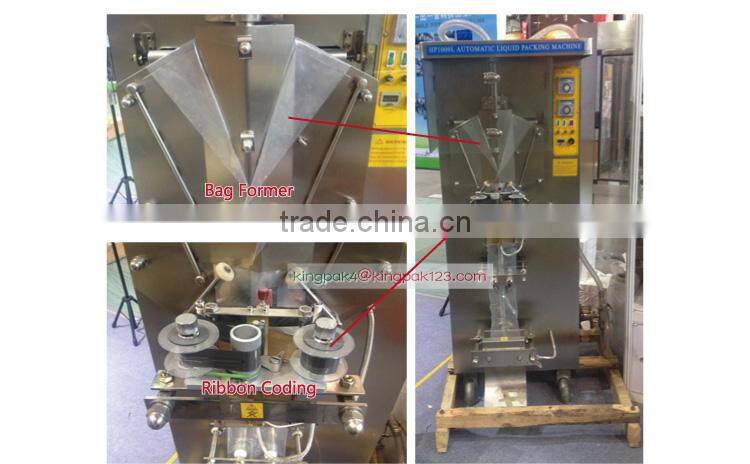

4. Whole&Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

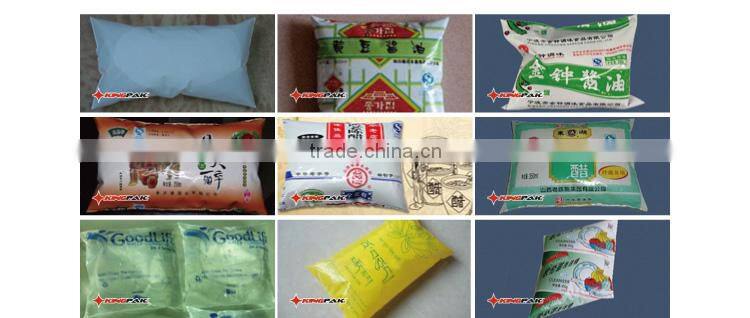

5. Packing Effect
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
6. Before Buying
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
• Single layer or laminating film.
• blank film or Color film.
• Bag length and width.
• The capacity of each film bag.
• The output per hour.
Just tell us the above points, we can determine models. Both for the convenience of customers, we provide a variety of low-cost automatic liquid packaging machine for packaging films.
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
