Help CenterHTB-200A Automatic Self-Adhesive Labeling Machine Price
Related Products
-
HP1000L-I Automatic Liquid Packing Machine PriceUS$ 1,000 - 1,700MOQ: 1 Set -
HP1000L-B 3-Side Sealing Price Milk Pouch Packing MachineUS$ 1,900 - 2,500MOQ: 1 Set
-
HP2-1000 High-Speed Mineral Water Pouch Packing Machine PriceUS$ 4,500 - 5,800MOQ: 1 Set
-
HP7500 PLC Control Sachet Water Packaging Machine PriceUS$ 5,700 - 6,500MOQ: 1 Set
-
HP1000L-I Automatic Juice And Pure Water Sachet Packing MachineUS$ 1,000 - 1,700MOQ: 1 Set
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Machine Name |
Automatic Self-Adhesive Labeling Machine |
||
Model |
HTB-200A |
KTB-100AL |
HTP-100 |
Label Speed |
150bottles/min |
60-140bottles/min |
80-280 bottles/min |
|
Square(Flat)Bottle Specification |
Thickness 30-100mm Height ≤300mm |
|
|
Bottle diameter |
|
20-120mm |
10-30mm |
Bottle high |
|
30-160mm |
30-80mm |
Label Width |
16-160mm |
25-90mm |
10-60mm |
Label Length |
15-200mm |
15-80mm |
15-80mm |
|
Outside Diameter For Label Roller |
350mm |
300mm |
100-300mm |
|
Inner Diameter For Label Roller |
76mm |
76mm |
45-76mm |
Power |
AC220v 50Hz 2.20kw |
AC220v 50Hz 0.25kw |
AC220v 50Hz 0.4kw |
Weight |
400kg |
200kg |
150kg |
Dimension |
2500*1850*1450mm |
2200*900*1400mm |
1900*580*1750mm |
Rated Exhaust Pressure |
≥0.5Mpa |
|
|
Note: Due to the escalating changes labelling machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Overview
>HTB-200A series labeling machine which can achieve double-sided labeling and the circumferential surface labeling features to meet the flat bottle, square bottles and shaped bottles of single-sided and double side labeling, the entire circumference of the cylindrical body, a half weeks stickers standard, widely used in cosmetics industry, daily chemical industry.
>KTB-100AL series is a vertical round bottle labeling machine, dedicated to the round bottle labeling, can be attached to a single standard and double standard, double standard spacing is back can be flexibly adjusted; with the conical bottle labeling functions; optional circumferential location detectionIt means to achieve the specified position in the circumferential surface labeling.
>HTP-100 series horizontal round bottle labeling machine for cylindrical objects standing firm circumference, semicircle labeling, the use of horizontal transmission, horizontal labeling way increase stability, improve labeling efficiency.
>Optional coder or inkjet printer to labeling head, enabling print production date, batch and print bar codes and other information on the label.
- Applicable Label
>Self-adhesive labels, stickers film, electronic monitoring code, bar code and so on.
- By Industry
>Widely used in food, medicine, cosmetics, cosmetic, electronic, metal, plastics and other industries.
- Operating Procedures
>Put the product (which can be accessed pipeline) -> product delivery (equipment automatically) -> products at distance -> Product Inspection -> Labeling -> Cover superscript -> collecting the product labeling.
3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
♦ Labeling excellent quality, using repression of cover standard belts, labeling smooth, no wrinkles, improve the quality of packaging.
♦ Flexible, with automatic bottle function, single production, can also be connected to production lines.
♦ Intelligent control, automatic photoelectric tracking, have no object no labeling, no standard automatic calibration and automatic detection tags, stickers and labels to prevent leakage of waste.

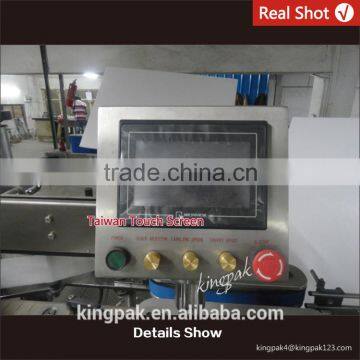

♦ High stability, the use of imported PLC control, touch screen display, parameter modification intuitive, simple switching of various functions.

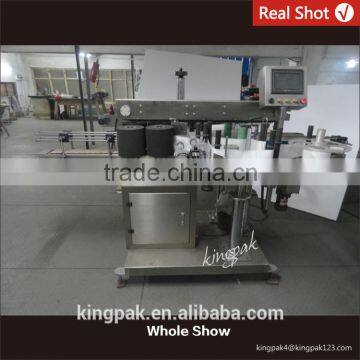

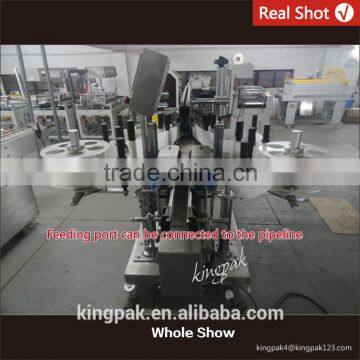

4. Whole Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

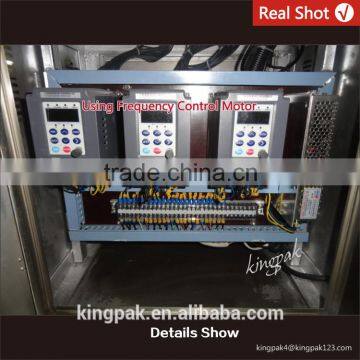

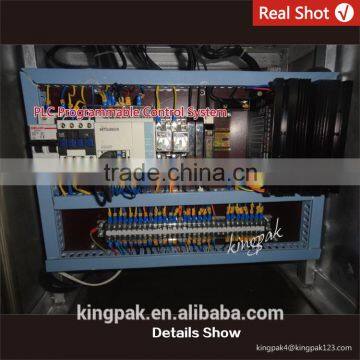

5. Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
