2015 Atlas copco 22KW 10bar Screw Air Compressor

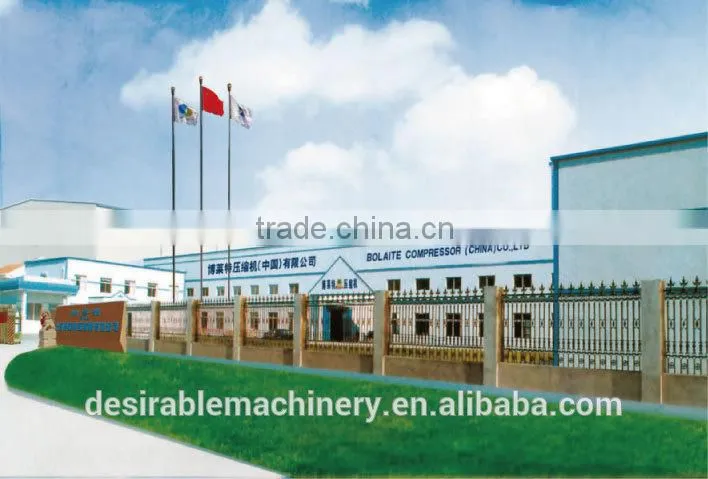

Bolaite(shang hai) Compressor Co.,Ltd.was established in 1998.
It is mainly engaged in designing,producing,and selling double screw air compressors.
Bolaite(shang hai) Compressor Co.,Ltd.is wolly-owned by Atlas copco,
belong to Atlas copco Group Compressor Technology(CT).
Division new factory with total investment of $250,000,000.00
Lloyd’s certificates:ISO4001,OHSAS18001,ISO9001.
It is located in Jia Ding district, shang hai ,covering an area of 9,000 square meters.
Products has been sold all over the word,especially the global market,
such as South America,Southeast Asia,Africa,Middle east etc.
Brife instruction:
2.Sweden SKF bearing
3.CE ISO GC certificates
Air end
Core components air end supplied by the group company, using the world's most advanced rotor technology.
Patented line, the best line speed, always in the most efficient running, energy efficiency significantly ahead of the market similar products.
High stiffness design of the rotor, to prevent leakage, ensure long life and reliable operation.
Transmission System
Transmission System well designed and after a long endurance test, good stability, reliable operation and long service life.
Core components imported brands, high transmission accuracy and efficiency.
High quality Motor
High quality and efficient design, F class insulation.
IP54 dust-proof closed motor , it can be safely running in a relatively poor working conditions.
High efficient Cooler
Large oil cooling design: even at high temperature, dust environment, also to ensure that the lubricating oil .
temperature in the normal range, to ensure the safety of the compressor in summer.
Air Filter
In general, we should clear the dust o the surface of air filter every 1000hours,and the method is to blow down the dust from inside to outside.
Air Inlet Valve
When starting,stopping or emptyit all uses the two-way solendid valve action to control the air inlet valve piston and up close valve.If the pressure resches the upper limit valve of pressure switch.the pressure switch will act,and the two-way solenoid valve begins to discharge and pushes up the air lnlet piston to close the valve and become empty load state.
Oil filter
Oil filter is a kind of filters of paper characteristic with the function to remove the impurities in oil,such as mental particles,oil deterioration and so on,its filtering precision is between 10μ-15μ,which will well pretect the bearing and rotors.
Cooling System
Cool air sucked by a circulating fan to blow over the heat dissipating fins of cooler and exchange heat with compressed air and lubricating oil to reach the cooling effects.
Technical Parameter of screw air compressor
Model |
|
BLT-30A |
Air delivery |
m3/min |
3.2 |
Working Pressure |
bar |
8 |
Compression stage |
|
Single stage compression |
Cooling model |
|
Air cooling |
Discharge temperature |
°C |
≤The environment temperature +15°C |
Noise Level |
dB(A) |
65±2 |
Transmission mode |
|
Belt transmission |
Voltage |
V/Ph/Hz |
380V/3Ph/50Hz or as your demand |
Motor power |
KW/HP |
37/50 |
Starting model |
|
Y-* starting |
External dimensions |
mm |
1100*865*1145mm(L*W*H) |
Weight |
kg |
465 |
Exhaust Pipe diameter |
inch |
G1 |
Remarkable components supply chain.
No. |
PARTS NAME |
Quantity |
Brand |
1 |
Screw element |
1pc |
Atlas Copco |
2 |
Bearing |
1pc |
Sweden SKF |
3 |
Air inlet valve |
1pc |
Atlas Copco |
4 |
Electric motor |
1pc |
ZODA |
5 |
Thermostat valve |
1pc |
Atlas Copco |
6 |
Pressure sensor |
1pc |
Denmark Danfoss |
7 |
Air filter |
1pc |
Atlas Copco |
8 |
Oil filter |
1pc |
Atlas Copco |
9 |
Oil and gas separator |
1pc |
Atlas Copco |
10 |
Minimum Pressure valve |
1pc |
Atlas Copco |
11 |
Compressed air vessel |
1pc |
Atlas Copco |
12 |
High pressure hose assembly |
1pc |
Italy MANULI |
Standard Europe screw air compressor production lines
Our screw air compressor workshop
Test finished air compressor
Finished air compressor in storage
Perfect after-sales service
Bolaite has a sound localization service and spare parts supply system all over the country, supported
by a strong dealer network, can provide the most attentive, efficient service and first-class original spare parts for customers.
Screw air compressor industries apply
Standard export wooden package.
