Specifications
air compressor supplier1.Air end-Atlas Copco
2.Motor-ZODA
3.Motor power:45kw/60hp.
4.High efficiency screw air compressor
Atlas Copco(Bolaite) 45kw screw air compressor supplier in Shanghai
High quality configuration of air compressor supplier
Parts | Brand |
Air End | Atlas Copco |
Intake Valve | Hoerbiger (Austria) |
Solenoid Valve | CEME (Italy) |
Temperature Sensor | Hoerbiger (Austria) |
Pressure Sensor | Huba Original (From Switzerland) |
Motor | Qingjiang Motor |
Coupling | Germany KTR |
Thermostat Valve | Italy VMC |
PLC | Schneider Electric (France), SIEMENS |
Minimal Pressure Valve | Hoerbiger (Austria) |
Air Filter Element | Germany MANN |
Oil Filter Element | Germany MANN |
Oil Separator Element | Germany MANN |
Bearing | Sweden SKF |
Technical parameter of air compressor supplier
Model |
| BLT-60A/W | ||||
Free Air Delivery | M3/min | 7.8 | 7.3 | 6.5 | 5.7 | |
Working Pressure | bar | 7 | 8 | 10 | 13 | |
Compression stage |
| Single stage compression | ||||
Cooling model |
| Air cooling | ||||
Discharge temperature | ℃ | ≤The environment temperature +15℃ | ||||
Noise Level | dB(A) | 65±2 | ||||
Transmission mode |
| Belt transmission | ||||
Voltage | V/Ph/Hz | 380V/3Ph/50Hz | ||||
Motor power | KW/HP | 45/60 | ||||
Starting model |
| Star-delta starting | ||||
External dimensions | L | mm | 1485 | |||
| W | mm | 970 | |||
| H | mm | 186300 | |||
Weight | Kg | 850 | ||||
Exhaust Pipe diameter | inch | G 1 1/2” | ||||

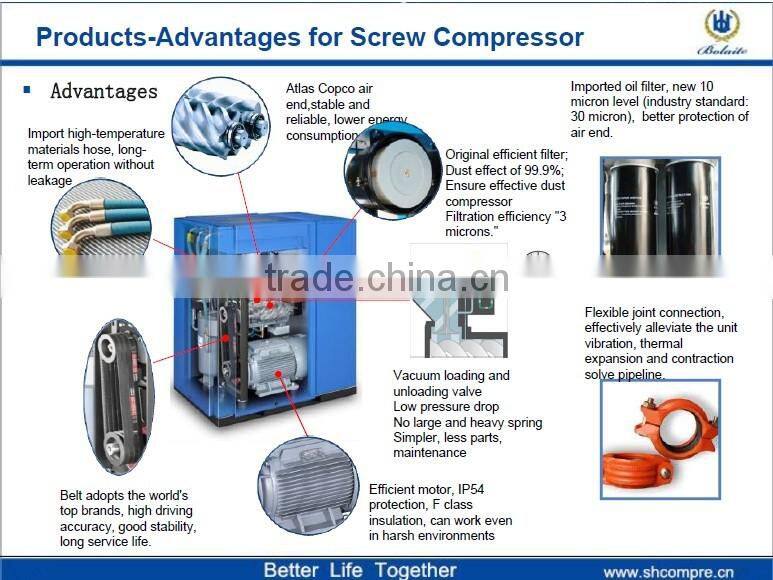

Products advantages of air compressor supplier
Item | Description of parts | Advantages of stationary air compressor |
1 | Air end | Atlas Copco air end,stable and reliable, lower energy consumption. |
2 | Air filter | Original efficient filter; Dust effect of 99.9%; Ensure effective dust compressor Filtration efficiency "3 microns." |
3 | Vacuum loading and unloading valve | Low pressure drop No large and heavy spring Simpler, less parts, maintenance |
4 | Motor | Efficient motor, IP54 protection, F class insulation, can work even in harsh environments |
5 | Belts | Belt adopts the world's top brands, high driving accuracy, good stability, long service life. |
6 | Oil filter | Imported oil filter, new 10 micron level (industry standard: 30 micron), better protection of air end. |
7 | Pipeline | import high-temperature materials hose, long-term operation without leakage. |
Our office in Shanghai

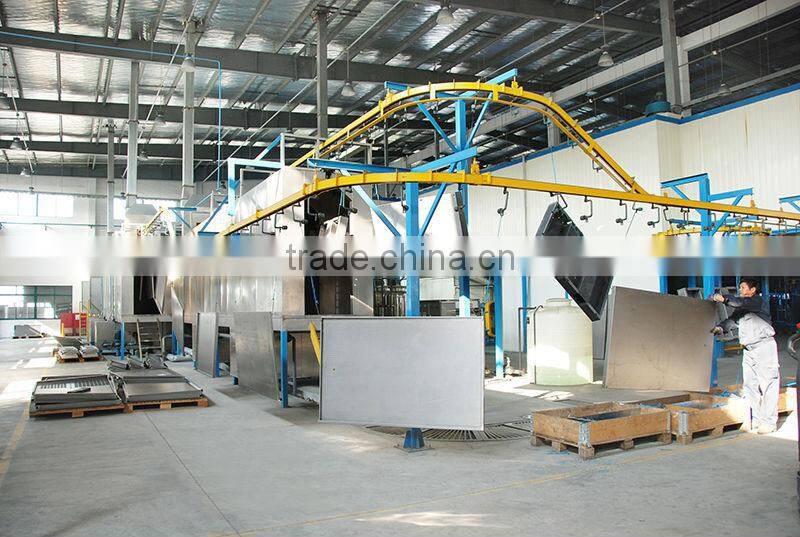

Cutting Workshop

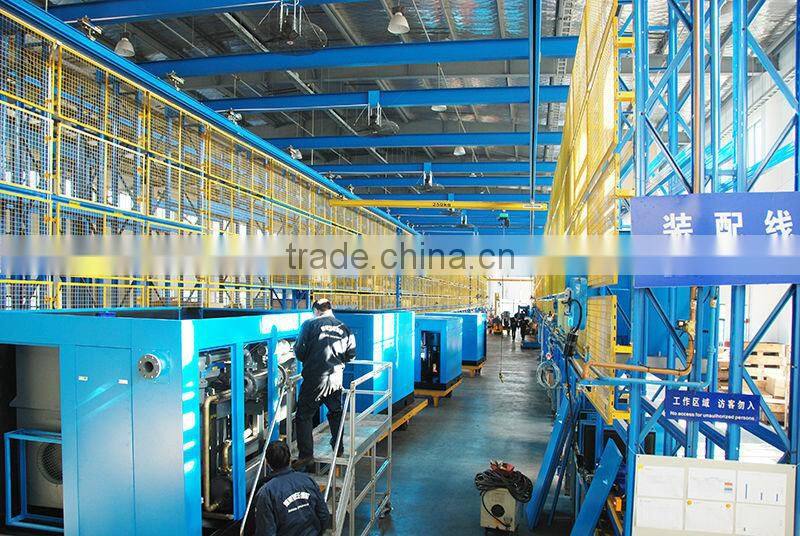

Large models workshop

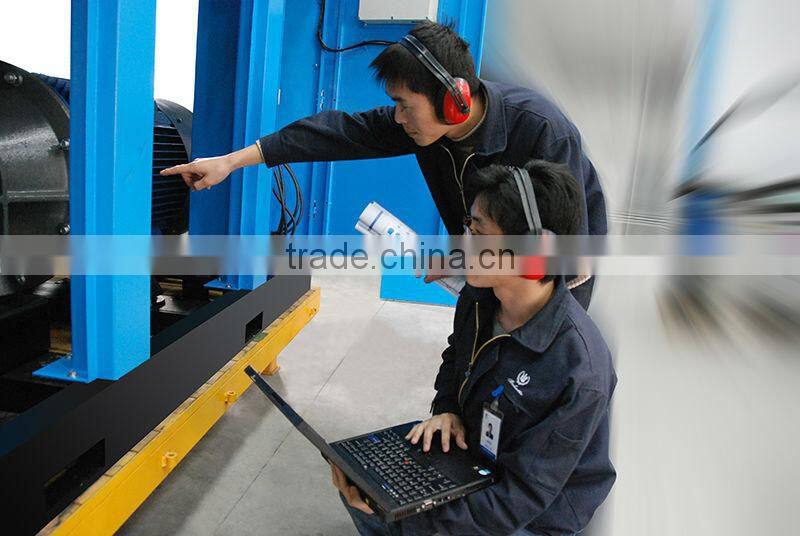

Testing Workshop
Applied industies
AC CEO Visit Bolaite factory in Shanghai
Packing for Air compressors
How to serve for you?
• Inquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, MSN, Skype) and let us know your inquiry.
• Discussion: Specify the items you desire, confirm specification;
• Quotation: Prices offered and accepted.
• Place order as per contract or discussion.
• Perform invoice( sales contract ) In duplicate confirmed and kept by both sides.
• Payment settled.
• Order completed under our arrangement.
• Goods shipped as per contracted term.
• Goods arrive at local port or warehouse, depending on contracted term.
• Support & re-ordering.
FAQ(Frequency Asked Questions),to provide you a suitable model,pls confirm:
1.Working pressure(bar/Mpa/psi)?
2.Air delivery(CFM/m3/min)?
3.What's the compressor used for?
4.Voltage in your couontry(V/PH/HZ)?
5.A whole equipment includes: air compressor,air dryer,air filters and air tank.
Any need,pls don't hesitate to contact us! Let's make better life together!
