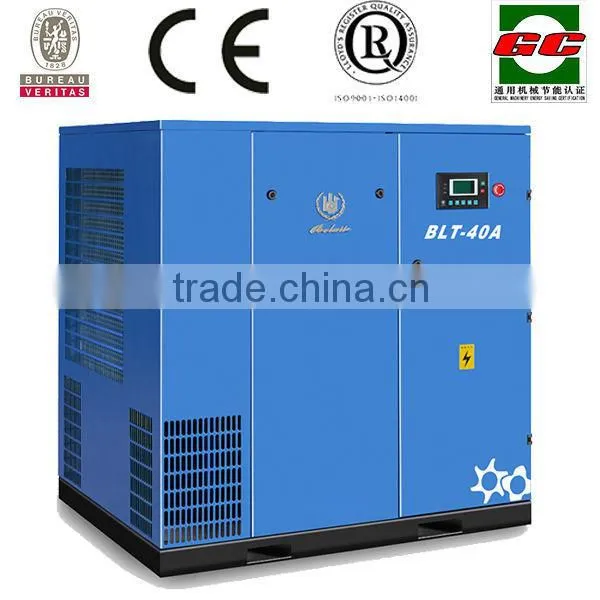

Atlas Copco (Bolaite) 30kW 8bar China Air Compressor
Main spare parts of 30kW 8bar China Air Compressor :
1.Air Filter: in general, we should clear the dust o the surface of air filter every 1000hours,and the method is to blow down the dust from inside to outside.
2.Air Inlet Valve: When starting,stopping or emptyit all uses the two-way solendid valve action to control the air inlet valve piston and up close valve.If the pressure resches the upper limit valve of pressure switch,the
pressure switch will act,and the two-way solenoid valve begins to discharge and pushes up the air lnlet piston to close the valve and become empty load state.
3.Oil filter: oil filter is a kind of filters of paper characteristic with the function to remove the impurities in oil,such as mental particles,oil deterioration and so on,its filtering precision is between 10μ-15μ,which will well pretect the bearing and rotors.
4.Cooling System:cool air sucked by a circulating fan to blow over the heat dissipating fins of cooler and exchange heat with compressed air and lubricating oil to reach the cooling effects.
Air& Oil Flow Chart of 30kW 8bar China Air Compressor :
Features of 30kW 8bar China Air Compressor :
| Item | Name | Source |
| 1 | Air ends |
Sweden Atlas Origin |
| 2 | Bearing |
100% Sweden SKF (LIFE60000hours ) |
| 3 | Oil filter |
Germany MANN Origin |
| 4 | Pressure sensor |
UK GEMS Origin |
| 5 | Air Intake Valve |
Sweden Atlas Origin |
| 6 | Container |
Shanghai ShenJiang |
| 7 | Oil/Gas separator |
Germany MANN Origin |
| 8 | Lubricating Oil |
BLT Origin |
| 9 | PLC |
Schneider Electric France Origin |
| 10 | Suction valve |
Sweden Atlas Origin |
| 11 | Thermostat valve |
Austria Hoerbiger |
| 12 | Pressure valve |
HoerbigerAustria Origin |
| 13 | Electro motor |
ABB WOLONG |
Technical parameter of 30kW 8bar China Air Compressor :
Model |
|
BLT-40A |
|
Air flow |
M3/min |
4.50 |
|
Working pressure |
bar |
8 |
|
Compression stage |
|
Single stage compression |
|
Cooling model |
|
A-Air cooled |
|
Discharge temperature |
°C |
≤the ambient temperature +15°C |
|
Noise Level |
dB(A) |
65±2 |
|
Transmission mode |
|
Belt Driven |
|
Power supply |
V/Ph/Hz |
As customers’ requirement |
|
Motor power |
KW/HP |
30KW/40HP |
|
External dimensions |
L |
mm |
1100 |
W |
Mm |
865 |
|
H |
Mm |
1145 |
|
Weight |
Kg |
415 |
|
Exhaust Pipe diameter |
inch |
G1” |
|
Motor & Bearing of 30kW 8bar China Air Compressor
Air end of 30kW 8bar China Air Compressor :
Shipment mode of 30kW 8bar China Air Compressor :
Atlas Copco Air Compressor your first choice!
