Atlas Copco 160kW 7bar Energy Saving air lubricated
screw air compressor
Features of air lubricated screw air compressor:
| Item | Name | Source |
| 1 | Air ends |
Sweden Atlas Origin |
| 2 | Bearing |
100% Sweden SKF (LIFE60000hours ) |
| 3 | Oil filter |
Germany MANN Origin |
| 4 | Pressure sensor |
UK GEMS Origin |
| 5 | Air Intake Valve |
Sweden Atlas Origin |
| 6 | Container |
Shanghai ShenJiang |
| 7 | Oil/Gas separator |
Germany MANN Origin |
| 8 | Lubricating Oil |
BLT Origin |
| 9 | PLC |
Schneider Electric France Origin |
| 10 | Suction valve |
Sweden Atlas Origin |
| 11 | Thermostat valve |
Austria Hoerbiger |
| 12 | Pressure valve |
HoerbigerAustria Origin |
| 13 | Electro motor |
ABB WOLONG |
air lubricated screw air compressoradvantages :
1. Simplicity of operator: Our air compressor has Industry PLC control platform, which may adapt different operating mode condition; English display system, simple easy to understand; The intelligent automation control and the self-failure diagnosis system may realize unattended.
2. Highly effective main engine: The main engine adopts Atlas original installation screw main engine, guarantees stably and highly effective.
3. Advanced disposition: the dispositions adopt international famous brand dispositions, rate reaches as high as above 80%.
Air course system: Uses German MANN Corporation or the British DH Corporation's oil separator and the air strainer, and the Japanese Corporation's pressure regulator valve and so on. It guaranteed provides the high quality gas source.
Oil duct system: Uses the German MANN Corporation's oil filter, filters the contamination which in the lubricating oil. It guaranteed that oil duct system unobstructed.
Cooling system: Uses the low temperature difference design, coordinate high temperature and the humidity environment for the design premise. The water cooling temperature rise in 6~8 degrees, guarantees the air compressor outlet temperature ≤40C. The air cooling temperature is the temperature adds 15C.
Electric system: Uses international famous brand products, guarantees system reliably.
Motor: Uses the China name brand motor, entirely sealed, protection Class IP54; Class F insulation.
Technical parameter of air lubricated screw air compressor
Model |
|
BLT-200A/W VFC |
|
|
Air discharge Pressure discharge |
m3/min/Mpa |
11.2-28.0/0.7 |
|
10.8-27.5/0.8 | |||
-- | |||
--- | |||
No of compression stage |
Single stage compression |
||
Cooling model |
|
A-Air cooling W-Water cooling |
|
Discharge temperature |
°C |
≤The environment temperature +15°C(Air cooling) ≤40°C(Water cooling) |
|
Noise Level |
dB(A) |
75±2 |
|
Transmission mode |
|
Elastic direct transmission |
|
Power supply |
V/Ph/Hz |
As your demand |
|
Motor power |
KW |
160 |
|
Stating model |
|
Variable frequency Start |
|
External dimensions |
L |
mm |
2736 |
W |
mm |
1806 |
|
H |
mm |
2100 |
|
Weight |
Kg |
3610/3580 |
|
Exhaust pipe diameter |
inch |
DN80 |
|
Inlet pipe diameter |
inch |
G2” |
|
Motor & Bearing of air lubricated screw air compressor
Air end of air lubricated screw air compressor:

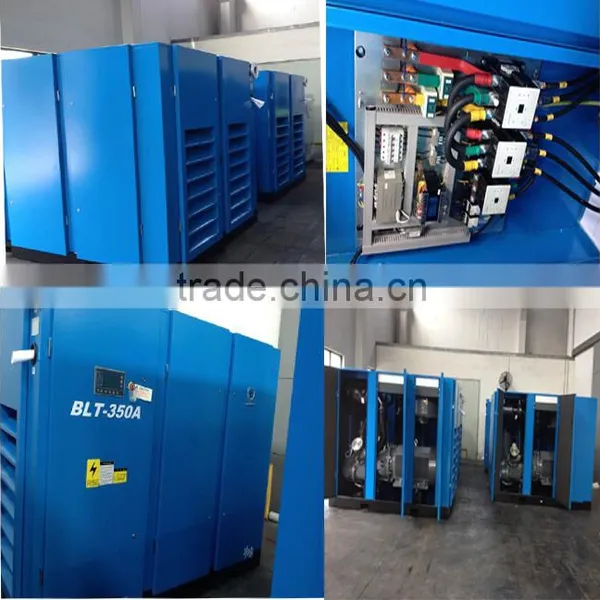

Workshop& Factory of air lubricated screw air compressor:
Shipment of air lubricated screw air compressor:
