Atlas Copco (Bolaite) variable frequency double screw
air compressor
Air end
Core components air end supplied by the group company, using the world's most advanced rotor
technology.Patented line, the best line speed, always in the most efficient running, energy efficiency
significantly ahead of the market similar products;
High stiffness design of the rotor, to prevent leakage, ensure long life and reliable operation.
Transmission System
Transmission System well-designed and after a long endurance test, good stability, reliable operation and long service life.
Core components imported brands, high transmission accuracy and efficiency.
High quality Motor
High quality and efficient design, F class insulation;
IP54 dust-proof closed motor , it can be safely running in a relatively poor working conditions.
High efficient Cooler
Large oil cooling design: even at high temperature, dust environment, also to ensure that the
lubricating oil temperature in the normal range, to ensure the safety of the compressor in summer.
Technical Parameter of variable frequency double screw air compressor
| Model | BLT-20A | |
| Air delivery | m3/min | 1.2-2.25/1.0-2.15/0.9-1.95/0.5-1.60 |
| Working Pressure | bar | 7/8/10/13 |
| Compression stage | Single stage compression | |
| Cooling model | Air cooling | |
| Discharge temperature | °C | ≤The environment temperature +15°C |
| Noise Level | dB(A) | 63±2 |
| Transmission mode | Belt transmission | |
| Voltage | V/Ph/Hz | 380V/3Ph/50Hz or as your demand |
| Motor power | KW/HP | 15/20 |
| Starting model | variable frequency starting | |
| External dimensions | mm | 1100*865*1380mm(L*W*H) |
Weight |
kg | 505 |
| Exhaust Pipe diameter | inch | G1” |
Remarkable components supply chain.
| Item | Parts | Brand |
| 1 | Air End | Atlas Copco |
| 2 | Intake Valve | Hoerbiger (Austria) |
| 3 | Solenoid Valve | CEME (Italy) |
| 4 | Temperature Sensor | Hoerbiger (Austria) |
| 5 | Pressure Sensor | Huba Original (From Switzerland) |
| 6 | Motor | Qingjiang Motor |
| 7 | Coupling | Germany KTR |
| 8 | Thermostat Valve | Italy VMC |
| 9 | PLC | Schneider Electric (France), SIEMENS |
| 10 | Minimal Pressure Valve | Hoerbiger (Austria) |
| 11 | Air Filter Element | Germany MANN |
| 12 | Oil Filter Element | Germany MANN |
| 13 | Oil Separator Element | Germany MANN |
| 14 | Bearing | Sweden SKF |
Pressure Valve,Oil filter of variable frequency double screw air compressor
Air end and Bearing of variable frequency double screw air compressor

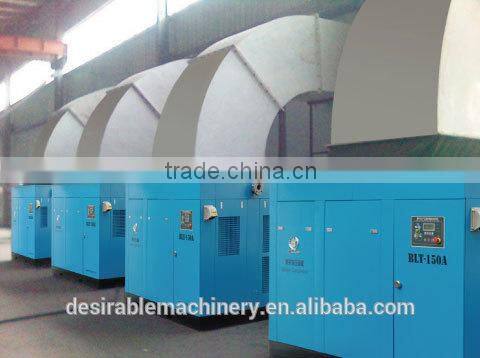

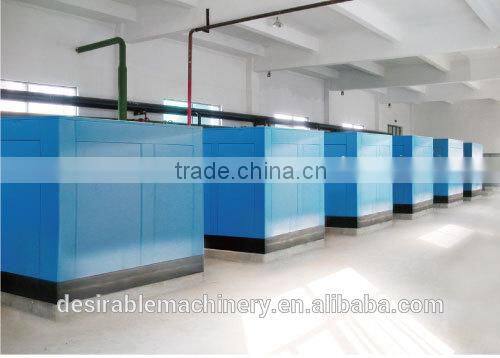

Factory and Workshop For your reference
