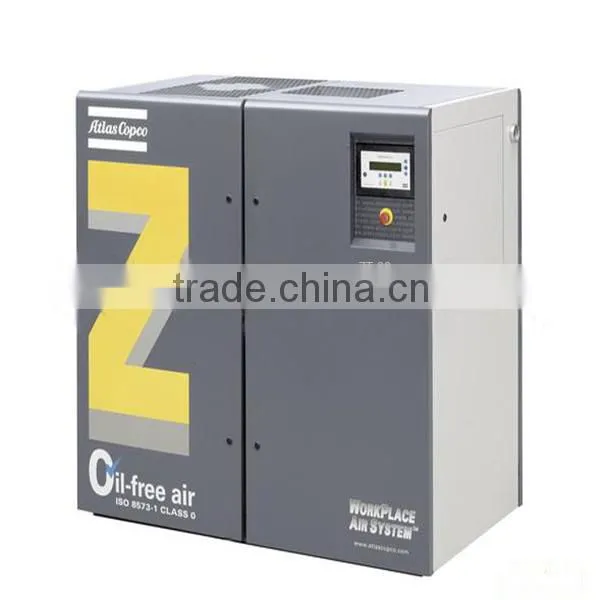

Atlas Copco Stationary Oil Free Air Compressor (ZT22)
US$ 5,000 - 83,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Screw, stationary oil free air compressor
Configuration:
Stationary
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Atlas Copco Mini Oil Free Noiseless Air Compressor (ZT22)US$ 5,000 - 83,500MOQ: 1 Set -
Atlas Copco Low Noise Oil Free Air Screw Compressor (ZT22)US$ 5,000 - 83,500MOQ: 1 Set
-
Atlas Copco Silence Oil Free Screw Compressor(ZT22)US$ 5,000 - 83,500MOQ: 1 Set
-
Atlas Copco Hot Sale GAe11-30 Oil-injected Air Screw CompressorUS$ 5,000 - 10,000MOQ: 1 Set
-
Atlas Copco 37kw Oil-free Screw Air CompressorUS$ 5,000 - 83,500MOQ: 1 Set
Condition
New
Type
Other, Screw, stationary oil free air compressor
Configuration
Stationary
Power Source
AC Power
Lubrication Style
Oil-free
Mute
Yes
Place of Origin
Shanghai, China
Brand Name
Atlas Copco(Bolaite)
Model Number
ZT 22 FF air compressor
Voltage
380V/400V/415V/440V and others
Dimension(L*W*H)
1840*965*2435mm
Weight
1400kg
Certification
ISO9001,FCC,CE,ASME,GC and so on
Warranty
1 year/gas screw compressor
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
stationary oil free air compressor1.Durable Atlas copco air end
2.High precision and quality
3.CE,ISO,GC certification
Atlas Copco stationary oil free air compressor
Customer benefit
- Highest reliability – For over 50 years, Z compressors stand for durability and reliability. They incorporate Atlas Copco’s proven screw technology, stainless steel coolers, AGMA A4/DIN 5 gears and state-of-the art electrical drive systems, all of which contribute to overall high reliability. Z compressors are built using long-standing internal engineering practices, and are manufactured and tested according ISO 9001.
- Certified 100% oil-free – Z 22-900 compressors provide you with 100% pure, clean air that complies with ISO 8573-1 CLASS 0 (2010) certification. CLASS 0 means zero risk of contamination; zero risk of damaged or unsafe products; zero risk of losses from operational downtime; and zero risk of damaging your company’s hard-won professional reputation. In 2006 Atlas Copco was the first manufacturer in the world to receive such certification on an oil-free compressor.
- Maximum energy savings – Atlas Copco’s unique and time proven rotor coating ensures high efficiency over the compressors lifetime. The state-of-the art air compressor element is powered by a high-efficiency electric motor, contributing to maximum compressor package efficiency. Further optimize your energy savings with our innovative and unique Variable Speed Drive, our energy recovery feature and energy-free MD dryers.
- Easy installation – The integrated design of the Z compressor includes internal piping, coolers, motor, lubrication and control system: all supplied as a ready-to-use package. Installation is fault-free, commissioning time is low and no external instrument air is required.
- Advanced control and monitoring – To maximize efficiency and reliability, the Elektronikon® controls the main drive motor and regulates system pressure within a predefined and narrow pressure band. The Elektronikon® controller can be adapted to your specific needs with extra sensors, digital contacts, fieldbus, Internet and SMS communication functions. In combination with the ES multiple compressor controller, the operation of your complete compressor room is optimized.
-
- Technical parameter of stationary oil free air compressor
-
Model
ZT 22 FF
Air delivery
m3/min
5.3
Working Pressure
bar
7
Compression stage
Single stage compression
Cooling model
Air cooling
Discharge temperature
°C
≤The environment temperature +15°C
Noise Level
dB(A)
65±2
Transmission mode
Direct transmission
Voltage
V/Ph/Hz
380V/3Ph/50Hz
Motor power
KW/HP
22/30
Starting model
Y-* starting
External dimensions
mm
1585*1170*1800mm(L*W*H)
Weight
kg
1180
Exhaust Pipe diameter
inch
G1 1/2”
-
Some detailed products of stationary oil free air compressor
