Specifications
air compressor jack hammer1.XAS97Dd;
2.atlas copco portable air compressor ;
3.Zhongda electric motor ;
4.Delivery in time.

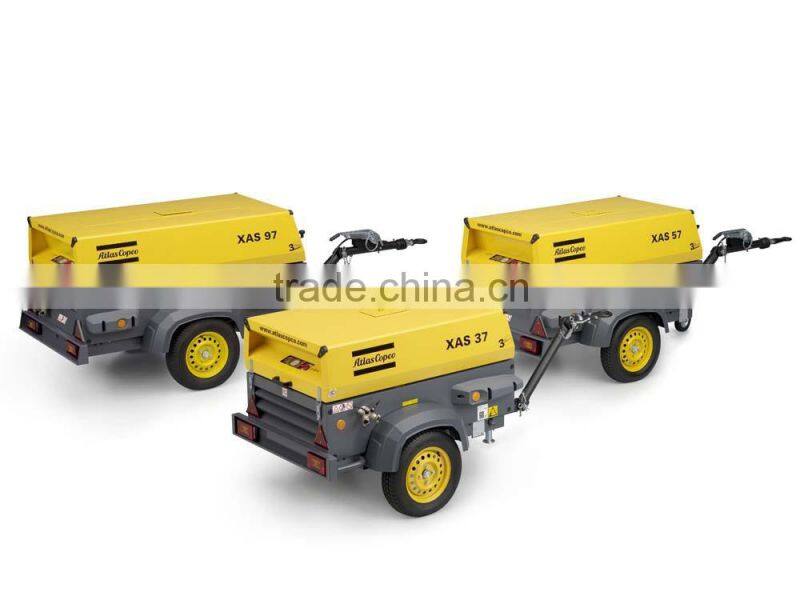

Atlas Copco Model XAS97Dd air compressor jack hammer
Technical Data of air compressor jack hammer
Compressor Data |
XAS97Kd (XAS185Kd) |
Free Air Delivery @ Normal Working Pressure |
97 L/S (5.3m³/min, 185CFM) |
Normal Working Pressure |
7 bar (102 psig) |
Compressor Oil Capacity |
5.5 L |
Sound Pressure Level (ISO2125) |
70dB(A) +/- 3 |
|
|
Diesel Engine Data |
Deutz F2M2011 |
Cylinders |
3 |
Horsepower Developed @ Rated Speed |
36 kW |
Rated revolution |
3600 rpm |
Fuel Tank Capacity |
32 L |
|
|
Dimensions |
|
Length |
2927 mm |
Width |
1330 mm |
Height |
1252 mm |
Weight ( filled with oil & coolant , Initial fuel ) |
840 kg |
Atlas Copco’s Size 1 portable compressors are specially designed for heavy-duty,
harsh environments. They are totally at home in the renovation industry and
quarries, are ideal for sandblasting applications, and operate reliably at high
altitudes and extremes of temperature. Powered by an ultra-efficient 4-cylinder
Kubota engine, Size 1 compressors give you a reliable source of compressed air for
your applications, or for combinations of your pneumatic tools such as rock drills and
hammers. All models meet the latest exhaust emission and noise directive criteria.
air compressor jack hammer for Customer benefits
- Built to last – Their robust construction can withstand rough treatment over a long lifetime of operation in the harshest of work environments. Zincor™ steel canopies offer high resistance to corrosion.
- Low operating costs – The highly efficient screw element is paired with either a COM 2 (C2) or COM 3 (C3) compliant Kubota diesel engine, to give you low operating costs and high resale value.
- Highly transportable – Your operators will appreciate the small dimensions and light weight of Size 1 compressors, as they can easily maneuver the machines from one location to another.
- Easy access for fast service – The gull-wing door concept enclosure provides exceptional access to all the service points, accelerating maintenance and reducing downtime.
