HG330L-8 Diesel Portable Screw Air Compressor
US$ 1,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Screw, HG330L-8 portable screw air compressor
Configuration:
Portable
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Atlas Copco Series Motor Driven Portable CompressorUS$ 10,000 - 100,000MOQ: 1 Set -
Portable Diesel Engine Driven Air Compressors JBP20US$ 10,000 - 100,000MOQ: 1 Set
-
Shanghai Screw Vsd Compressor BLT-25A VFC ManufacturerUS$ 500 - 1,000MOQ: 1 Unit
-
Portable Diesel Air Compressor XATS 156DdUS$ 5,000 - 100,000MOQ: 1 Set
-
Air Compressor Portable XAHS186DdUS$ 10,000 - 100,000MOQ: 1 Set
Condition
New
Type
Other, Screw, HG330L-8 portable screw air compressor
Configuration
Portable
Power Source
AC Power
Lubrication Style
Lubricated
Mute
No
Place of Origin
Zhejiang, China
Brand Name
Desirable
Model Number
HG330L-8 portable screw air compressor
Voltage
380V/50HZ/3PH
Dimension(L*W*H)
3220*1850*1750
Weight
1980-2090
Certification
ISO14000
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

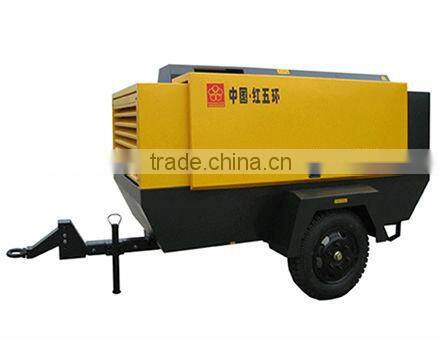

HG330L-8 Diesel screw air compressor
Features:

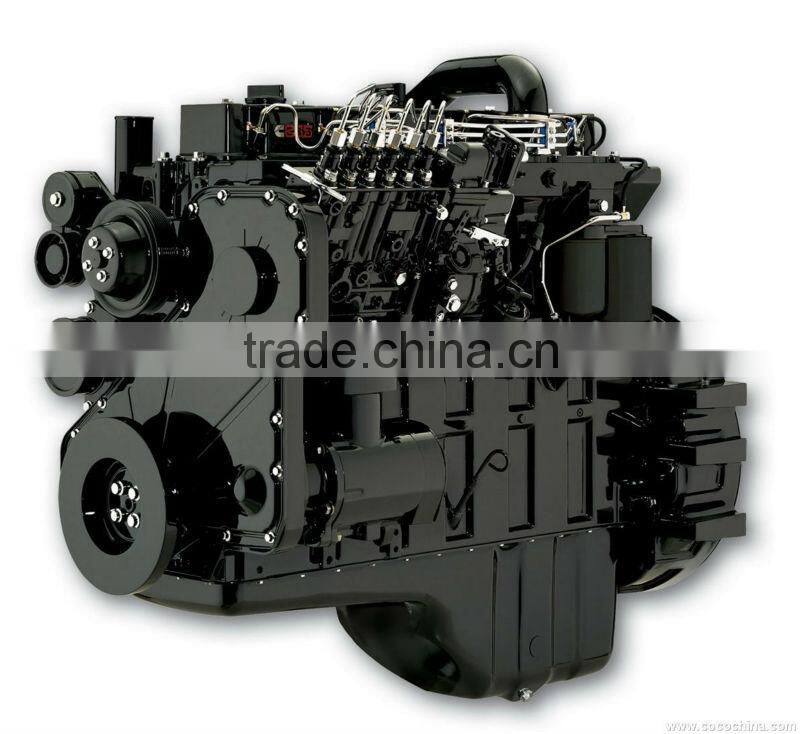

1. Authoritative of the engine:

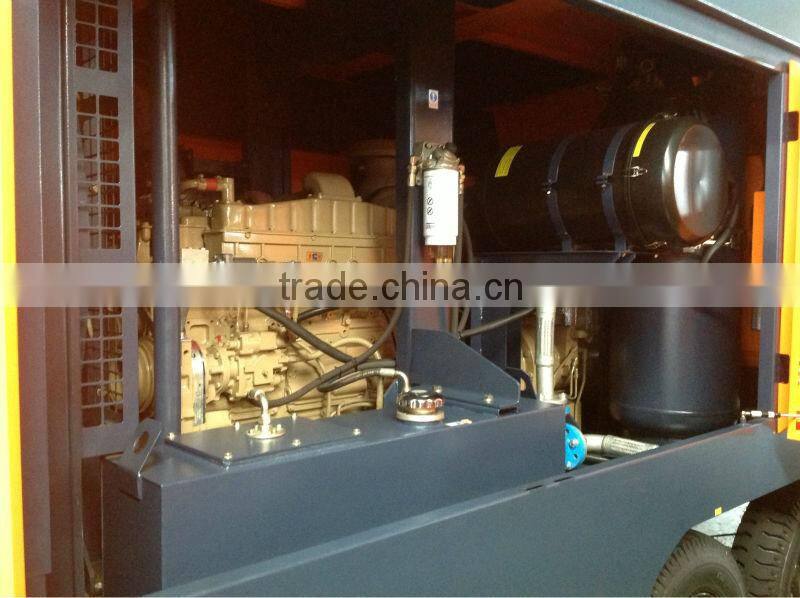

Adopts the Cummins engine, which owns abundant experience in Mechanical engineering field. This series engine adopts the turbo charging, helps to improve the dynamic property, keep the lowest displacement during its working, and consume the lowest fuel.
2. Screw air compressor:

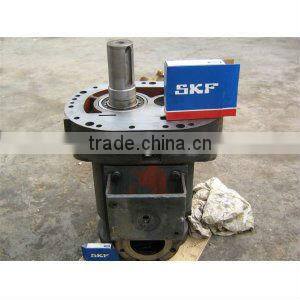

Adopts original imported and custommade gearless host of screw air compressor, real direct drive machine, and run stably. The perfect screw ensures the Hongwuhuan air compressor reach the largest pressure, while output more air at a less energy consumption.
3. Adopts the humanized design:
The engine and the air compressor are equipped with independent two stage air filter system, ensuring the wastage of the machine’s core components reduced to the lowest under wicked working environment in the field.

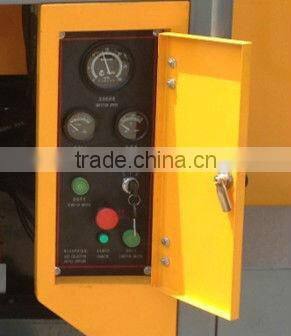

4. The simple operation:
The operation panel is easy to operate and can start when you stir the igniting switch. It also has the automatically shutdown protection function. All kinds of safety light help the user to see the running condition at one sight. The control switch and indicating instrument are at the same panel, and near to the air valve, which is convenient to real-time monitoring for operator.
Specifications: portable screw air compressor
| Model | HG330L-8 | |
| Air compressor | style | Double screw, single stage compression, Portable |
| Air delivery(m3/min) | 10 | |
| Rated working pressure(bar) | 8 | |
| Range of working pressure(bar) | 5-8 | |
| Lube capacity (L) | 48 | |
| Interface dimension, quantity | R1.1/2″×1,R1″×1 | |
| Tire specifications | 6.5-16×2 | |
| Tire pressure(kPa) | 500-600 | |
| Distance of wheel (mm) | 1480 | |
| Elevation work Max.(m) | 3000 | |
| L×W×H(mm) | 2880×1740×1760 | |
| Weight | 1950 | |
| Noise dB(A) | 78-80 | |
| Diesel engine | Model | YC4B115Z |
| Style | Cooled stroke4 direct injection supercharger | |
| Rated power(kW/HP) | 84/115 | |
| Rated speed(rpm) | 2400 | |
| Coolant volume ( L) | 20-24 | |
| Engine oil capacity (L) | 9-12 | |
| Fuel tank capacity (L) | 120-160 | |
| 80% load oil wear(L/ h) | 13-14 | |
