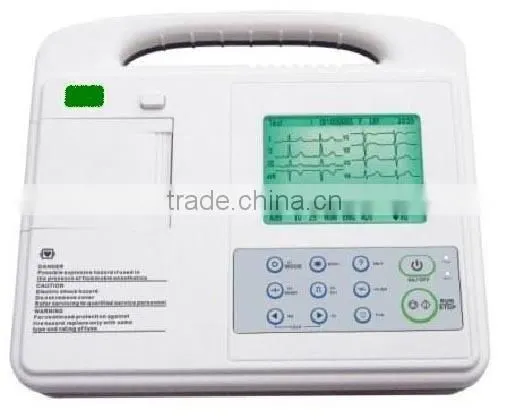

Help CenterMedical Electrocardiograph ECG-1101G
Related Products
Specifications
medical electrocardiograph1101GSINGLE CHANNEL
DISPLAY: LCD
LEAD-OFF INDICATOR
RESOLUTION:12BIT/1000Hz
medical electrocardiograph1101G
1.FEATURES
Single channel ECG machine with measurement
Manual/Auto/Arrhythmia Analysis Modes
Lead-off indicator
Built in rechargable NI-MH battery 12V(1500mAh)
Adapt to 110-230V,50/60HZ AC power supply
Built in USB/RS232 interface(ECGNET software optional)
Package:40cm×34cm×22cm G.W:4.6KG N.W:1.7KG
20×2character LCD,USB is optional (for SXD-1A)
320×240graphic 3.8inch LCD,16cases save/replay(for SXD-1A+)
2.SPECIFICATIONS
Lead: standard 12 leads
Acquisition: Simultaneous 12 leads
Resolution:12bit/1000Hz
Operation mode:Manual/Auto/Analysis Modes
Filter:AC.EMG Filter
Drift filter:Anti-Drift System
CMRR:≥100dB,with AC Filter
Input circuit:Floating,Protection against defibrillator effect
Input circuit current:≤0.1μA
Input Impedance:>50MΩ
Patient current leakage:<10μA
Calibrating voltage:1mV±3%
Voltage tolerance:±500mV
Time constant:>3.2s
Frequent response:0.05Hz~160Hz
Noise level:≤15μVp-p
Threshold:≤20μV
Paper speed:25,50mm/s(±3%)
Sensitivity:Auto,2.5,5,10,20,40mm/mV
Recorder:High resolution thermal printer
Safety standard:GB9706.1-2007,IEC Class I,Type CF
