Specifications
portable 6 channel ECGmanual/auto/arrhythmia analysis modes
built in USB/RS232 interface
built in rechargeable battery
portable 6 channel ECG1106
1.FEATURESFEATURES

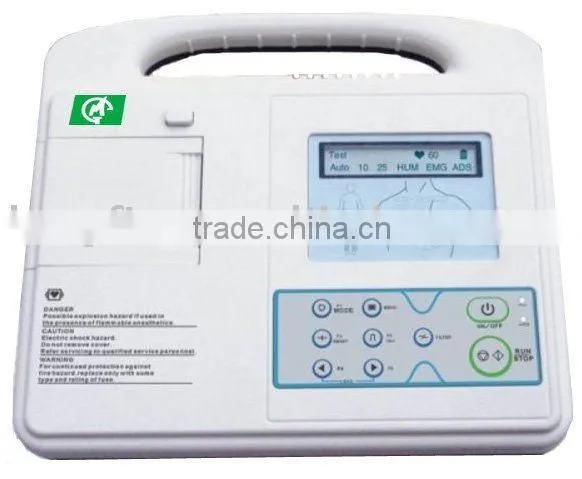

Portable 6 channel ECG machine
Manual/Auto/Arrhythmia Analysis Modes
112mm 3/6 channel format recording
Built in rechargable Li-Ion battery 14.4V(2200mAh)
Adapt to 110-230V,50/60HZ AC power supply
Real-time ECG waveform,cases save/replay
Built in USB/RS232 interface(ECGNET software optional)
Package:40cm×34cm×22cm GW:4.6KG NW:1.7KG
320×240graphic 3.8 inch LCD
2.SPECIFICATIONS
Lead: standard 12 leads
Acquisition: Simultaneous 12 leads
Resolution:12bit/1000Hz
Operation mode:Manual/Auto/Analysis Modes
Filter:AC.EMG Filter
Drift filter:Anti-Drift System
CMRR:≥100dB,with AC Filter
Input circuit:Floating,Protection against defibrillator effect
Input circuit current:≤0.1μA
Input Impedance:>50MΩ
Patient current leakage:<10μA
Calibrating voltage:1mV±3%
Voltage tolerance:±500mV
Time constant:>3.2s
Frequent response:0.05Hz~160Hz
Noise level:≤15μVp-p
Threshold:≤20μV
Paper speed:25,50mm/s(±3%)
Sensitivity:Auto,2.5,5,10,20,40mm/mV
Recorder:High resolution thermal printer
Safety standard:GB9706.1-2007,IEC Class I,Type CF
