Specifications
computer wood floor making machine:1.CE
2:Weihong NC-studio control card or DSP
3:stepper driver

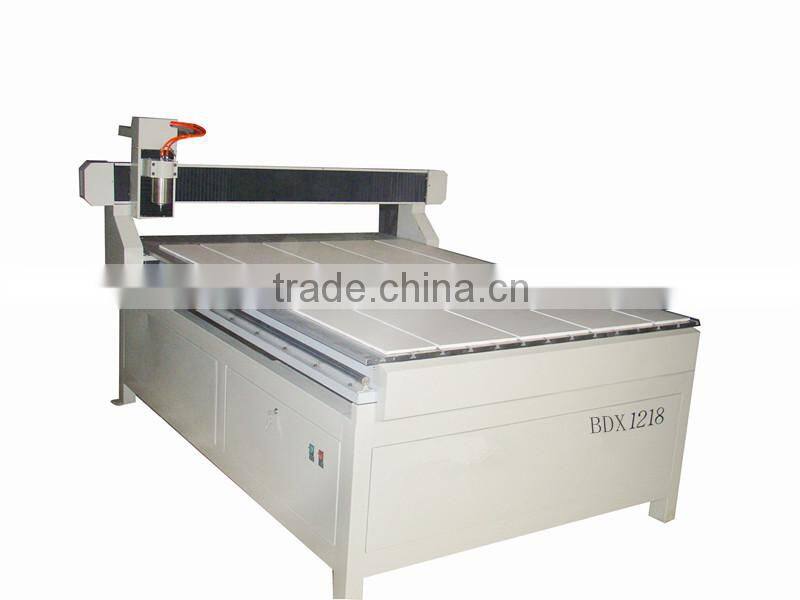

Economic BDX-1218 wood floor making machine

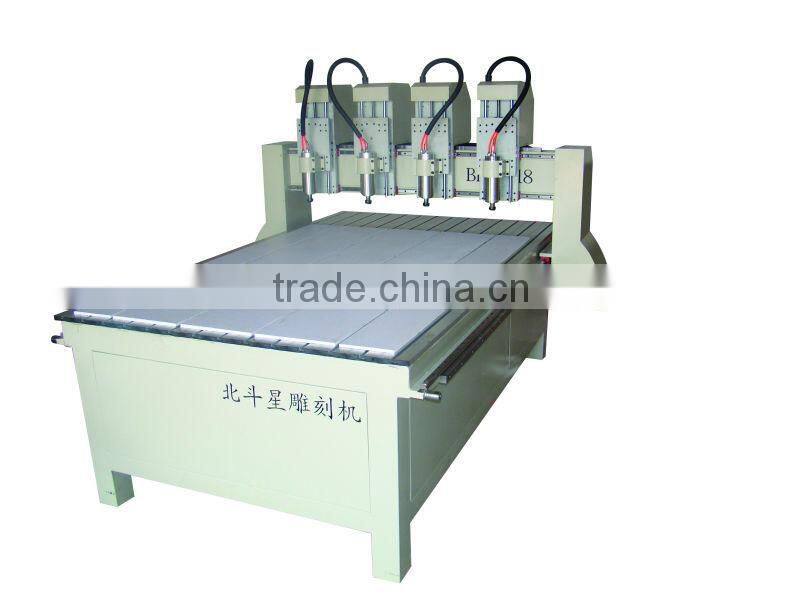

Machine parts of wood machine:
Samples Show of wood machine:
Specifications for wood machine:
1)Adopting imported linear rails guide ways and double rows four line slide blocks; the machine operates smoothly
and accurately bearing heavy load and long working life.
2)The machine adopts steel seamless welding, it really rigid deformation, we installed steel plate at the back of work
table, high strength and rigidity is good, the machine can reach a ton or more load – bearing strength.
Application material for wood machine:
Wood engraving cutting, organic glass, Acrylic, PVC, ABS, KT, wood, jewelry, marble, aluminum-plastic and all kinds of materials’ surface working and cutting etc.
Technical parameter for wood machine:
Model |
BDX1218 |
|
Working Area |
1200×1800×200mm |
|
Spindle Motor |
3.0 kw water cooling spindle (1.5kw,2.2kw,5.5kw,9.0kw optional) |
|
Working Mode |
Stepper motor |
|
Control System |
Weihong NC-studio |
|
Table Surface |
T slot |
|
Frame |
wholly steel structure |
|
Motion Positioning Accuracy |
± 0.03/300mm |
|
Repositioning Accuracy |
± 0.05mm |
|
Max Motion Speed |
50,000mm/min |
|
Max Engraving Speed |
30,000mm/min |
|
Rotating Speed of Spindle |
2,4000rpm |
|
Z-axis setting |
Auto Z origin tool sensor |
|
Dictate Format |
G code, *.u00, *.mmg, *.plt |
|
Operating Voltage |
3phase 380v |
|
Software |
Ucancam Type3 Router8 original with Dongle or Wentai (ArtCUT), ArtCAM software |
|
Packing Size |
3010*1920*1720mm |
|
Lubrication System |
Oil lubrication system |
|
Gross Weight |
450kg |
|
Noise Level |
Racing |
LAeep dB(A)72±1 |
|
Engraving |
LAeep dB(A)80±2 |
|
Engraving Peak |
LAeep dB(C)95 |
Optional Parts |
Dust Collecting System |
|
|
Mist Sprayer and flume |
|
|
Rotary device with Dia80mm/100mm/200mm |
|
|
DSP/Syntec |
|
|
Italy HSD spindle |
|
|
Delta inverter |
|
After-sale service:
1) One year free warranty under normal use and we give maintenance for 18 months.
2) First class engineers give 24 hours service on Internet and Telephone, free instructions and
problem solving.
3) Free training to make sure you master the operating of cnc router.
If any further details you need, please contact us with "contact" buttom.
Please feel free to contact us,we will reply within 24h!
We want to know:
1 How much the spindle power do you need?
2 What materials do you need to processing?
3 The size and thickness of your materials?
