China Cheap Kitchen Cabinets Making ATC Wood Cnc Router

China Cheap Kitchen Cabinets Making ATC Wood Cnc Router thumbnail-1
China Cheap Kitchen Cabinets Making ATC Wood Cnc Router thumbnail-2
China Cheap Kitchen Cabinets Making ATC Wood Cnc Router thumbnail-3
China Cheap Kitchen Cabinets Making ATC Wood Cnc Router thumbnail-4
China Cheap Kitchen Cabinets Making ATC Wood Cnc Router thumbnail-5
China Cheap Kitchen Cabinets Making ATC Wood Cnc Router thumbnail-6
China Cheap Kitchen Cabinets Making ATC Wood Cnc Router photo-1
China Cheap Kitchen Cabinets Making ATC Wood Cnc Router photo-2
China Cheap Kitchen Cabinets Making ATC Wood Cnc Router photo-3
China Cheap Kitchen Cabinets Making ATC Wood Cnc Router photo-4
China Cheap Kitchen Cabinets Making ATC Wood Cnc Router photo-5

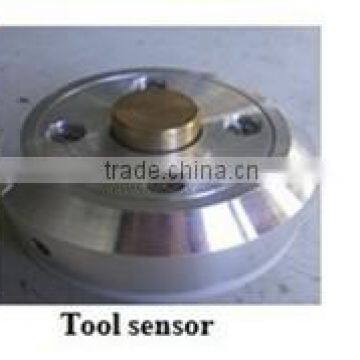

China Cheap Kitchen Cabinets Making ATC Wood Cnc Router photo-6
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Jinan Big Dipper CNC Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name Dipper
Model Number BDX-1224
Voltage AC220V/50/60Hz,1PH
Power(W) 1.5KW
Dimension(L*W*H) 1200*2400*1500mm
Weight 1000KG
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Detailed info of atc wood cnc router:
1.CE,ISO standard
2:wind cooling spindle
3:stepper driver and motor
4Fuling invertor

Alibaba China cheap kitchen cabinets making ATC wood cnc router

Alibaba China cheap kitchen cabinets making ATC wood cnc router

Machine parts of   ATC wood cnc router :



Alibaba China cheap kitchen cabinets making ATC wood cnc router



Application material for ATC wood cnc router  :

Wood engraving cutting, organic glass, Acrylic, PVC, ABS, KT, wood, jewel, marble, aluminum-plastic and all kinds of materials’ surface working and cutting etc.

Samples Show of   ATC wood cnc router :







 Alibaba China cheap kitchen cabinets making ATC wood cnc routerAlibaba China cheap kitchen cabinets making ATC wood cnc router

Specifications for ATC wood cnc router  :

1.     ATC wood cnc router     adopts import liner square guide,double four ball slider,so it can bear big gravity,move steady,ghigh accuracy,longevity,import ball with high accuracy,and precision knife,so it is suitable for batch processing kinds of materials.

2.         ATC wood cnc router can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate and so on.

3.       ATC wood cnc router     is wholly break away from remote operation USB connector DSP operating system.Lever operation so it is easily to operate,humanity design and adopts special smart budget law so it can make the motor play full potential.Realize high speed processing.curve and straight line synchronize,the curve line is more perfect.And do not occupy computer memory so it can realize cutting spindle’s start-stop system.

4.       ATC wood cnc router has Six vacuum worktables,so it can absorb different size panel.vacuum pump can select import brand without oil so it can solve the problem when during winter the water circulation vacuum pump is difficult to change and add water.

5.    ATC wood cnc router  use high speed drive stepper motor and drive implement.Y axis adopts double motor drive,so it can make the high speed at 25 meters /minute operate with the cutting spindle so  the carving speed is quickly.







Flow chart of ATC wood cnc router:













Technical parameter for    wood cnc router 1224 :

NO.

Description

Parameter

1

X,Y,Z Working Area

1200*2400*1500mm

2

Table Size

1350*2550mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z Repositioning Positioning Accuracy

±0.05mm

5

Lathe Structure

Welded Structure

6

X, Y Structure

Taiwan TBI Ball Screw Transmission

7

Z Structure

Taiwan TBI Ball Screw Transmission

8

Max. Consume power

6.5Kw

9

Max. Rapid Travel Rate

10000mm/min

10

Max. Working Speed

6000mm/min

11

Spindle Power Motor

1.5 KW Chinese water-cooling spindle

12

Spindle Speed

0-24000RPM

13

Working Mode

Stepper

14

Working Voltage

AC220V/50/60Hz

15

Command

G Code, *uoo, *mmg, *plt

16

Operating System

Nc-studio control System

17

Interface

USB

18

Flash Memory

128M

19

Collet

ER11

20

X,Y Working Delicacy

<0.01mm

21

Software

Type3 software, Wentai software, Artcam software

22

Running Circumstance

Temperature: 0°C~45°C
Relative humidity: 30%~75%

23

Packing Size

1450*2670*1570mm/3090X1800X1570mm

24

Net Weight

1000KG

25

Gross Weight

1100KG

26

Optional

Air-cooling spindle

Servo motor

Water tank

Vacuum table

Gear transmission(Y axis two motors drive)
