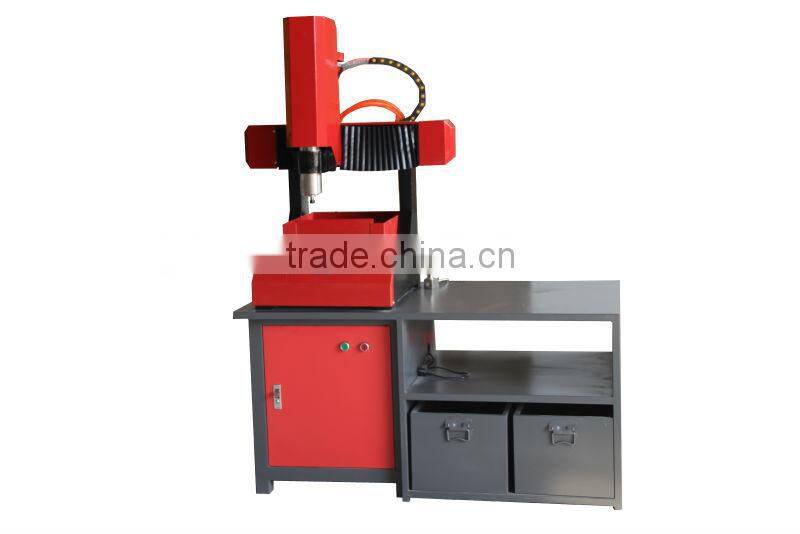

Mini BDXS-4040 jewelry engraving machine

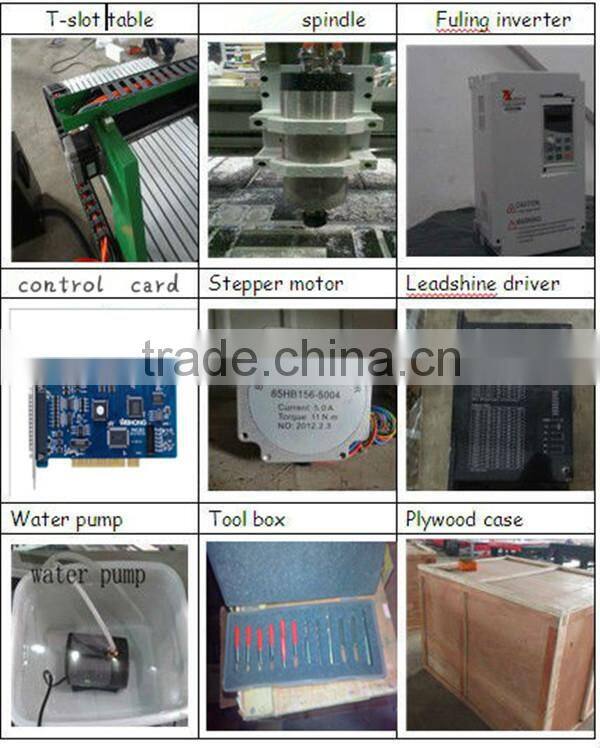

Machine parts of jewelry engraving machine:
Samples Show of jewelry engraving machine:
Performance feature of jewelry engraving machine:
1)It adopts international advanced precision guide rail,the slider pre-tightened device(make sure the slider no space).Germany import ball screw,so make sure the machine move steadily,high engraving accuracy,and little vibration.
2)The whole machine adopts iron bed and dragon door.The machine steady and run high precision.
3)800w water cooling constant power variable frequency motor,capability strong and less noisy.
Curving and straight line control independently.
4)High speed data transmission.
5)It adopts micro control system,breakpoint continued carving and restore engraving when power supply drop,specify the G code carved and so on advantage.(optional handle operation system,off computer operate).
Applicable industries of jewelry engraving machine:
It is mainly used for jewelry relief processing,pper,aluminum,zinc and so on metal engraving.
Technical parameter of jewelry engraving machine:
Model |
BDXS-3030 |
BDXS-4040 |
Table size |
350mm*350mm |
500*500mm |
Working size |
300*300*100mm |
400*400*100mm |
Engraving speed |
7000mm/min |
7000mm/min |
Resolution ratio |
0.0001mm/step |
0.0001mm/step |
Spindle |
frequency conversion water-cooled |
frequency conversion water-cooled |
Main axle rotating speed |
0~24000rpm |
0~24000rpm |
Main axle power rate |
1.5kw |
2.2kw(0.8kw,1.5kw,3.0kw and so on) |
Shank diameter |
ø3.175/ø4/ø6 |
ø3.175/ø4/ø6 |
Machining instruction |
G code /HPGL 3D |
G code /HPGL 3D |
Power |
1.5kw |
2.2kw |
Power supply |
AC220V50-60HZ |
AC220V50-60HZ |
If any further details you need, please contact us with "contact" buttom or through the methods below:
