Specifications
Detailed info of wood working cnc router1.CE
2:water cooling spindle
3:stepper driver and motor
4.fuling inverter

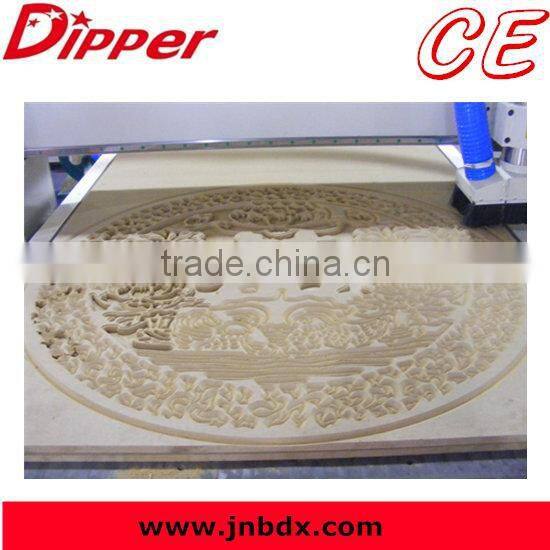

the newest style factory supply cheap price wood working cnc router
Machine parts of wood working cnc router :
Application material for wood working cnc router :
Wood engraving cutting, organic glass, Acrylic, PVC, ABS, KT, wood, jewel, marble, aluminum-plastic and all kinds of materials’ surface working and cutting etc.
Specifications for wood working cnc router :
1. wood working cnc router adopts import liner square guide,double four ball slider,so it can bear big gravity,move steady,ghigh accuracy,longevity,import ball with high accuracy,and precision knife,so it is suitable for batch processing kinds of materials.
2. wood working cnc router can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate and so on.
3. wood working cnc router is wholly break away from remote operation USB connector DSP operating system.Lever operation so it is easily to operate,humanity design and adopts special smart budget law so it can make the motor play full potential.Realize high speed processing.curve and straight line synchronize,the curve line is more perfect.And do not occupy computer memory so it can realize cutting spindle’s start-stop system.
4. wood working cnc router has Six vacuum worktables,so it can absorb different size panel.vacuum pump can select import brand without oil so it can solve the problem when during winter the water circulation vacuum pump is difficult to change and add water.
5. wood working cnc router use high speed drive stepper motor and drive implement.Y axis adopts double motor drive,so it can make the high speed at 25 meters /minute operate with the cutting spindle so the carving speed is quickly.
Technical parameter for wood working cnc router :
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300*2500*1500mm |
2 |
Table Size |
1350*2650mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Positioning Accuracy |
±0.05mm |
5 |
Lathe Structure |
Welded Structure |
6 |
X, Y Structure |
Taiwan TBI Ball Screw Transmission |
7 |
Z Structure |
Taiwan TBI Ball Screw Transmission |
8 |
Max. Consume power |
6.5Kw |
9 |
Max. Rapid Travel Rate |
10000mm/min |
10 |
Max. Working Speed |
6000mm/min |
11 |
Spindle Power Motor |
1.5 KW Chinese water-cooling spindle |
12 |
Spindle Speed |
0-24000RPM |
13 |
Working Mode |
Stepper |
14 |
Working Voltage |
AC220V/50/60Hz |
15 |
Command |
G Code, *uoo, *mmg, *plt |
16 |
Operating System |
Nc-studio control System |
17 |
Interface |
USB |
18 |
Flash Memory |
128M |
19 |
Collet |
ER11 |
20 |
X,Y Working Delicacy |
<0.01mm |
21 |
Software |
Type3 software, Wentai software, Artcam software |
22 |
Running Circumstance |
Temperature: 0°C~45°C |
23 |
Packing Size |
1450*2670*1570mm/3090X1800X1570mm |
24 |
Net Weight |
390KG |
25 |
Gross Weight |
425KG |
26 |
Optional |
Air-cooling spindle Servo motor Water tank Vacuum table Gear transmission(Y axis two motors drive) |
FAQ:
