Specifications

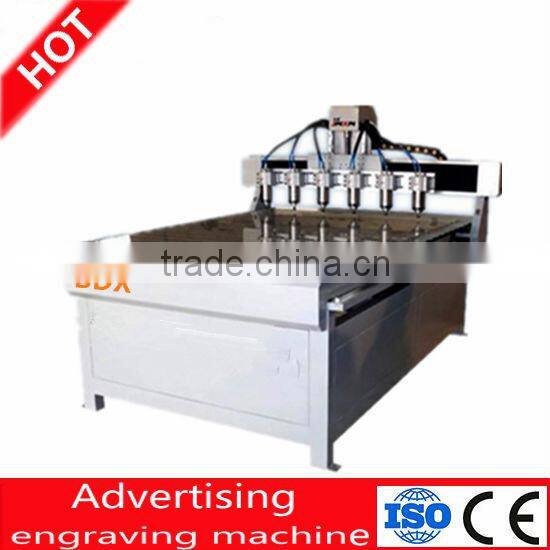

new product you can import from china wentai cnc advertising engraving machine1)CE
2)1.5kw water cooling splind
3) TBI screw
new product you can import from china mini advertising cnc router
sample of mini advertising cnc router :
parts of mini advertising cnc router :
product description:
1)Industrial production model,heavy all-steel welded,temperating aging treatment,solid and can not change the shape.mini advertising cnc router adopts Taiwan liner guide so mini advertising cnc router can bear big gravmini advertising cnc routery.Gantry movement fixed working mini advertising cnc router can process the material on the table freely.
2)mini advertising cnc router adopts import liner square guide,double four ball slider,so mini advertising cnc router can bear big gravmini advertising cnc routery,move steady,ghigh accuracy,longevmini advertising cnc routery,import ball wmini advertising cnc routerh high accuracy,and precision knife,so mini advertising cnc router is sumini advertising cnc routerable for batch processing kinds of materials
3)mini advertising cnc router adopts breakpoint memory,so mini advertising cnc router can make sure processing accidental (knife broken)or the next day smini advertising cnc routeruation.
4)mini advertising cnc router use high speed drive stepper motor and drive implement.Y axis adopts double motor drive,so mini advertising cnc router can make the high speed from 10--20 meters /minute above.
5)mini advertising cnc router can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate and so on.
6)This style machine can engrave all kinds of hollow out,the main feature is lmini advertising cnc routertle input but high income,lmini advertising cnc routertle maintenance and easily operate.
7)Advanced DSP control handle shank,The control area can finish multiple lays 3D process,mini advertising cnc router is able to make high speed and smooth three-dimensional process,engraving or cutting,mini advertising cnc router can realize operate off-line.
Application:
mini advertising cnc router is widely used in processing and engraving on color plate,PVC plate,acrylic,MDF plate and so on advertising industry.
Technical parameter:
Model |
BDX-6090 |
BDX-1325 |
BDX1325 High speed |
X,Y working area |
600*900mm |
1250*2450mm |
1300*2500mm |
Z working area |
80mm |
80mm |
150mm |
Table size |
780*1400mm |
1400*2900mm |
1480*3000mm |
Max travel speed |
3m-5m/min |
3m-5m/min |
6m-17m/min |
Max engraving speed |
2m-4m/min |
2m-4m/min |
6m-8m/min |
Resolution ratio |
0.005mm |
0.005mm |
0.005mm |
Reposition accuracy |
0.05mm |
0.05mm |
0.05mm |
Max feeding height |
110mm |
110mm |
110mm |
Command |
Gcode*.u00*.mmg*.plt |
Gcode*.u00*.mmg*.plt |
Gcode*.u00*.mmg*.plt |
Surroundings for software |
windows98/2000/xp |
windows98/2000/xp |
windows98/2000/xp |
Power(not include the spindle) |
2kw |
2kw |
2kw |
Power |
AC220V/50Hz |
AC220V/50Hz |
AC220V/50Hz |
Main axle power rate |
1.5kw |
2.2kw |
2.2kw |
Main axle rotating speed |
0-24000rpm/min |
0-24000rpm/min |
0-24000rpm/min |
Work mode |
stepper |
stepper |
stepper |
Machine weight |
200kg |
650kg |
850kg |
FAQ:
after sales-servise of mini advertising cnc router :
1)one year free warranty under normal use and we give miantenance for 18 months
2) First class engineers give 24hours service on Internet and Telephone, free instructions and
problem solving.
3) Free training to make sure you master the operating of mini advertising cnc router .
other machine of mini advertising cnc router :
package of mini advertising cnc router :
our factory:
