MDF,double Color Plate,PVC,Acrylic Advertising Engraving Machine

MDF,double Color Plate,PVC,Acrylic Advertising Engraving Machine thumbnail-1
MDF,double Color Plate,PVC,Acrylic Advertising Engraving Machine thumbnail-2
MDF,double Color Plate,PVC,Acrylic Advertising Engraving Machine thumbnail-3
MDF,double Color Plate,PVC,Acrylic Advertising Engraving Machine thumbnail-4
MDF,double Color Plate,PVC,Acrylic Advertising Engraving Machine thumbnail-5
MDF,double Color Plate,PVC,Acrylic Advertising Engraving Machine thumbnail-6
MDF,double Color Plate,PVC,Acrylic Advertising Engraving Machine photo-1
MDF,double Color Plate,PVC,Acrylic Advertising Engraving Machine photo-2
MDF,double Color Plate,PVC,Acrylic Advertising Engraving Machine photo-3
MDF,double Color Plate,PVC,Acrylic Advertising Engraving Machine photo-4
MDF,double Color Plate,PVC,Acrylic Advertising Engraving Machine photo-5
MDF,double Color Plate,PVC,Acrylic Advertising Engraving Machine photo-6
US$ 1,000 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Big Dipper
Model Number:
BDX-1325
Contact Supplier Request Quote Chat Now
Jinan Big Dipper CNC Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Big Dipper
Model Number BDX-1325

Specifications

advertising engravin machine:
1)1.5KW water cooled spindle
2)stepper motor and driver
3)CE,ISO standard
4)Fuling inverter

MDF,double color plate,PVC,Acrylic advertising engraving machine
of MDF,double color plate,PVC,Acrylic advertising engraving machine  : http://youtu.be/FmwCO0IY8S0
Product Description of  MDF,double color plate,PVC,Acrylic advertising engraving machine

MDF,double color plate,PVC,Acrylic advertising engraving machine

Performance feature of    neon sign equipment/advertising cnc router :

1.   MDF,double color plate,PVC,Acrylic advertising engraving machine
Industrial production model,heavy all-steel welded,temperating aging treatment,solid and can not change the shape.it adopts Taiwan liner guide so it can bear big gravity.Gantry movement fixed working  it can process the material on the table freely.

2.   MDF,double color plate,PVC,Acrylic advertising engraving machine
adopts import liner square guide,double  four ball slider,so it can bear big gravity,move steady,ghigh accuracy,longevity,import ball with high accuracy,and precision knife,so it is suitable for batch processing kinds of materials

3.  MDF,double color plate,PVC,Acrylic advertising engraving machine
adopts breakpoint memory,so it can make sure processing accidental (knife broken)or the next day situation.

4.   MDF,double color plate,PVC,Acrylic advertising engraving machine
use high speed drive stepper motor and drive implement.Y axis adopts double motor drive,so it can make the high speed from 10--20 meters /minute above.

5.   MDF,double color plate,PVC,Acrylic advertising engraving machine
can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate and so on.



nical parameters of  neon sign equipment/advertising cnc router

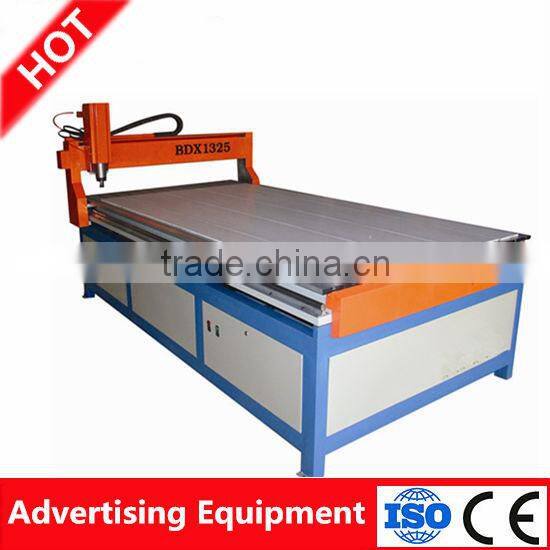

Model BDX-1325
Working size 1300*2500mm
body structure Steel structure
Working table aluminum material table
Working accuracy ±0.05mm
Repositioning accuracy ±0.05mm
Traveling speed >25m/min
spindle 1.5KW water cooling
Spindle rotary speed 0-24000rpm/min
control system NC studio
Drive and moter stepper motor
Transmission mode Taiwan HIWIN square guide rail for XYZ axis,gear wheel for XY axis,ball screw for Z axis
Working voltage AC380/50HZ

Max.power consumption

(whitout splind)

 1840w
Command language G-code,*u00,*mmg,*plt
Software Type3 or Wentai
Cutters 10 pieces with diameter of 6 and 12.7
Oiling system manually oiling
interface USB
inverter Fuling
machine weight 650KG

3.machine parts of    MDF,double color plate,PVC,Acrylic advertising engraving machine


 MDF,double color plate,PVC,Acrylic advertising engraving machine
4.Applicable industry and material of     MDF,double color plate,PVC,Acrylic advertising engraving machine  :
MDF,double color plate,PVC,Acrylic advertising engraving machine     is widely used in processing and engraving on color plate,PVC plate,acrylic,MDF plate and so on advertising industry.

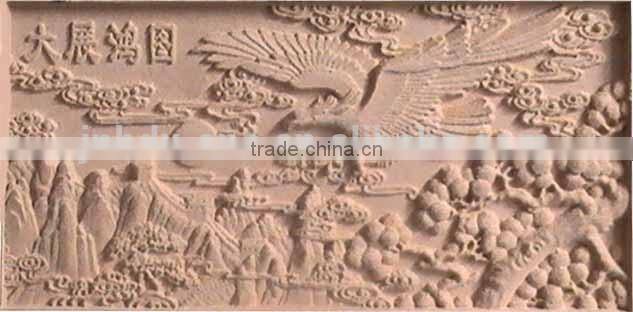

5.Samples of machine for the   MDF,double color plate,PVC,Acrylic advertising engraving machine
 MDF,double color plate,PVC,Acrylic advertising engraving machine  MDF,double color plate,PVC,Acrylic advertising engraving machine
MDF MDF
 MDF,double color plate,PVC,Acrylic advertising engraving machine  MDF,double color plate,PVC,Acrylic advertising engraving machine
double color plate PVC
 MDF,double color plate,PVC,Acrylic advertising engraving machine  MDF,double color plate,PVC,Acrylic advertising engraving machine
MDF Acrylic
6.FAQ of machine for the   MDF,double color plate,PVC,Acrylic advertising engraving machine
 MDF,double color plate,PVC,Acrylic advertising engraving machine
After-sales service of machine for the   neon sign equipment/advertising cnc router

1)one year free warranty under normal use and we give miantenance for 18 months



2) First class engineers give 24hours service on Internet and Telephone, free

 instructions and problem solving.



3) Free training to make sure you master  the operating of cnc router machine price .
processing of machine for the   MDF,double color plate,PVC,Acrylic advertising engraving machine
 MDF,double color plate,PVC,Acrylic advertising engraving machine
other machine of machine for the     MDF,double color plate,PVC,Acrylic advertising engraving machine
machine model Operation

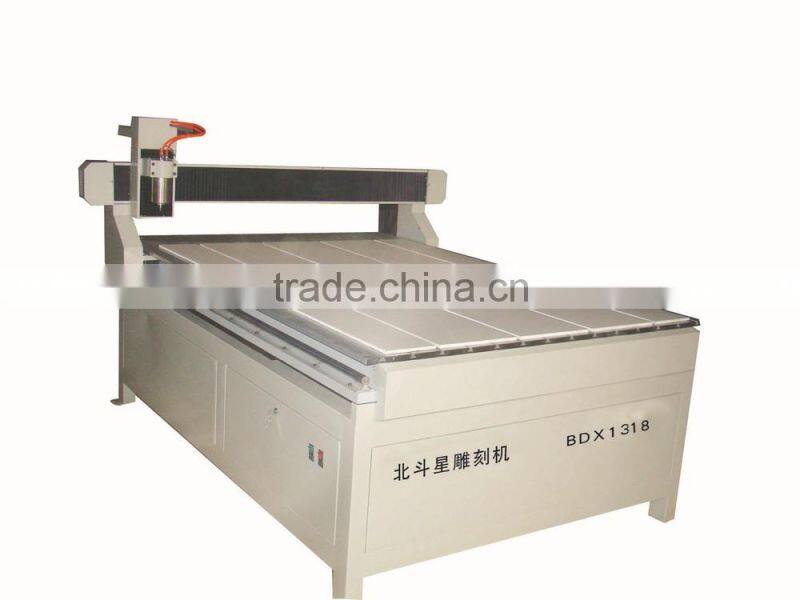

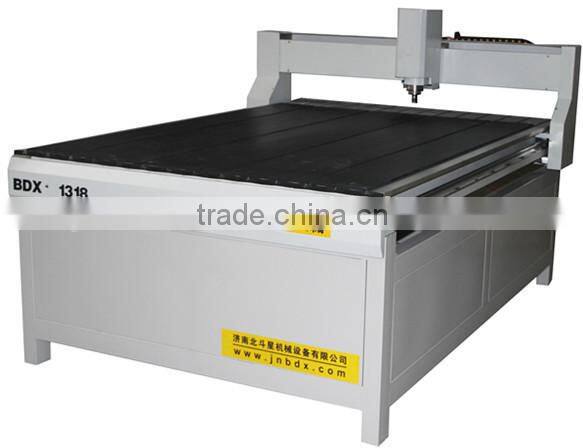

 MDF,double color plate,PVC,Acrylic advertising engraving machine                    BDX-1318 click here
 MDF,double color plate,PVC,Acrylic advertising engraving machine                  BDX-1218 click here
About us

       Jinan Big Dipper CNC machinery Co. Ltd is located at Jinan ,a famous spring city.Equipped with

advanced technology,competent software research staffs and many years’ experiences,now we are

 profession on engraver and cutting equipmets.We supply six series dozens styles machines,include

 wooden engraving machine,stone engraving machine,advertisement engraving machine,Plasma engraving

 machine,laser engraving machine,wooden CNC center and so on.





 MDF,double color plate,PVC,Acrylic advertising engraving machine

Our products covers widely

in woodworking industries,

advertisements gifts,crafts,

plexiglass,decoration,furniture,

leather clothes,stone relief and

other industries.

     Our principle:

Honesty casts brand,

quality wins the future.
Our factory



MDF,double color plate,PVC,Acrylic advertising engraving machine
