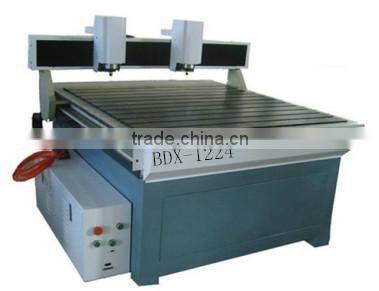

3d printer BDX-1224 automatic cutting machine China manufacturer
Machine parts of cutting machine:
Samples Show of cutting machine:
Specifications for cutting machine:
1)This cutting machine adopting imported linear rails guide ways and double rows four line slide blocks; the machine operates smoothly
and accurately bearing heavy load and long working life.
2)This cutting machine adopts steel seamless welding, it really rigid deformation, we installed steel plate at the back of work
table, high strength and rigidity is good, the machine can reach a ton or more load – bearing strength.
Application material for cutting machine:
Wood engraving cutting, organic glass, Acrylic, PVC, ABS, KT, wood, jewel, marble, aluminum-plastic and all kinds of materials’ surface working and cutting etc.
Technical parameter for cutting machine:
Model |
BDX-1224 |
X,Y working area |
1200*2400mm |
Z working area |
80mm |
Table size |
1350*2600mm |
Max travel speed |
3m-5m/min |
Max engraving speed |
2m-4m/min |
Resolution ratio |
0.005mm |
Reposition accuracy |
0.05mm |
Max feeding height |
110mm |
Command |
Gcode*.u00*.mmg*.plt |
Surroundings for software |
windows98/2000/xp |
Power(not include the spindle) |
2kw |
Power |
AC220V/50Hz |
Main axle power rate |
1.5kw |
Main axle rotating speed |
0-24000rpm/min |
Work mode |
stepper |
Machine weight |
500kg |
More products about cutting machine:
After-sale service about our cutting machine:
1) One year free warranty under normal use and we give maintenance for l8 months.
2) First class engineers give 24hours service on Internet and Telephone, free instructions and
problem solving.
3) Free training to make sure you master the operating of cnc router.
