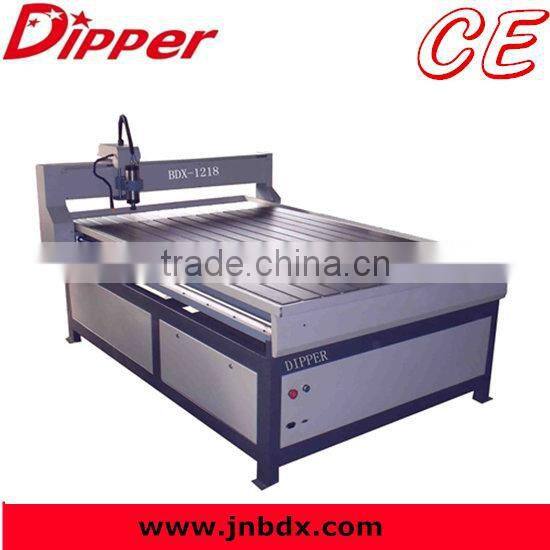

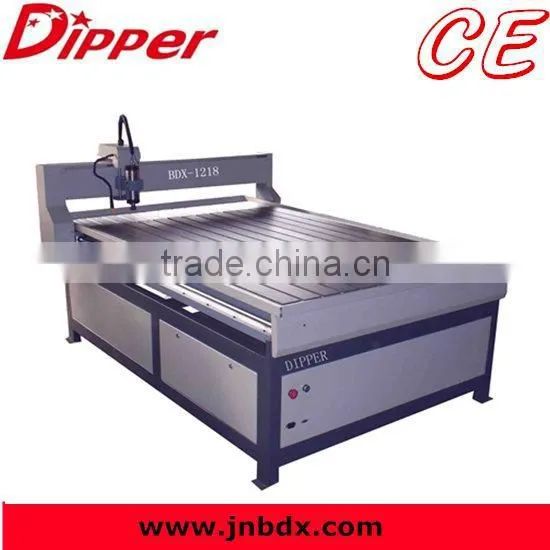

Cheap Price High Quality Advertising Engraving Machine

Name: Cheap Price High Quality Advertising Engraving Machine
Brand: Dipper
Availability: InStock

FOB Price

US$ 1,000 - 10,000 / Set

1 Set(Min. Order)

Port Qingdao tianjin shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Place of Origin	Shandong, China	Brand Name	Dipper
Model Number	BDX-1218	Voltage	AC220V/50/60Hz,1PH
Power(W)	1.5KW	Dimension(LWH)	120018001200mm
Weight	390KG	Certification	CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

cheap price high quality advertising engraving machine
1.CE,ISO standard
2:water cooling spindle
3:stepper driver and motor

cheap price high quality advertising engraving machine

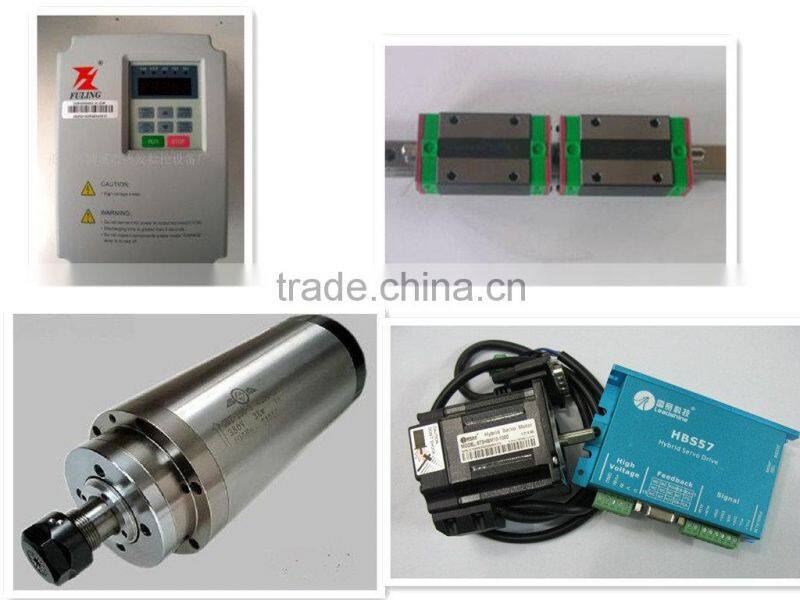

Machine parts of cnc cutting machine:

Samples Show of cnc cutting machine:

Specifications for cnc cutting machine:

1)Adopting imported linear rails guide ways and double rows four line slide blocks; the machine operates smoothly

and accurately bearing heavy load and long working life.

2)The machine adopts steel seamless welding, it really rigid deformation, we installed steel plate at the back of work

table, high strength and rigidity is good, the machine can reach a ton or more load – bearing strength.

Application material for cnc cutting machine:

Wood engraving cutting, organic glass, Acrylic, PVC, ABS, KT, wood, jewel, marble, aluminum-plastic and all kinds of materials’ surface working and cutting etc.

Technical parameter for cnc cutting machine:

NO.	Description	Parameter
1	X,Y,Z Working Area	125012501500mm
2	Table Size	1250*1250mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Positioning Accuracy	±0.05mm
5	Lathe Structure	Welded Structure
6	X, Y Structure	Taiwan TBI Ball Screw Transmission
7	Z Structure	Taiwan TBI Ball Screw Transmission
8	Max. Consume power	6.5Kw
9	Max. Rapid Travel Rate	10000mm/min
10	Max. Working Speed	6000mm/min
11	Spindle Power Motor	1.5 KW Chinese water-cooling spindle
12	Spindle Speed	0-24000RPM
13	Working Mode	Stepper
14	Working Voltage	AC220V/50/60Hz
15	Command	G Code, uoo, mmg, *plt
16	Operating System	Nc-studio control System
17	Interface	USB
18	Flash Memory	128M
19	Collet	ER11
20	X,Y Working Delicacy	<0.01mm
21	Software	Type3 software, Wentai software, Artcam software
22	Running Circumstance	Temperature: 0°C~45°C Relative humidity: 30%~75%
23	Packing Size	195017301570mm/3090X1800X1570mm
24	Net Weight	390KG
25	Gross Weight	425KG
26	Optional	Air-cooling spindle Servo motor Water tank Vacuum table Gear transmission(Y axis two motors drive)
