Specifications
1.CE2:water cooling spindle
3:stepper driver
the nest style cheap hot sale China jinan professional manufacturer with CE furniture economical wood CNC router

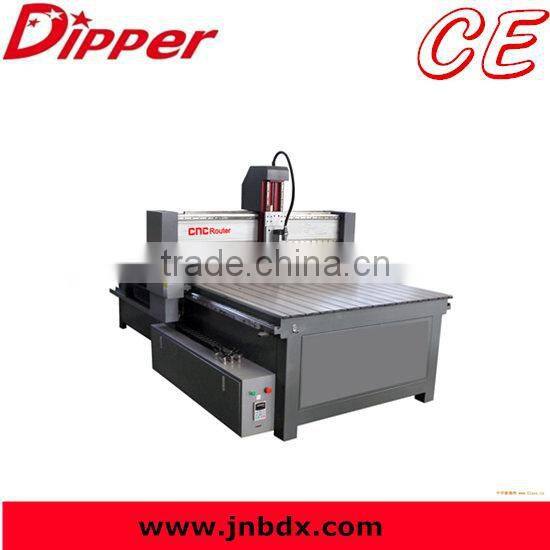

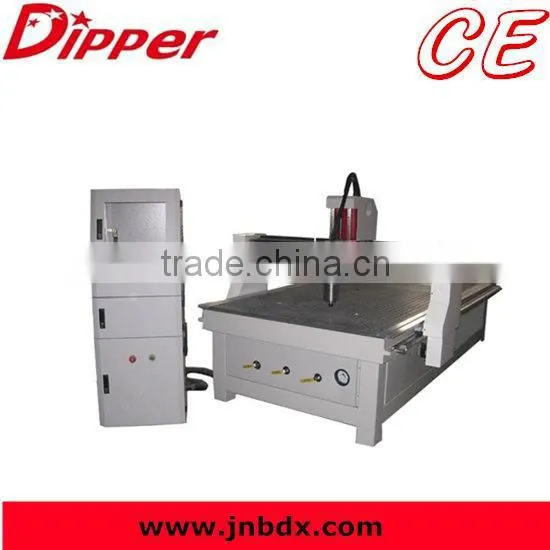

Machine parts of cnc cutting machine:
Samples Show of cnc cutting machine:
Specifications for cnc cutting machine:
1)Adopting imported linear rails guide ways and double rows four line slide blocks; the machine operates smoothly
and accurately bearing heavy load and long working life.
2)The machine adopts steel seamless welding, it really rigid deformation, we installed steel plate at the back of work
table, high strength and rigidity is good, the machine can reach a ton or more load – bearing strength.
Application material for cnc cutting machine:
Wood engraving cutting, organic glass, Acrylic, PVC, ABS, KT, wood, jewel, marble, aluminum-plastic and all kinds of materials’ surface working and cutting etc.
Technical parameter for cnc cutting machine:
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300*2500*1500mm |
2 |
Table Size |
1350*2650mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Positioning Accuracy |
±0.05mm |
5 |
Lathe Structure |
Welded Structure |
6 |
X, Y Structure |
Taiwan TBI Ball Screw Transmission |
7 |
Z Structure |
Taiwan TBI Ball Screw Transmission |
8 |
Max. Consume power |
6.5Kw |
9 |
Max. Rapid Travel Rate |
10000mm/min |
10 |
Max. Working Speed |
6000mm/min |
11 |
Spindle Power Motor |
1.5 KW Chinese water-cooling spindle |
12 |
Spindle Speed |
0-24000RPM |
13 |
Working Mode |
Stepper |
14 |
Working Voltage |
AC220V/50/60Hz |
15 |
Command |
G Code, *uoo, *mmg, *plt |
16 |
Operating System |
Nc-studio control System |
17 |
Interface |
USB |
18 |
Flash Memory |
128M |
19 |
Collet |
ER11 |
20 |
X,Y Working Delicacy |
<0.01mm |
21 |
Software |
Type3 software, Wentai software, Artcam software |
22 |
Running Circumstance |
Temperature: 0°C~45°C |
23 |
Packing Size |
1450*2670*1570mm/3090X1800X1570mm |
24 |
Net Weight |
390KG |
25 |
Gross Weight |
425KG |
26 |
Optional |
Air-cooling spindle Servo motor Water tank Vacuum table Gear transmission(Y axis two motors drive) |
FAQ:
Our Factory:
If any more information,Pls feel free to contact with us.
Customer's affirmation is my greatest pursuit.
