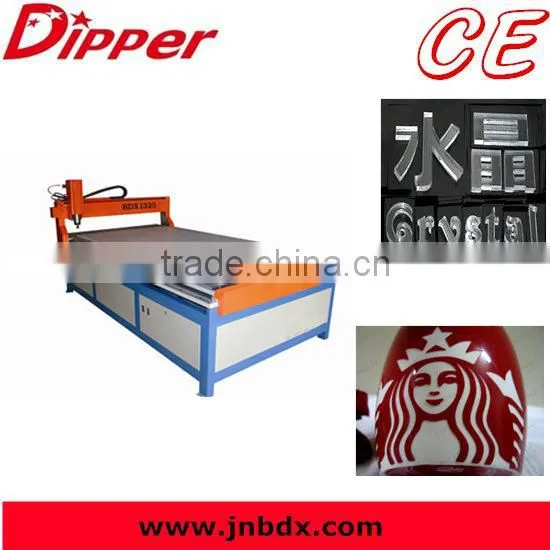

the newest advertising machine used for neon signs

NO.

Description

Parameter

1

X,Y,Z Working Area

1300*2500*1500mm

2

Table Size

1350*2650mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z Repositioning Positioning Accuracy

±0.05mm

5

Lathe Structure

Welded Structure

6

X, Y Structure

Taiwan TBI Ball Screw Transmission

7

Z Structure

Taiwan TBI Ball Screw Transmission

8

Max. Consume power

6.5Kw

9

Max. Rapid Travel Rate

10000mm/min

10

Max. Working Speed

6000mm/min

11

Spindle Power Motor

1.5 KW Chinese water-cooling spindle

12

Spindle Speed

0-24000RPM

13

Working Mode

Stepper

14

Working Voltage

AC220V/50/60Hz

15

Command

G Code, *uoo, *mmg, *plt

16

Operating System

Nc-studio control System

17

Interface

USB

18

Flash Memory

128M

19

Collet

ER11

20

X,Y Working Delicacy

<0.01mm

21

Software

Type3 software, Wentai software, Artcam software

22

Running Circumstance

Temperature: 0°C~45°C
Relative humidity: 30%~75%

23

Packing Size

1450*2670*1570mm/3090X1800X1570mm

24

Net Weight

390KG

25

Gross Weight

425KG

26

Optional

Air-cooling spindle

Servo motor

Water tank

Vacuum table

Gear transmission(Y axis two motors drive)
