High Effiency TUOER-B-II type Industrial Pulse Jet Cartridge Flour Toner Catching System

Features of TUOER-B-II type Industrial Pulse Jet Cartridge Toner Catching System

• Filter cartridge submicron filtering, easy for replacement
• Automatic online pulse dust removing
• Easy in operation and maintenance
• Multiple tube connection locations for air inlets and outlets
• Design of use once installed
• Filter cylinder being more pressure-resistant and having longer service life
• Larger filtering area

Operating Principle of TUOER-B-II type Industrial Pulse Jet Cartridge Flour Toner Catching System

           Normal operation: Put the unit in a separate dust removal room,allocate corresponding air hose and dust shield connect with dust collector. Plug in the power,switch on the fan key, dust yair enters into case bosy from dust source through dust hood, air hose and air inlet. Because of the aircurrent expands and the flow rate reduces suddenly,big grain dust separates from dusty air under the effect of its own gravity and settles down to the dust drawer, other small grain dust stays outside filter cartridge due to the effect of filtering,colliding,hooking,static electricity. The purified air is discharged from the fan to air outlet through the aboved anechoic chamber.The purified air from the unit can be discharged into the room for recycling without ventilation heat(refrigeration capacity)loss. After stoping,press the dedusting system running button,30 seconds later,dust removing done,finished dust-cleaning recovery task.

         Dust cleaning operation: Adopt online dust removing mothod,no halting during dedusting process,the working time and sequence of solenoid value are controlled through the pulse control controller, timing back blowing on the filter cartridges.

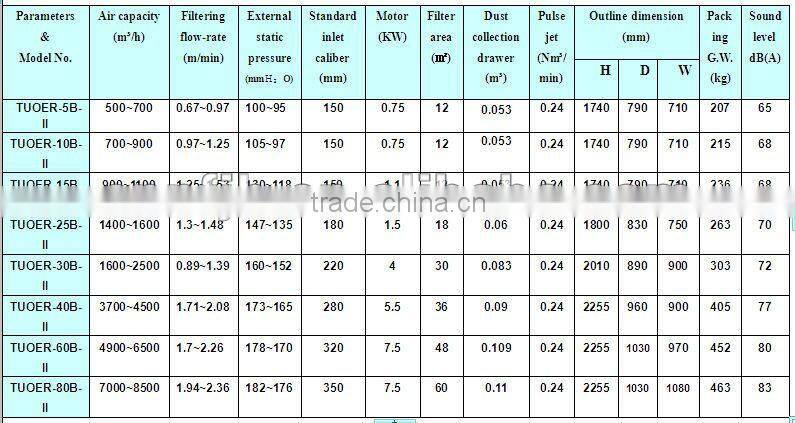

 Technical Parameters of TUOER-B-II type Industrial Pulse Jet Cartridge Flour Toner Catching System

 MARKS

1.Packing wooden cases conforming to rules for the inspection of transport packaging for export commodities-wooden box

2.Equipment dimension conforming to customer requirements

3.Equipment power can be designed according to local requirements in the user area

4.Data in the above table is got under standard atmospheric pressure at air flow of 20

5.Product patent number:200820166337.X

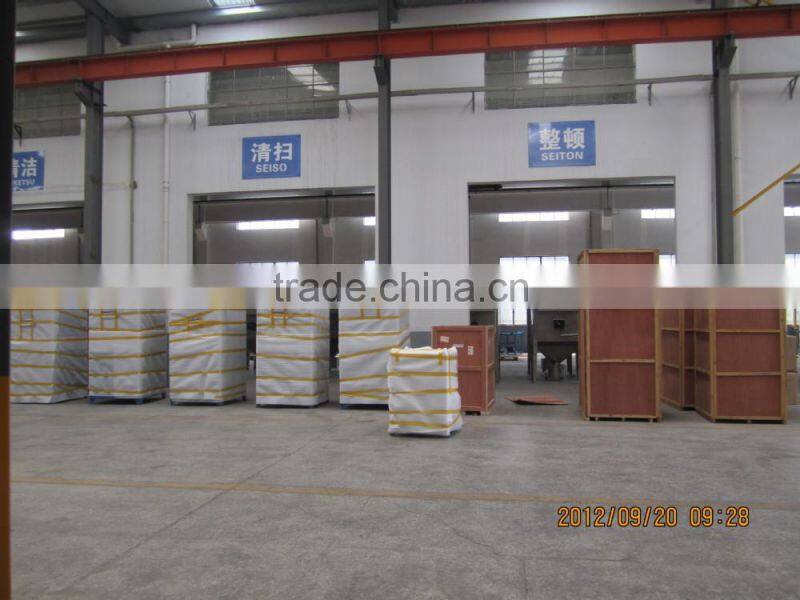

Packaging

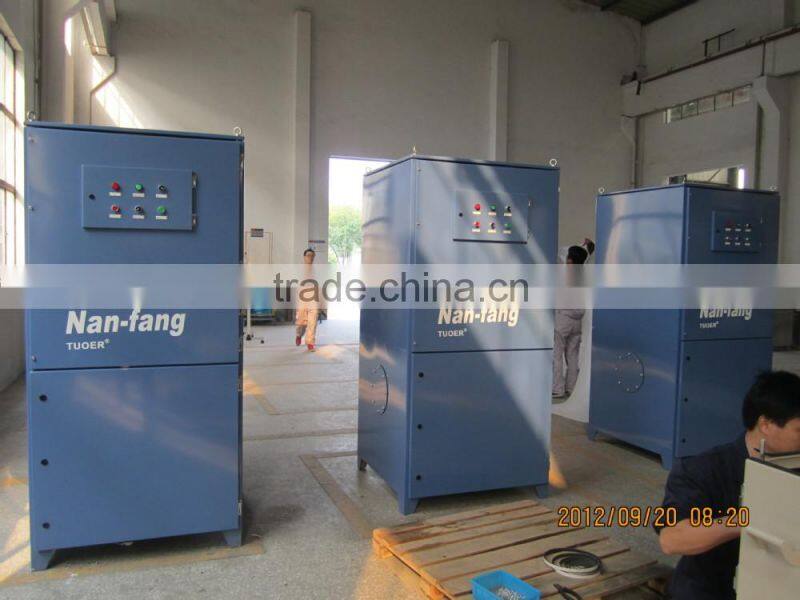

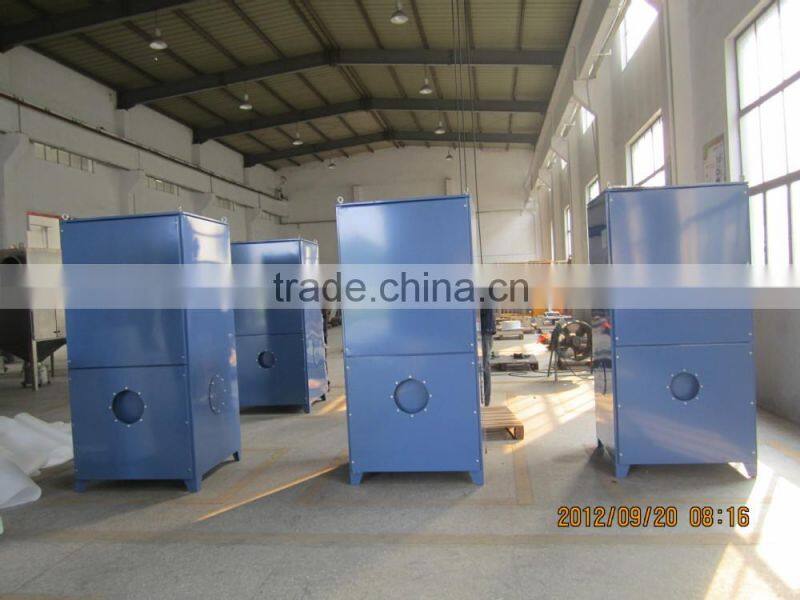

Factory spot

Contact way
