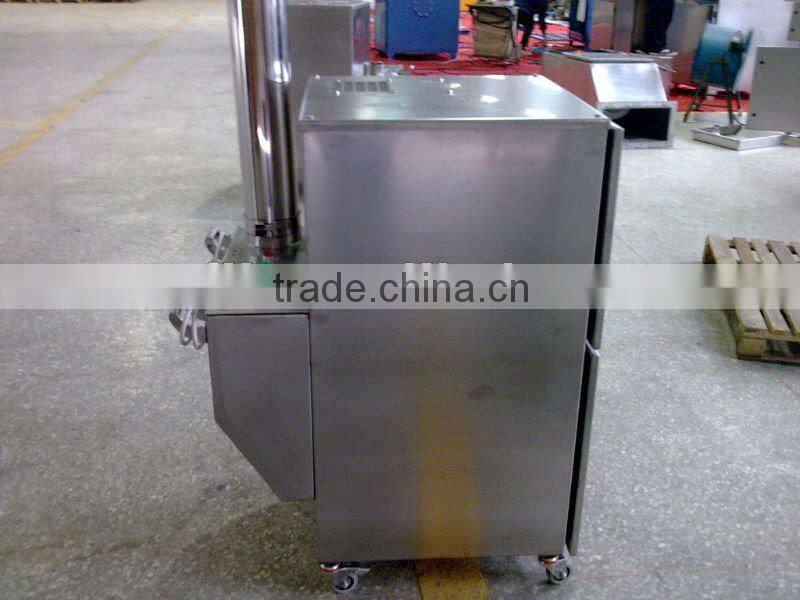

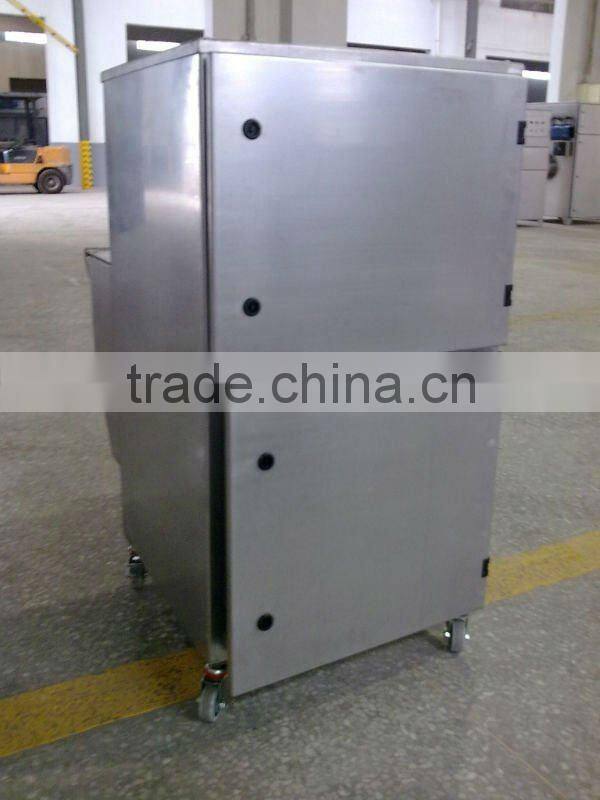

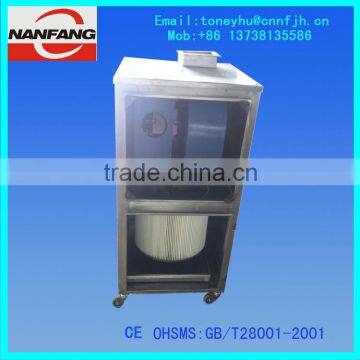

TUOER-12/C Industrial Cartridge Shaking Mobile Dust Collector

 Features

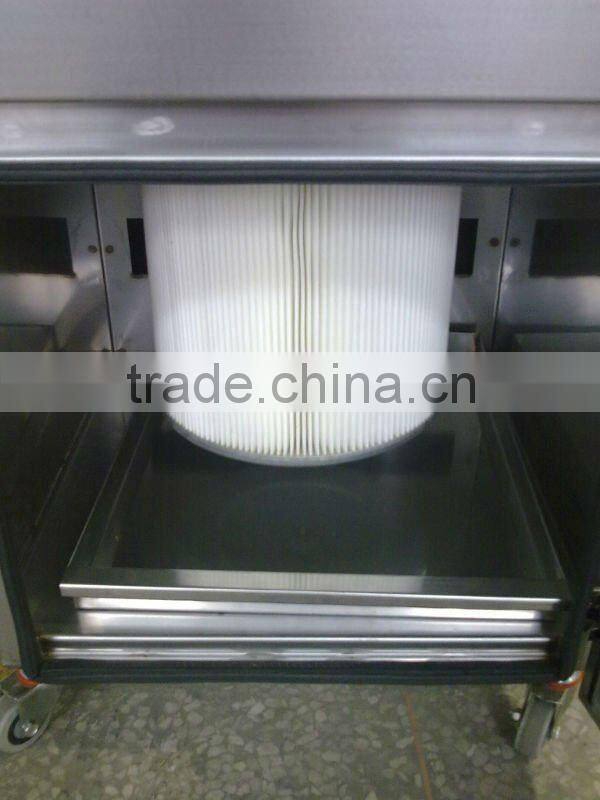

    1.Submicron cylinder filtering, easy for replacement

    2.Automatic off-line dust removing

    3.Easy in operation and maintenance

    4.Multiple tube connection locations for air inlets and outlets

    5.Designed on load-and-go basis

    6.Easy for transportation

Application scope

    1.Application environment: temperature: -10°C~+55°C, relative air humidity no higher than 85%, without compressed air source;

    2.Application industry: chemistry industry, pharmaceutical industry, food processing, metal processing, compound material, electronics, building materials, electrostatic coating and other fine air particles.

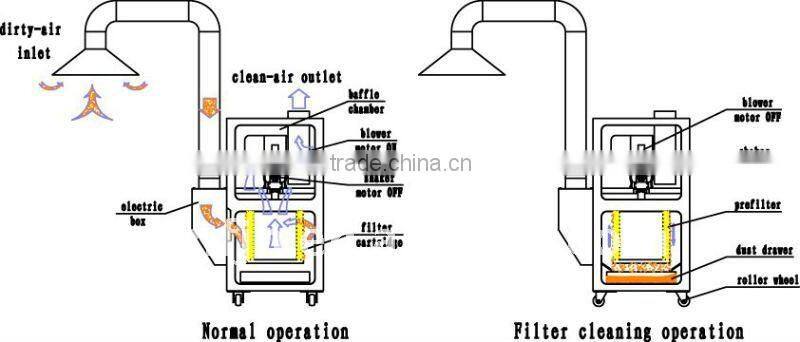

Operating principle

    Normal operation: switch on the power, turn on the fan, dust air enters the cylinder from dust source through suspended hood, air hose and air inlet. Flow rate drops suddenly due to air stream soaring; big grain dust separates from dust air and then sink into dust storage tank, other small grain dust remains at the outer wall of filter element under the influence of filtering, colliding, hooking and static electricity. Purified air is discharged from the fan to air outlet via the anechoic chamber above.

    Dust cleaning operation: dust cleaning goes on discontinuously, high-frequency vibration will enable the filter to regenerate after the fan shuts down.

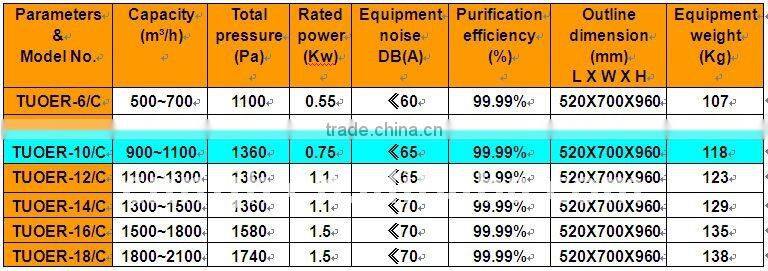

NANFANG brand TUOER-10/C and this series cartridge shaking dust collector technical parameters:

• Production process

  1. CNC Laser Cutting:





   2. Bending:





   3. Welding:





   4. Painting:





   5. Assembling:

•



   6. Testing:





  7. Packing:





  8.Loading:
