polyurethane cold room refrigerator and freezers with compressor
Specificaiton of cold room refrigerator and freezers
| cold room model | cold room |
| Cold room temperature | -5~+5degree C or -18~-20degree C |
| Cold room capacity | 30cbm |
| External size | 4000mm*3000mm*2500mm |
| Internal size | 3800mm*2800mm*2400mm |
| Condensing unit | Copeland , air cooled, refrigerant R404a |
| Voltage | 110V/220V/380V/400V |
| Usage | fresh keeping, frozen storage ,quick freezer etc. |
Features of cold room refrigerator and freezers

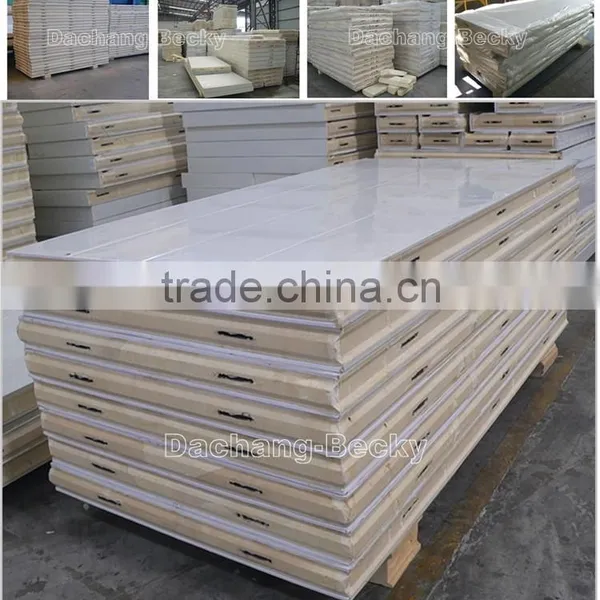

1)Environmentally friendly foaming,polyurethane panel thickness:100mm,density about 43kg/m3,with gasket. Panels are male(convex groove) and female (concave groove) type,cam locks preburried inside the panels,use a key to fasten.
2)white color painted galvanized steel finish
3)double handles cold room convex door with safety knob.
4)Copeland hermetic condensing unit,air cooled, R404a, environmentally friendly
5)Necessary parts are included.

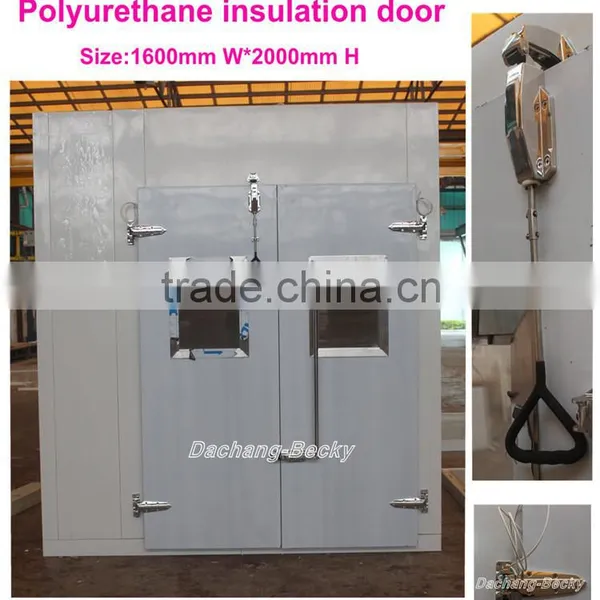

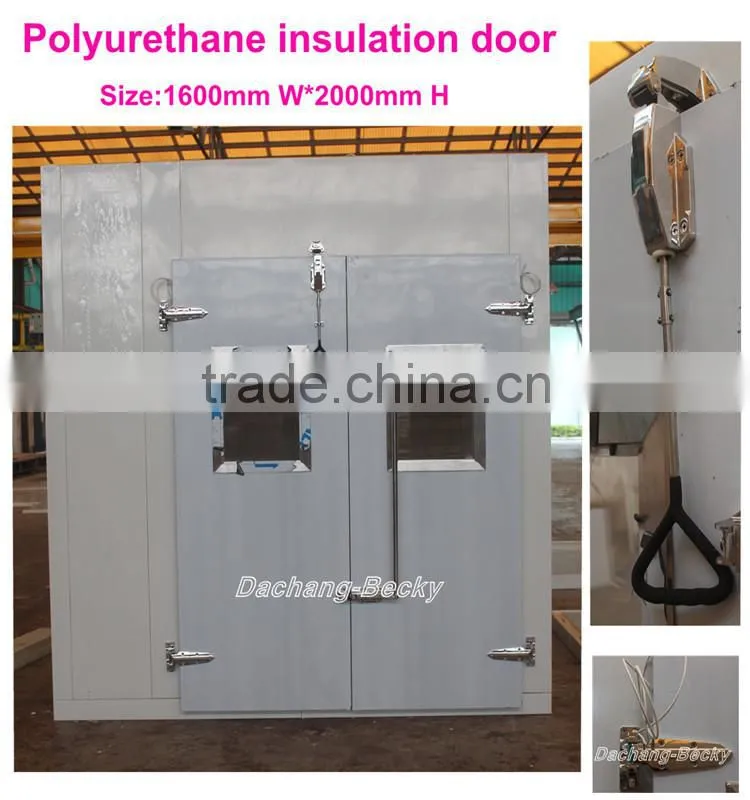

Double handles cold room convex door
1.cold room door size:1600mm W*2000mm H
2.plyurethane insulation thick 100mm, painted galvanized steel finish
3.Taiwan hinges, double handles, lock with key,safety knob at the back for emergency opening
4.glass viewer:300mm W*400mm H
5.heaters for defrost, with rubber around the door for better sealing performance

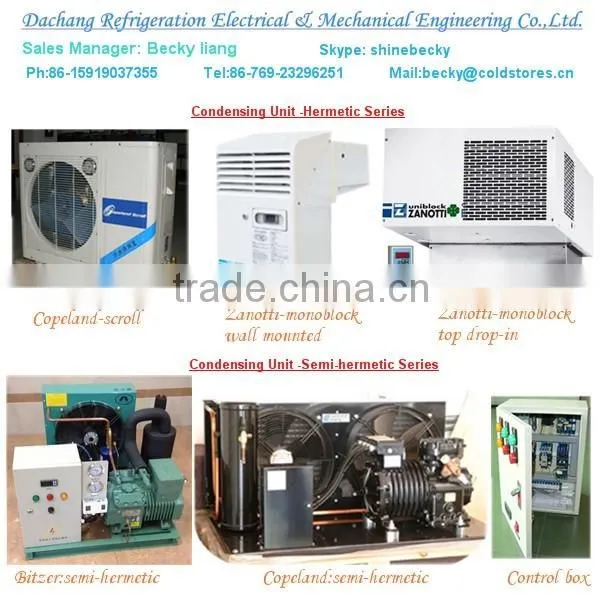

condensing unit of cold room refrigerator and freezers
--outside unit: usually we choose Bitzer or Copeland or Danfoss Compressor
--hermetic/ semi-hermetic/ monoblock
--air cooled
--refrigerant R404a
Packaging and loading of cold room refrigerator and freezers
1. cold room panel and door are packed with bubble paper
2. cold room condensing unit and evaporator are packed in plywood case
Dachang company: the cold room manufacturer, customize all kinds of cold rooms and freezer rooms base on client's requirement to meet client's actual need!!
Dimension |
Length (m) *Width (m)*Height (m) |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-30~+5 degree, optional |
Purpose of cold room |
fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
**High temperature cold room: +5C ~ -5C, storage of vegetable,fruits, egg,beverage,wine,food fresh keeping etc.
**Mid-temperature cold room: -10C~ -18C, storage of meat,seafood etc.
**Low temperature cold room: -23 C~ -28C,storage of ice cream,frozen meat, frozen fish etc.
** ultralow temperature cold room: lower than -30C,used for quick freezing,lab, medical room etc.
Large capacity cold room plants
DACHANG company provide the pefect solutions to the modular cold storage room for 24years!
DACHANG company attend the related exhibitions every year.
